Husqvarna LTH 18538 (917.289600) (2010-05) Ride Mower

Model: LTH 18538 (917.289600) (2010-05)

Back To Assemblies

Save Part Not Listed?
product name

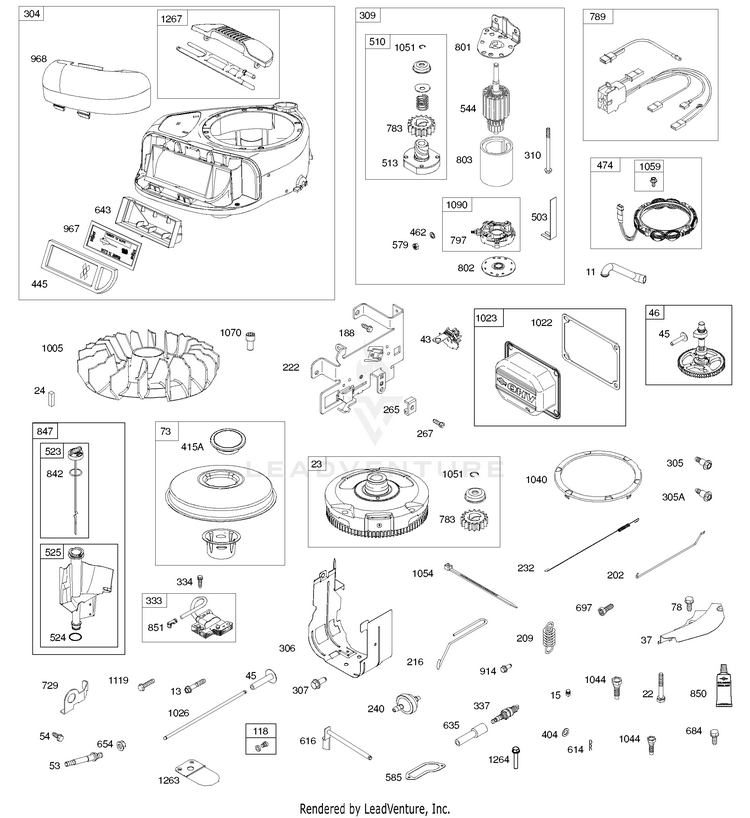

Engine Image 2

...
...
1
Cylinder Assembly HUS-796010
...
2
Bushing/SealKit (Magneto Side) HUS-399265
...
3
Seal-Oil (Magneto Side) Engine Gasket Set Key No. 358 HUS-391086S
...
4
Sump-Engine HUS-697106
...
5
Head-Cylinder HUS-796025
...
7
Gasket-Cylinder Head Engine Gasket Set Key No. 358; Valve Gasket Set Key No. 1095 HUS-796584
...
11
Tube-Breather HUS-794683
...
12
Gasket-Crankcase HUS-697110
...
13
Screw (Cylinder Head) Engine Gasket Set Key No. 358 HUS-793988
...
15
Plug-Oil Drain HUS-690946
...
16
Crankshaft HUS-797579
...
20
Seal-Oil (PTO Side) Engine Gasket Set Key No. 358 HUS-795387
...
22
Screw (Crankcase Cover/Sump) HUS-692125
...
23
Flywheel HUS-698281
...
24
Key-Flywheel HUS-222698S
...
25
Piston Assembly (Standard) HUS-796172
...
xx
Piston Assembly (.020" Oversize) HUS-796173
...
26
Ring Set (Standard) HUS-791936
...
xx
Ring Set (.020" Oversize) HUS-792649
...
27
Lock-Piston Pin HUS-698469
...
28
Pin-Piston HUS-796007
...
29
Rod-Connecting HUS-794122
...
32
Screw (Connecting Rod) HUS-791118
...
33
Valve-Exhaust HUS-792868
...
34
Valve-Intake HUS-791935
...
35
Spring-Valve (Intake) HUS-691279
...
36
Spring-Valve (Exhaust) HUS-691279
...
37
Guard-Flywheel HUS-697352
...
42
Keeper-Valve HUS-499586
...
43
Slinger-Governor/Oil HUS-691968
...
45
Tappet-Valve HUS-690564
...
46
Gear-Cam HUS-793880
...
48
Short Block HUS-697761
...
50
Manifold-Intake HUS-796180
...
51
Gasket-Intake Engine Gasket Set Key No. 358; Valve Gasket Set Key No. 1095; Carburetor Overhaul Kit Key No. 121 HUS-692137
...
51A
Gasket-Intake HUS-796081
...
53
Stud (Carburetor) HUS-690227
...
54
Screw (Intake Manifold) HUS-691148
...
78
Screw (Flywheel Guard) HUS-691003
...
94
Kit-Idle Mixture HUS-793610
...
95
Screw (Throttle Valve) HUS-690718
...
98
Kit-Idle Speed HUS-695408
...
104
Pin-Float Hinge Carburetor Overhaul Kit Key No. 121 HUS-694918
...
105
Valve-Float Needle Carburetor Overhaul Kit Key No. 121 HUS-696136
...
108
Valve-Choke HUS-695419
...
117
Jet-Main (Standard) HUS-843099
...
118
Jet-Main (High Altitude) HUS-790890
...
121
Kit-Carburetor Overhaul HUS-796184
...
125
Carburetor HUS-796109
...
127
Plug-Welch Carburetor Overhaul Kit Key No. 121 HUS-690727
...
130
Valve-Throttle HUS-699500
...
131
Kit-Throttle Shaft HUS-699501
...
133
Float-Carburetor HUS-694914
...
135
Tube-Fuel Transfer HUS-698780
...
137
Gasket-Float Bowl Carburetor Overhaul Kit Key No. 121 HUS-698781
...
141
Kit-Choke Shaft HUS-792777
...
146
Key-Timing HUS-691639
...
186
Connector-Hose(Intak Manifold) HUS-794873
...
187
Line-Fuel (Formed) (Cut to Required Length) HUS-791805
...
188
Screw (Control Bracket) HUS-691693
...
192
Adjuster-Rocker Arm HUS-691986
...
202
Link-Mechanical Governor HUS-691841
...
209
Spring-Governor (Green) HUS-692208
...
216
Link-Choke HUS-691840
...
217
Spring-Choke Return HUS-695409
...
222
Bracket-Control HUS-694042
...
227
Lever-Governor Control HUS-691374
...
232
Spring-Governor Link HUS-691842
...
238
Cap-Valve HUS-691843
...
240
Filter-Fuel HUS-394358S
...
265
Clamp-Casing HUS-691024
...
267
Screw (Casing Clamp) HUS-794904
...
276
Washer-Sealing HUS-695410
...
304
Blower Housing HUS-796416
...
305
Screw (Blower Housing) (Long) HUS-697102
...
305A
Screw (Blower Housing) (Short) HUS-793376
...
306
Shield-Cylinder HUS-796006
...
307
Screw (Cylinder Shield) HUS-691003
...
309
Motor-Starter HUS-693551
...
310
Screw (Starter Motor) HUS-690323
...
324
Screen/Cup Assembly HUS-796308
...
333
Armature-Magneto HUS-795315
...
334
Screw (Magneto Armature) HUS-691061
...
337
Plug-Spark HUS-491055S
...
358
Gasket Set-Engine HUS-796187
...
404
Washer (Governor Crank) HUS-691691
...
415
Plug (Intake Manifold) HUS-690283
...
415A
Plug (Cover/Retainer) HUS-794129
...
431
Elbow-Intake HUS-697122
...
445
Filter-Air Cleaner Cartridge HUS-698083
...
462
Washer (Starter Cable) HUS-691261
...
474
Alternator HUS-696459
...
503
Strap-Starter HUS-691532
...
505
Nut (Governor Control Lever) HUS-691251
...
510
Drive-Starter HUS-693699
...
513
Clutch-Drive HUS-692024
...
523
Dipstick HUS-699908
...
524
Seal-Dipstick Tube Engine Gasket Set Key No. 358 HUS-691032
...
525
Tube-Dipstick HUS-697184
...
552
Bushing-Governor Crank HUS-697144
...
562
Screw (Governor Control Lever) HUS-691119
...
579
Nut (Starter Cable) HUS-691029
...
584
Cover-Breather Passage (Use with Liquid Sealant, Reference 850) HUS-794682
...
585
Gasket-Breather Passage Engine Gasket Set Key No. 358 HUS-697109
...
601
Hose-Clamp (Green) HUS-791850
...
614
Pin-Cotter HUS-691620
...
616
Crank-Governor HUS-692012
...
617
Seal-O Ring (Intake Manifold) (Red) Engine Gasket Set Key No. 358 Carburetor Overhaul Kit Key No. 121 HUS-692138
...
633
Seal-Choke/Throttle Shaft (Choke Shaft) HUS-699813
...
634
Spring/Seal Assembly (Choke Shaft) Carburetor Overhaul Kit Key No. 121 HUS-698779
...
635
Boot-Spark Plug HUS-691909
...
643
Retainer-Air Filter HUS-698401
...
654
Nut (Carburetor) HUS-690958
...
684
Screw (Breather Assembly) HUS-697157
...
691
Seal-Governor Shaft Engine Gasket Set Key No. 358 HUS-692407
...
718
Pin-Locating HUS-690959
...
724
Link-Starter Switch HUS-697478
...
729
Clip-Wire HUS-691224
...
741
Gear-Timing HUS-697128
...
757
Link-Counterweight HUS-793242
...
758
Counterweight HUS-793763
...
759
Pin-Counterweight HUS-697392
...
783
Gear-Pinion HUS-693713
...
789
Harness-Wiring HUS-698329
...
797
Nut (Brush Retainer) HUS-693167
...
801
Cap-Drive HUS-691283
...
802
Cap-End HUS-691286
...
830
Stud-Rocker Arm HUS-691095
...
842
Seal-O Ring (Dipstick Tube) Engine Gasket Set Key No. 358 HUS-691031
...
847
Dipstick/Tube Assembly HUS-790442
...
850
Sealant-Liquid (Liquid Sealant is interchangeable with Breather Passage Gasket and/or Rocker Cover Gasket) HUS-100106
...
851
Terminal-Spark Plug HUS-692424
...
868
Seal-Valve Valve Gasket Set Key No. 1095; Engine Gasket Set Key No. 358 HUS-690968
...
883
Gasket-Exhaust Engine Gasket Set Key No. 358 HUS-692236
...
914
Screw (Rocker Cover) HUS-697551
...
947
Solenoid-Fuel HUS-699915
...
967
Filter-Pre Cleaner HUS-697015
...
968
Cover-Air Cleaner HUS-698403
...
975
Bowl-Fuel HUS-699502
...
987
Seal-Throttle Shaft Carburetor Overhaul Kit Key No. 121 HUS-698777
...
1005
Fan-Flywheel HUS-796083
...
1022
Gasket-Rocker Cover Valve Gasket Set Key No. 1095; Engine Gasket Set Key No. 358 HUS-272475S
...
1023
Cover-Rocker HUS-797421
...
1026
Rod-Push (Intake) HUS-692003
...
xx
Rod-Push (Exhaust) HUS-692011
...
1029
Arm-Rocker HUS-691751
...
1034
Guide-Push Rod HUS-690822
...
1040
Plate-Trim HUS-698368
...
1044
Screw (Flywheel) HUS-698139
...
1051
Ring-Retaining HUS-691265
...
1054
Tie-Cable HUS-280275
...
1059
Kit-Screw/Washer HUS-698516
...
1070
Screw (Flywheel Fan) HUS-690363
...
1090
Retainer-Brush HUS-691293
...
1091
Cap-Limiter HUS-691333
...
1095
Gasket Set-Valve HUS-794152
...
1119
Screw (Alternator) HUS-691183
...
1127
Screw (Float Bowl) HUS-695407
...
1263
Reed-Breather HUS-697124
...
1264
Screw (Breather Reed) HUS-697104
...
1266
Seal-O Ring (Intake Elbow) (Red) Engine Gasket Set Key No. 358; Carburetor Overhaul Kit Key No. 121 HUS-691917
...
1266A
Seal-O Ring (Intake Elbow) Carburetor Overhaul Kit Key No. 121 HUS-697123
...
1267
Latch-Blower Housing HUS-697419
...
1270
Plug-AVS Counterweight HUS-793243
...
1329
Replacement Engine HUS-31N707-1374-B1
...
1330
Repair Manual HUS-272147
