Husqvarna LTH 1542 (96013000900) (2005-10) Ride Mower

Model: LTH 1542 (96013000900) (2005-10)

Back To Assemblies

Save Part Not Listed?
product name

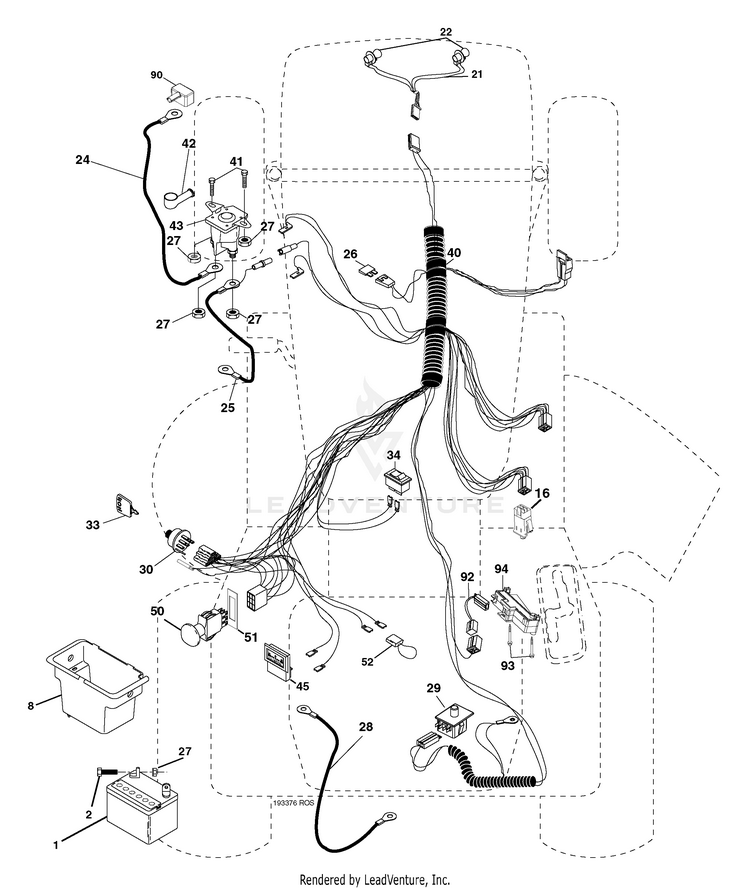

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
BOX.BATTERY.FENDER HUS-532176689
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS.W/LIGHT SOCKET HUS-532175688
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE BATTERY HUS-532146147
...
26
FUSE 20AMP HUS-532175158
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE T HUS-532004207
...
29
SWITCH.SEAT.DP W/RAMPS HUS-532192749
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
33
KEY MLD GEN DELTA HUS-532140401
...
34
SWITCH LT HUS-532110712
...
40
HARNESS.IGN.ELECT.STL HUS-532193376
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
45
AMMETER HUS-532122822
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
51
FRAME RETAINING RING HUS-532140405
...
52
WIRE PROTECTION LOOP HUS-532141940
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
92
HARNESS.PIGTAIL.REVERSE.SWITCH HUS-532193465
...
93
Bolts HUS-596039601
...
94
MODULE.REVERSE.ROS HUS-532191834
