Husqvarna LTH 145 (954140006D) (1998-07) Ride Mower

Model: LTH 145 (954140006D) (1998-07)

Back To Assemblies

Save Part Not Listed?
product name

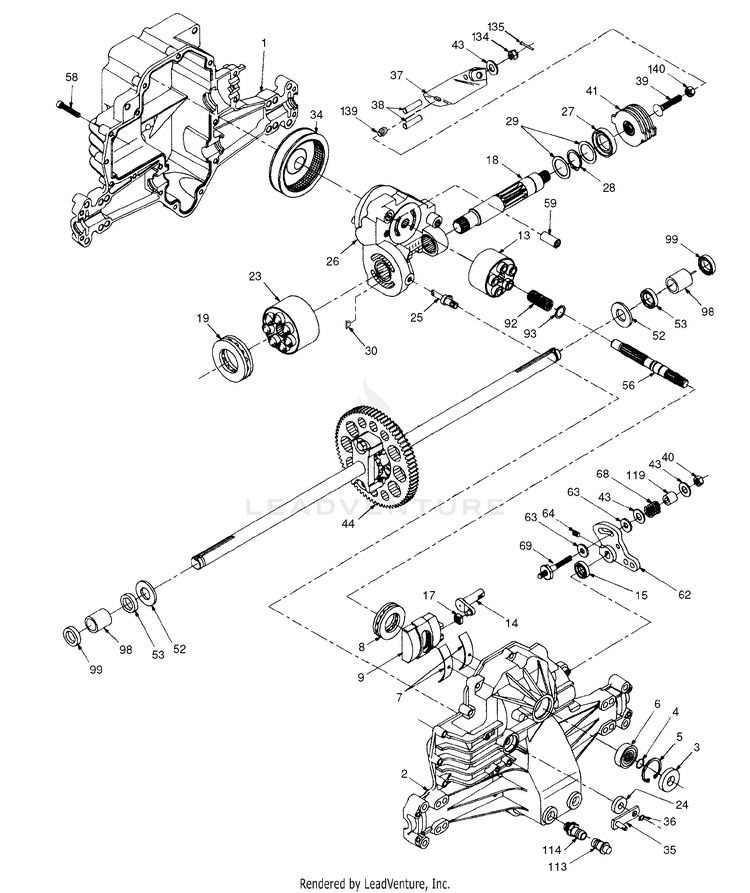

Hydro Gear Transaxle

...
...
1
HOUSING, LOWER HUS-532142986
...
2
HOUSING.UPPER.70122.HYDRO-GEAR HUS-532142987
...
3
SEAL.LIP.H-G.(9008000-0128) HUS-532142932
...
4
RING RETAINING 2003016 HUS-532142928
...
5
RING.RETAINING.(2003052) HUS-532142933
...
6
BALL BEARING HUS-532142934
...
7
CRADLE BEARING HUS-532142935
...
8
BEARING, THRUST 50551 HUS-532150771
...
9
SWASHPLATE (2003087) HUS-532142937
...
13
KIT CYLINDER #70331 HUS-532169898
...
14
TRUNNION ARM HUS-532142939
...
15
LIP SEAL HUS-532142940
...
17
SLOT GUIDE HUS-532142941
...
18
SHAFT, MOTOR HUS-532150772
...
19
BEARING, THRUST 50552 HUS-532150773
...
23
BLOCK, CYL ASSY HUS-532142944
...
24
LIP SEAL HUS-532142945
...
25
BYPASS ACTUATOR HUS-532142946
...
26
CENTER SECTION 70250 HUS-532169051
...
27
LIP SEAL HUS-532142948
...
28
RETAINING RING HUS-532142949
...
29
WASHER HUS-532142950
...
30
PLATE HUS-532150787
...
34
FILTER. 50990 HUS-532169893
...
35
BYPASS ARM HUS-532142952
...
36
RETAINING RING 44870 HUS-532142953
...
37
ARM BRAKE ACTUATO HUS-532122660
...
38
ACTUATING PIN 44891 HUS-532142955
...
39
BOLT 5/16-24 X 1-3/4 HUS-532150777
...
40
LOCKNUT, HEX 5/16-24 HUS-532150778
...
41
BRAKE ROTOR 70135 HYDRO-GEAR HUS-532142958
...
43
WASHER .34X.88X.06.44130 HUS-532142884
...
44
DIFFERENTIAL ASSEMBLY HUS-532142990
...
52
WASHER.HYDRO-GEAR 44875 HUS-532142991
...
53
SEAL.HYDRO.53901 HUS-532142961
...
56
SHAFT.INPUT.50005 HUS-532142963
...
58
BOLT #44876 HUS-532142964
...
59
PIN HUS-532142965
...
62
CONTROL ARM 50254 HUS-532142966
...
63
DAMPENER PUCK HUS-532142967
...
64
SCREW.SET.50018 HUS-532142920
...
68
SPRING HELICAL COMP 50277 HUS-532142969
...
69
STUD 5/16-24 50284 HUS-532144610
...
92
SPRING 2003014 HUS-532142977
...
93
WASHER HUS-532142978
...
98
BEARING SLV 50137 HUS-532142993
...
99
SEAL LIP.75X1X.158 50941 HUS-532169054
...
113
VENT CAP 70109 HUS-532142578
...
114
O-RING KIT 70110 HUS-532142918
...
119
SPACER .32X.59X.50 50278 HUS-584282801
...
134
NUT CASTLE 5/16-24 PL 44142 HUS-584281701
...
135
PIN COTTER HUS-532122656
...
139
SPRING, COMPRESSION 50431 HUS-532150775
...
140
NUT, HEX 5/16-24 HUS-532150776
