Husqvarna LTH 140 (954001192A) (1995-01) Ride Mower

Model: LTH 140 (954001192A) (1995-01)

Back To Assemblies

Save Part Not Listed?
product name

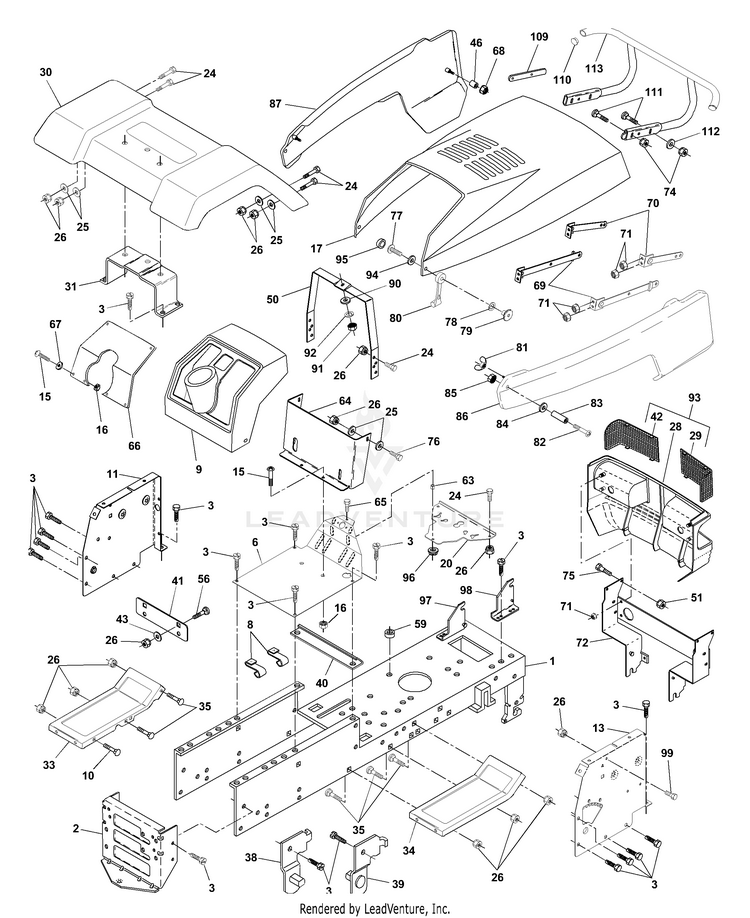

Chassis And Enclosures

...
...
1
CHASSIS WELD 11GA.95 HUS-532145501
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
6
SADDLE LT HUS-532125453
...
8
CLIP,INSULATOR HUS-532126471
...
9
DASH HUS-532140452
...
10
Bolts HUS-596728201
...
11
PANEL DASH LH HUS-532136967
...
13
PANEL DASH RH HUS-532136970
...
15
Screw, Machine 5/16-18 UNC x 3/4 HUS-874180512
...
16
Hardware HUS-596040501
...
17
HOOD.HUSQVARNA.ORANGE HUS-532125454
...
20
PLATE, BATTERY HUS-532140181
...
24
Bolts HUS-596564401
...
25
GSPH HUS-596134901
...
26
Nuts HUS-596322601
...
28
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
29
LENS.RH.HUSQVARNA.YTGT.CL HUS-532157069
...
30
FENDER HUS-532166886
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
33
ROLL PIN NLA HUS-532124899
...
34
FOOTREST LT/YT/GT RH HUS-532145243
...
35
Bolts HUS-596136001
...
38
BRACKET LH PIVOT HUS-532139886
...
39
BRACKET RH PIVOT HUS-532139887
...
40
SPACER HUS-532139977
...
41
CONSOLE HUS-532153764
...
42
LENS LH HUS-532157068
...
43
Washer 17/32 x 7/8 x 16 Ga HUS-819171416
...
46
RETAINER HUS-532127316
...
50
SUPPORT ASS'Y HUS-532124130
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
56
Bolt rdhd sqnk 3/8-16 x 3/4 HUS-872140606
...
59
SNAP BUSHING T HUS-532009151
...
63
SPACER HUS-532121236
...
64
DASH ASSY LT NLA HUS-532104783
...
65
Bolt, Hex, Fin. 5/16-18 UNC x 2 HUS-874760532
...
66
DASH PLATE HUS-532143049
...
67
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
69
STRAP ASSY LT HUS-532106784
...
70
STRAP ASSY LT HUS-532104618
...
71
Nut Keps Blk Hex 1/4-20 UNC HUS-873640400
...
72
SUPT, ASS'Y GRILL HUS-532126025
...
74
Nuts HUS-596322601
...
75
BOLT HUS-532007605
...
76
BOLT HUS-874760620
...
77
SCREW.PNHD.10-24 HUS-871191008
...
78
LOCKWASHER #10 HUS-810071000
...
79
Nuts HUS-596987401
...
80
LATCH.HOOD. HUS-532109808
...
81
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
82
SCREW.PAN.HEAD HUS-874981024
...
83
SPACER LT HUS-532007206
...
84
WASHER HUS-819070818
...
85
NUT HUS-873271000
...
86
SIDE PANEL RH HUS-532137946
...
87
PANEL ASSY HUS-532150302
...
90
Washers HUS-596204201
...
91
NUT.HEX..25-20.UNC HUS-532050675
...
92
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
93
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
94
WASHER LT HUS-532110357
...
95
SNAP CAP LT HUS-532110356
...
96
Hardware HUS-596040501
...
97
SUPPORT RH YTH HUS-532110853
...
98
SUPPORT LH YTH HUS-532110852
...
99
Bolts HUS-596564401
...
109
BUMPER BRACKET HUS-532170310
...
110
PLUG PLASTIC HUS-532143679
...
111
Bolts HUS-595901101
...
112
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
113
HUS-954040608
...
xx
PLUG BUTTON T HUS-532005479
...
xx
PLUG-DASH T HUS-532125085
...
xx
COVER ACCESS HUS-532121794
