Husqvarna LTH 130 (954830061A) (1996-01) Ride Mower

Model: LTH 130 (954830061A) (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

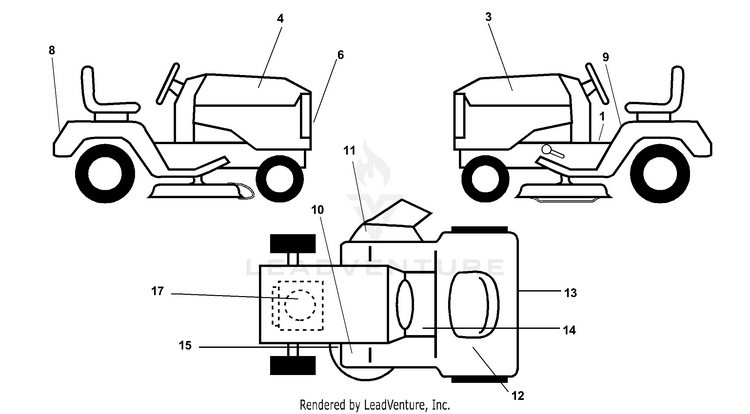

Decals

...
...
1
DECAL DASH HUS-532140820
...
3
DECAL HOOD LH HUS-532150726
...
4
DECAL HOOD RH HUS-532150725
...
6
DECAL.GRILLE.HUSQ HUS-532150616
...
8
DECAL FENDER HUSQ HUS-532150617
...
9
DECAL CAUTION HUS-532133795
...
10
DECAL HUS-532101892
...
11
DECAL WARNING (ENGLISH/FRENCH) HUS-532137259
...
12
DECAL BTRY SYMBOLS HUS-532145005
...
13
DECAL DRAWBAR CONTROL HUS-532142341
...
14
DECAL HUS-532142337
...
15
DECAL V-BELT SCHEMATIC HUS-532136832
...
17
DECAL HP ENGINE HUS-532151124
...
xx
DECAL.TRACTOR.6MIL.H/ADJUST HUS-581724901
...
xx
PAD FOOTREST HUS-532145246
...
xx
FASTENER HUS-532145247
...
xx
Manual Owner's (English) HUS-532150731
...
xx
Manual Owner's (French) HUS-532150732
...
xx
42" Snow Blade Available accessories not included with tractor HUS-LBD48
...
xx
40" Snow Thrower Available accessories not included with tractor HUS-LSB42
...
xx
33 lb. Wheel Wts. (Pair) Available accessories not included with tractor HUS-LC05
...
xx
Tire Chains (18 x 8.5 x 8) Available accessories not included with tractor HUS-CH12
...
xx
Mulcher Plate Kit 42" Available accessories not included with tractor HUS-MP42
