Husqvarna LTH 130 (954830061A) (1996-01) Ride Mower

Model: LTH 130 (954830061A) (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

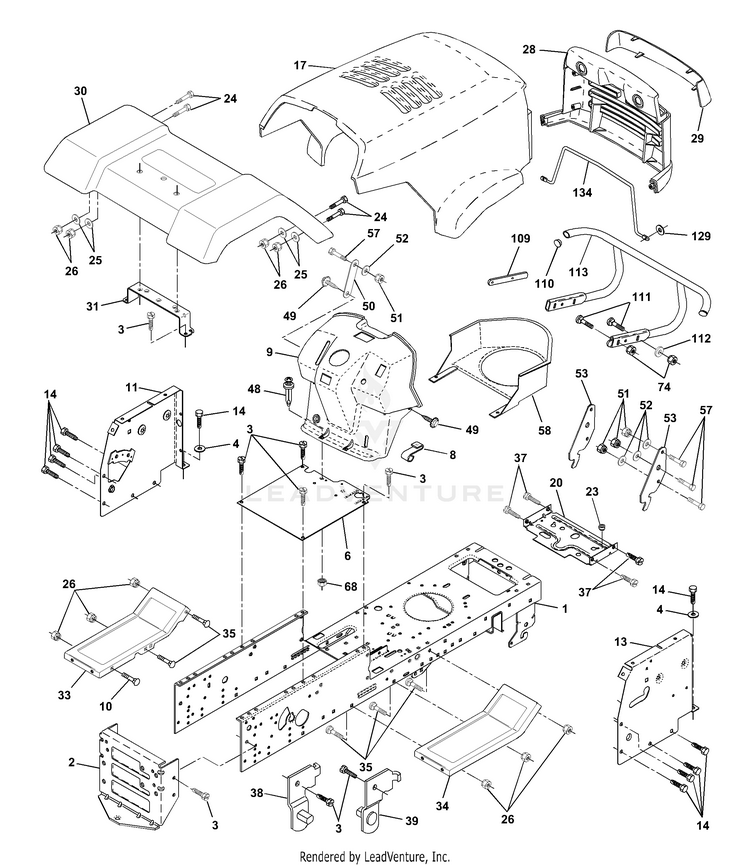

Chassis And Enclosures

...
...
1
CHASSIS WELD 11GA.95 HUS-532145501
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
4
Washer 13/32 x 3/4 x 16 Ga. HUS-819131216
...
6
SADDLE LT FENDER HUS-532145206
...
8
CLIP,INSULATOR HUS-532126471
...
9
DASH PLATE HUS-532151018
...
10
Bolts HUS-596728201
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
13
Panel Dash Rh HUS-532146961
...
14
Bolts HUS-596564001
...
17
HOOD - LT/YT HUS-532156051
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
24
Bolts HUS-596564401
...
25
GSPH HUS-596134901
...
26
Nuts HUS-596322601
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
30
FENDER HUS-532166886
...
31
BRACKET FENDER HUS-532136619
...
33
FOOT REST LH HUS-532147203
...
34
FOOTREST LT/YT/GT RH HUS-532145243
...
35
Bolts HUS-596136001
...
37
Screws HUS-596030701
...
38
BRACKET LH PIVOT HUS-532139886
...
39
BRACKET RH PIVOT HUS-532139887
...
48
RIVET PUSH HUS-532138096
...
49
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
50
BRACE HUS-532142779
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
52
Washers HUS-596135301
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
...
57
Screws HUS-596230901
...
58
AIR DUCT P/L/LT HUS-532150127
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
74
Nuts HUS-596322601
...
109
BUMPER BRACKET HUS-532170310
...
110
PLUG PLASTIC HUS-532143679
...
111
Bolts HUS-595901101
...
112
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
113
BUMPER ASM. HUS-532170311
...
129
Washers HUS-596582301
...
134
ROD SUPPORT HOOD LT/PL HUSQ HUS-532150132
...
xx
PLUG BUTTON T HUS-532005479
...
xx
PLUG DOME HUS-532134014
