Husqvarna LTH 130 (954140005H) (1998-07) Ride Mower

Model: LTH 130 (954140005H) (1998-07)

Back To Assemblies

Save Part Not Listed?
product name

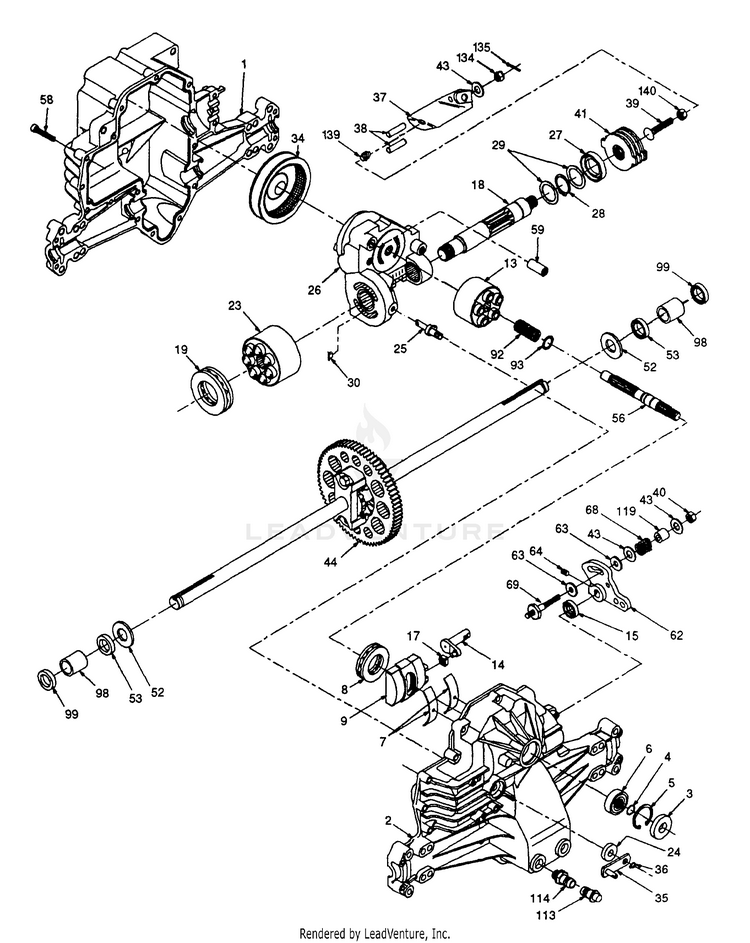

Hydro Gear Transaxle - Model Number 319-0500

...
...
1
Housing, Lower HUS-142986
...
2
Assembly, Upper Housing HUS-142987
...
3
Seal, Lip HUS-142932
...
4
Ring, Wire Retaining HUS-142928
...
5
Ring, Retaining HUS-142933
...
6
Bearing, Shaft Ball HUS-142934
...
7
Bearing, Cradle HUS-142935
...
8
Bearing, Thrust 30 x 52 x 13 HUS-150771
...
9
Swashplate, Variable HUS-142937
...
13
Block, Cylinder Assembly HUS-142938
...
14
Arm, Trunnion HUS-142939
...
15
Seal, Lip HUS-142940
...
17
Guide, Slot HUS-142941
...
18
Shaft, Motor HUS-150772
...
19
Bearing, Thrust 42 x 68 x 16 HUS-150773
...
23
Block, Cylinder Assembly HUS-142944
...
24
Seal, Lip 10 x 25 x 7 HUS-142945
...
25
Actuator, Bypass HUS-142946
...
26
Center Section Assembly Kit HUS-150774
...
27
Seal, Lip 26 x 42 x 8 HUS-142948
...
28
Ring, Retaining HUS-142949
...
29
Washer 26 x 35 x 1 HUS-142950
...
30
Nut, Jam HUS-150787
...
34
Oil Filter Element HUS-142951
...
35
Arm, Bypass HUS-142952
...
36
Ring, Retaining HUS-142953
...
37
Arm, Actuating HUS-142954
...
38
Pin, Actuating HUS-142955
...
39
Bolt 5/16-24 x 1-3/4 HUS-150777
...
40
Locknut, Hex 5/16-24 UNJC HUS-150778
...
41
Brake Rotor/Stator Kit HUS-142958
...
43
Washer 7/16 x 7/8 x .060 HUS-142884
...
44
Differential Assembly HUS-142990
...
52
Washer 3/4 x 1.5 x .13 HUS-142991
...
53
Seal .75 x 1.25 x .250 HUS-142961
...
56
Shaft, Input HUS-142963
...
58
Bolt 1/4-20 x 1.38 HUS-142964
...
59
Pin .5 OD x .43 ID x .750 HUS-142965
...
62
Arm, Control HUS-142966
...
63
Puck, Dampener HUS-142967
...
64
Set Screw HUS-142920
...
68
Spring HUS-142969
...
69
Stud 5/16-24 HUS-144610
...
92
Spring, Block HUS-142977
...
93
Washer, Block Thrust HUS-142978
...
98
Sleeve Bearing HUS-142993
...
99
Seal, Wiper HUS-142976
...
113
Cap, Vent Assembly HUS-142917
...
114
Fitting, O-Ring Assembly HUS-142918
...
119
Spacer HUS-142980
...
134
Nut, Castle 5/16-24 HUS-144607
...
135
Pin, Cotter HUS-144608
...
139
Spring, Compression HUS-150775
...
140
Nut, Hex 5/16-24 HUS-150776
