Husqvarna LTH 130 (954140005H) (1998-07) Ride Mower

Model: LTH 130 (954140005H) (1998-07)

Back To Assemblies

Save Part Not Listed?
product name

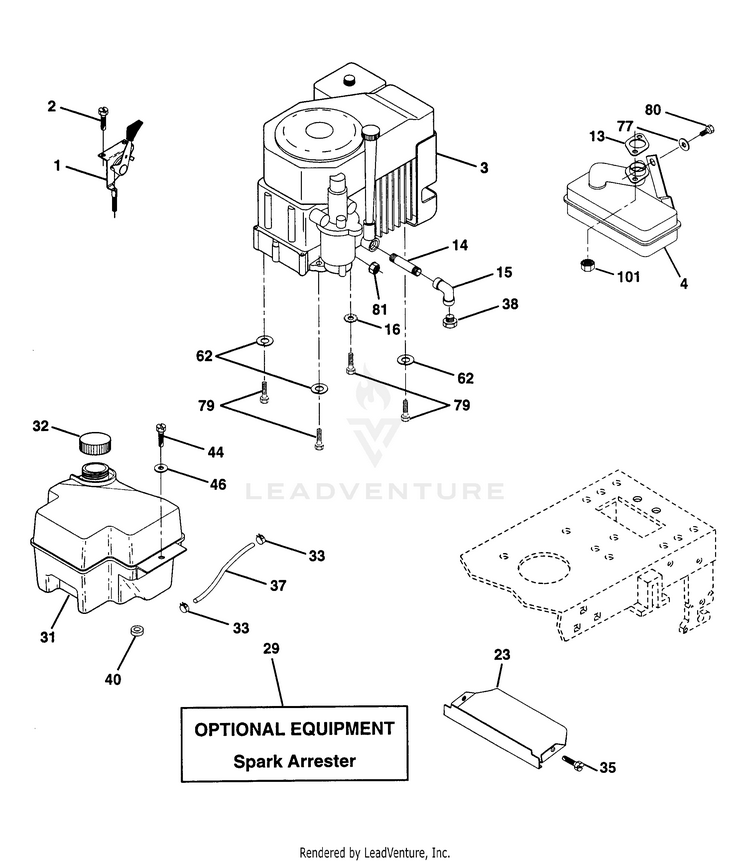

Engine

...
...
1
CONTROL.THROTTLE.LT/YT HUS-532170805
...
2
Bolts HUS-596582501
...
4
MUFFLER.KOHL.CV.SINGLE.W/PORT HUS-532159420
...
13
KOHLER GASKET HUS-532163831
...
14
Nipple Pipe 3/8 Npt X 3-1/2 HUS-813280328
...
15
VALUE.OIL.DRAIN HUS-532428287
...
16
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
23
PROTECTOR HUS-532159880
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
GAS TANK 2GAL HUS-532180645
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
33
HOSE CLAMP HUS-532123487
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
44
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
46
Washers HUS-596135301
...
62
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
77
WASHER - 26X6.5X1.6 HUS-734115441
...
79
HUS-740108025
...
80
Bolt Hex Hd 5/16-18 UNC x 1/2 HUS-874760508
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
101
Nuts HUS-596433401
