Husqvarna LTH 130 (954140005H) (1998-07) Ride Mower

Model: LTH 130 (954140005H) (1998-07)

Back To Assemblies

Save Part Not Listed?
product name

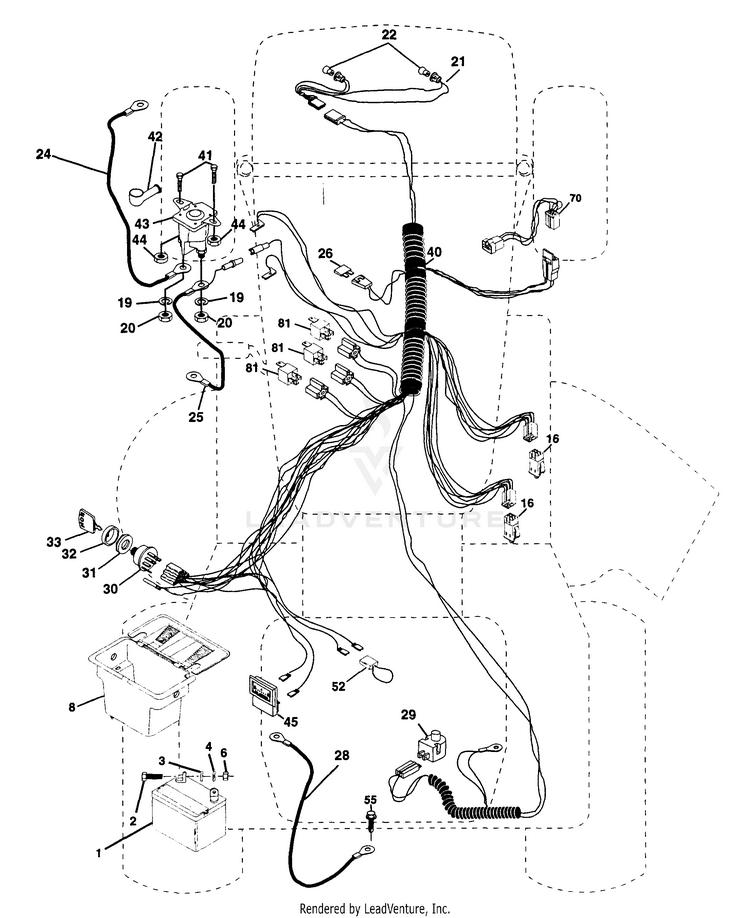

Electrical

...
...
1
Battery 12 Volt 28 Amp HUS-163465
...
2
Bolt Hex Hd 1/4-20unc X 3/4 HUS-74760412
...
3
Washer 9/32 X 5/8 X 16 Ga HUS-STD551025
...
4
Washer Lock Hvy Helical 1/4 HUS-STD551125
...
6
Nut Fin Hex 1/4-20 Unc HUS-STD541025
...
8
Case Battery HUS-156417
...
16
Switch Interlock N. Opn./N Opn. HUS-161343
...
19
Washer Lock 1/4 HUS-STD551125
...
20
Nut Jam Hex 1/4-20 Unc HUS-73350400
...
21
Harness Asm Light W/4152J HUS-147430
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery 6 Ga 11" red HUS-4799J
...
25
Cable Battery 6 Ga w/16 wire, red HUS-146147
...
26
Fuse 30 AMP Auto Green HUS-108824X
...
28
Cable Ground HUS-4207J
...
29
Switch Plunger Normal Op. Olive HUS-160784
...
30
Switch Ign 3 HUS-140301
...
31
Nut Ignition HUS-124211X
...
32
Cover Sw Ignition HUS-141226
...
33
Key Ign HUS-109310X
...
40
Harness Ign HUS-163845
...
41
Bolt Blk Fin Hex 1/4-20unc X 1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-145673
...
44
Nut Keps Blk Hex 1/4-20 unc HUS-73640400
...
45
Ammeter HUS-122822X
...
52
Protection Wire Loop (Hourmeter) HUS-141940
...
70
Harness Eng HUS-140426
...
81
Relay Asm. HUS-109748X
