Husqvarna LTH 130 (954140005D) (1998-02) Ride Mower

Model: LTH 130 (954140005D) (1998-02)

Back To Assemblies

Save Part Not Listed?
product name

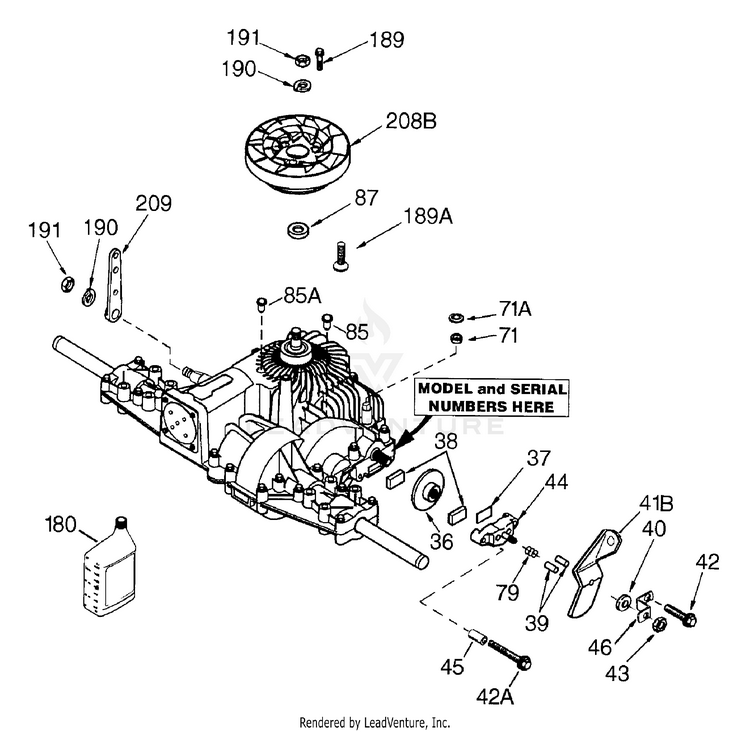

Peerless Transaxle

...
...
36
Brake Disc HUS-790075
...
37
Brake Pad Plate HUS-790007
...
38
Brake Pad (pkg of 2) HUS-799021
...
39
Dowel Pin HUS-786026
...
39B
Belt Guard HUS-798033
...
40
Flat Washer HUS-792076A
...
41B
Brake Lever HUS-790085
...
42
Screw, 1/4-20 x 1-1/4" HUS-792073
...
42A
Screw, 1/4-20 x 2-1/4" HUS-792085A
...
43
Locknut, 5/16-24 HUS-792075
...
44
Brake Pad Holder HUS-790025
...
45
Spacer HUS-786066
...
46
Brake Lever Bracket HUS-790086
...
71
Square Cut Ring HUS-788069
...
71A
Pushnut, 9/16" HUS-792162
...
79
Spring HUS-792144
...
85
Oil Fill Plug HUS-792154
...
85A
Tube, Plug HUS-792182
...
87
Oil Seal, 5/8" HUS-788035
...
180
Gear Oil 80W90 HUS-730229A
...
189
Drive Screw #6 x 1/2" HUS-792168
...
189A
Screw, 10-32 x 1/2" HUS-792169
...
190
Lockwasher HUS-792150
...
191
Nut, 7/16-20 HUS-792151
...
208B
Fan/Coupling (Incl. 189 & 189A) HUS-798025
...
209
Control Lever HUS-798024
