Husqvarna LTH 120 (954140106A) (1999-10) Ride Mower

Model: LTH 120 (954140106A) (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

Engnie

...
...
1
CONTROL.THROTTLE/CHOKE.BLACK HUS-532170551
...
2
Bolts HUS-596582501
...
4
MUFFLER.SINGLE.B&S.10-12HP HUS-532137348
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
14
Nipple Pipe 3/8 Npt x 3" HUS-813280324
...
15
VALUE.OIL.DRAIN HUS-532428287
...
16
Washers HUS-596238701
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
TANK.ASM.FUEL.FRONT.W/CAP HUS-532184900
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
33
HOSE CLAMP HUS-532123487
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
44
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
46
Washers HUS-596135301
...
62
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
72
Screw Hexhd Cap 5/16-18 x 5/8 HUS-871070510
...
81
NUT.HEX..25-20.UNC HUS-532050675

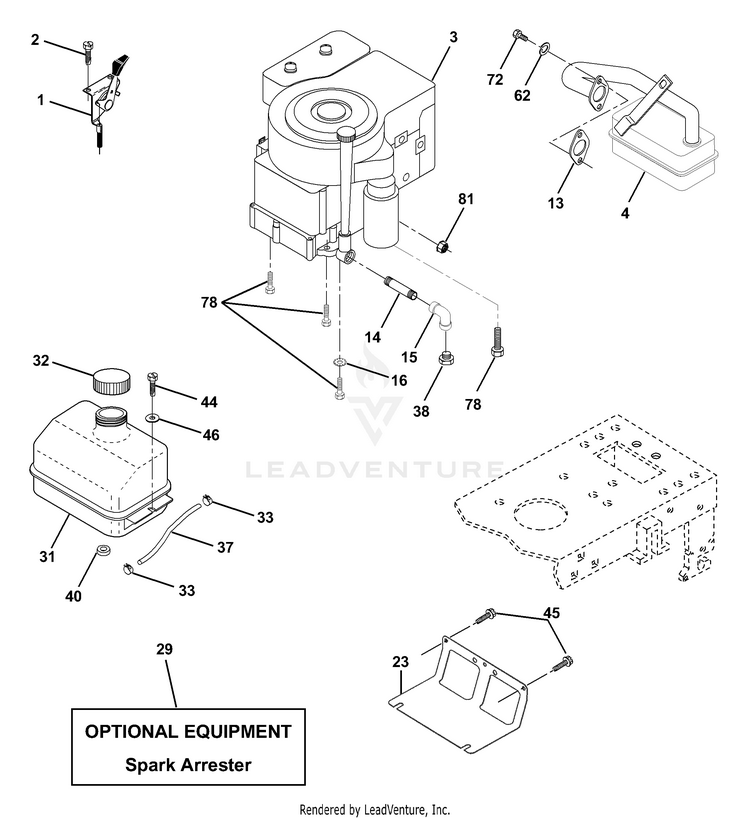

Schematic Image Zoomed
