Husqvarna LTH 120 (954140106A) (1999-10) Ride Mower

Model: LTH 120 (954140106A) (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

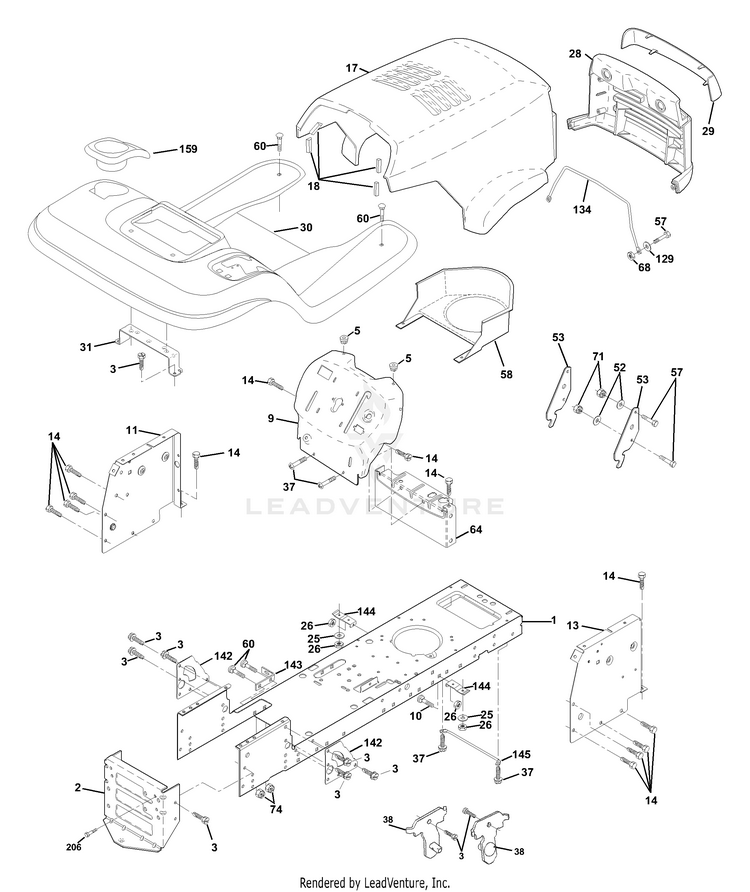

Chassis And Enclosures

...
...
1
CHASSIS STAMPING HUS-532169630
...
2
DRAWBAR, 12GA HUS-532176554
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
9
DASH SILKSCR. HUS-532168337
...
10
Bolts HUS-596728201
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
13
DASH PANEL ASM. HUS-532172107
...
14
Bolts HUS-596564001
...
17
HOOD - LT/YT HUS-532156051
...
18
BUMPER HOOD T HUS-532126938
...
25
GSPH HUS-596134901
...
26
Nuts HUS-596322601
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
30
KIT.FENDER.PNT.STL.W/CPH. HUS-583713401
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
37
Screws HUS-596030701
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
52
Washers HUS-596135301
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
...
57
Screws HUS-596230901
...
58
AIR DUCT P/L/LT HUS-532150127
...
60
Bolt Rdhd Sqnk 3/8-16unc x 3/4 HUS-872140606
...
64
DASH LOWER HUS-532154798
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
71
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
74
Nuts HUS-596322601
...
129
Washers HUS-596582301
...
134
ROD SUPPORT HOOD LT/PL HUS. HUS-532160219
...
142
PLATE REINFORCEMENT HUS-532175702
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
144
BRKT, FOOT REST HUS-532175582
...
145
ROD.PIVOT.HOOD HUS-532409167
...
159
CUPHOLDER, BLK HUS-532155123
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
xx
PLUG BUTTON T HUS-532005479
