Husqvarna LTH 120 (954140013A) (1997-12) Ride Mower

Model: LTH 120 (954140013A) (1997-12)

Back To Assemblies

Save Part Not Listed?
product name

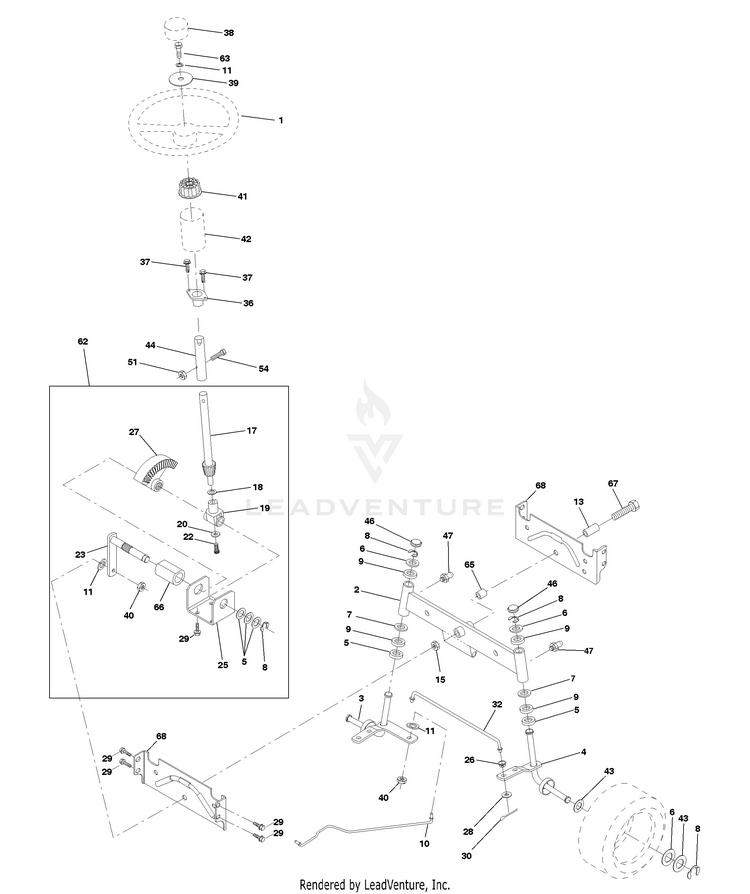

Steering Assembly

...
...
1
STEERING WHEEL HUS-532124415
...
2
SERVICE KIT AXLE HALF ASM HUS-531171101
...
3
SPINDLE ASM LH HUS-532156483
...
4
SPINDLE ASM RH HUS-532157473
...
5
WASHER THRUST HUS-532006266
...
6
WASHER HUS-532121748
...
7
WASHER HUS-819272016
...
8
RING CLIP HUS-812000029
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
10
DRAGLINK-STAMPED HUS-532156438
...
11
Washers HUS-596238701
...
13
BEARING AXLE HUS-532154779
...
15
LOCKNUT M HUS-583612401
...
17
SERVICE KIT SHAFT ASM ST HUS-531166901
...
18
THRUST WASHER HUS-532057079
...
19
STEERING SHAFT SUPPORT HUS-532160395
...
20
Washers HUS-596582301
...
22
SCREW.HX.WSH.HD HUS-532165857
...
23
PITMAN SHAFT ASSY HUS-532156365
...
25
BRACKET STEERING HUS-532154406
...
26
BUSHING.DRAGLINK (2 2) HUS-532126847
...
27
GEAR.SECTOR HUS-532136874
...
28
WASHER HUS-819131414
...
29
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
30
Pins HUS-596029501
...
32
ROD.TIE.WIRE.FORM HUS-532192757
...
36
KIT.BUSHING.STEERING HUS-532155106
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
38
INSERT,STR WHEEL HUS-532124416
...
39
WASHER.13/32x2 3/8x12GA HUS-583789501
...
40
NUT HUS-873610600
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
42
STEERING BOOT, GRAY HUS-532145054
...
43
WASHER HUS-532121749
...
44
SHAFT EXT STEERING HUS-532153721
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
51
Hardware HUS-596040501
...
54
Screws HUS-595305701
...
62
KIT.STEER.ASM.P/L HUS-584371701
...
63
Bolts HUS-596564401
...
65
SERVICE KIT SPACER AXLE SPACER HUS-531152101
...
66
BEARING ARM HUS-532154404
...
67
Bolt, Fin Hex 5/8-11 UNC x 2-3/4 HUS-874781044
...
68
AXLE, BRACE HUS-532154429
