Husqvarna LT4216B (1995) Tractor

Model: LT4216B (1995)

Back To Assemblies

Save Part Not Listed?
product name

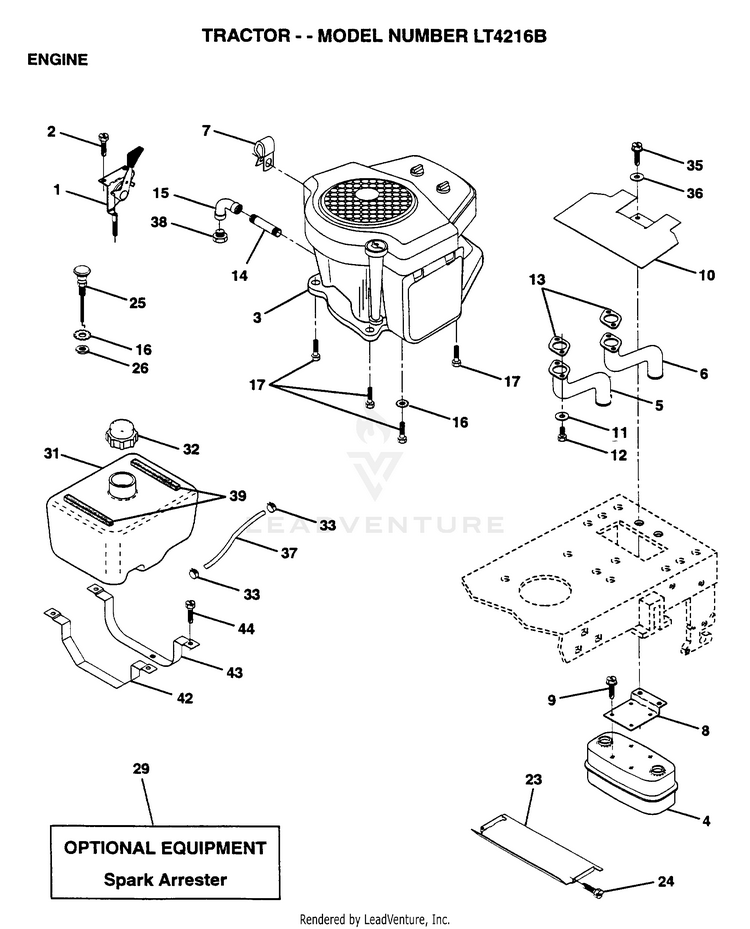

ENGINE

...
...
1
CONTROL.THT.FLG. HUS-143443
...
2
SCREW LT HUS-17720410
...
3
ENGINE, B&S HUS-402707
...
4
SUB= 149723 HUS-137978
...
5
EXHAUST.B&S.18.LH HUS-144069
...
6
EXHAUST.B&S.18.RH HUS-144068
...
7
CLAMP.TUBE.DBL.EN HUS-138129
...
8
BRACKET MUFFLER HUS-122439X
...
9
SCREW ST HUS-17190408
...
10
SHIELD.HEAT. HUS-145552
...
11
SUB= 10040400 HUS-100040400
...
12
SUB= 74780414 HUS-74780412
...
13
SUB= 272250 HUS-8545J
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
25
CONTROL.CHK.26.38 HUS-138127
...
26
SUB= 7810H HUS-73610600
...
29
SUB= 532137180 HUS-137180
...
31
TANK FUEL 1.9 NAT HUS-141291
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
35
SCREW HUS-17490512
...
36
WASHER HUS-19132012
...
37
FUEL LINE T HUS-8548R
...
39
"STRIP,FORM" HUS-126564X
...
42
STRAP TANK FUEL HUS-140020
...
43
STRAP TANK FRONT HUS-140019
...
44
SCREW HUS-17490612
