product name

Husqvarna LT4216A (1994) Tractor

Model: LT4216A (1994)

Back To Assemblies

Save Part Not Listed?
product name

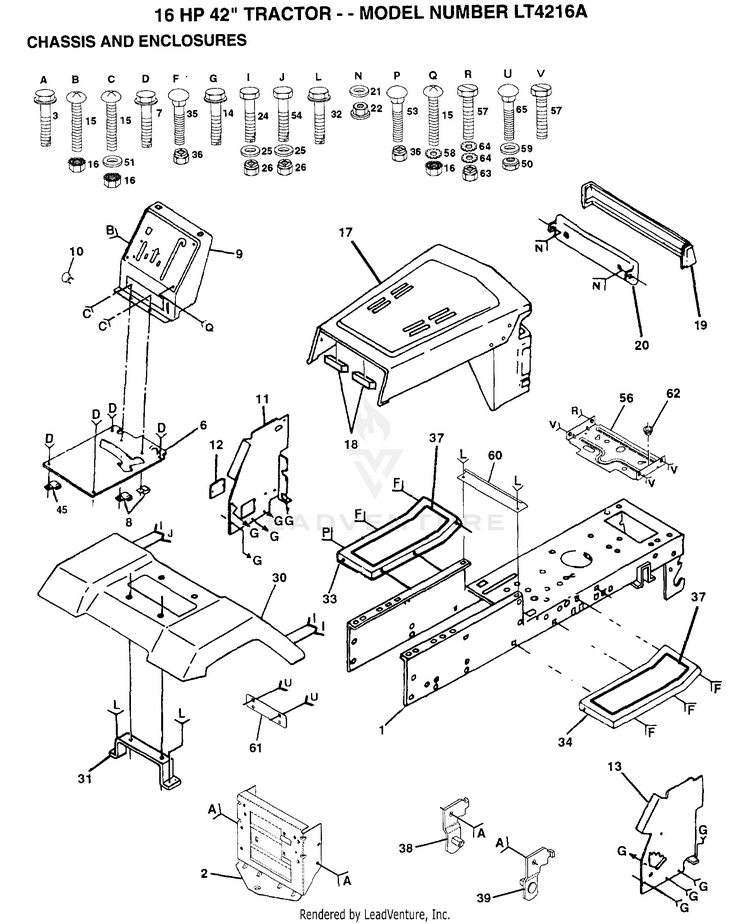

CHASSIS AND ENCLOSURES

...
...
1
SUB= 145501 HUS-140341
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
6
SUB= 145206X431 HUS-140169
...
7
SCREW HUS-17490612
...
8
CLIP T HUS-2751R
...
9
DASH.1-PC HUS-140637X012
...
10
PLUG BUTTON T HUS-5479J
...
11
PANEL DASH LH HUS-122795X
...
12
COVER ACCESS HUS-121794X
...
13
SUB= 155934X010 HUS-124031X
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD/GRILLE.ASM HUS-141401X550
...
18
SUB= 532126938 HUS-126938X
...
19
SUB= 133954 HUS-133805
...
20
SUB= 918132257 HUS-132257
...
21
WASHER PM HUS-19091216
...
22
PAL NUT LT HUS-108067X
...
24
SUB= 74780612 HUS-74760612
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
30
FENDER PNT HUS-140001X550
...
31
BRACKET SUPT FEND HUS-139976
...
32
SCREW HUS-17490612
...
33
SUB= 145244X500 HUS-105465X500
...
34
SUB= 145243X500 HUS-105464X500
...
35
BOLT HUS-72110606
...
36
SUB= 73690600 HUS-73680600
...
37
FOOTREST PAD HUS-133671
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
45
"CLIP,INSULATOR" HUS-126471X
...
50
NUT HUS-73800600
...
51
WASHER HUS-19131216
...
53
SUB= 72110608 HUS-72140608
...
54
SUB= 74760616 HUS-74760614
...
56
SUB= 140281X431 HUS-140281
...
57
SCREW HUS-17490512
...
58
LOCKWASHER HUS-11050600
...
59
WASHER HUS-19171416
...
60
SPACER FENDER LT HUS-139977
...
61
PLATE EXTEN FEND HUS-139978
...
62
SUB= 532124028 HUS-124028X
...
63
SUB= 73690500 HUS-73680500
...
64
LOCKWASHER.5/16.E HUS-11050500
...
65
BOLT D HUS-72110608
