Husqvarna LT2217A - 96041010406 (2012-08) Tractor/Ride Mower

Model: LT2217A - 96041010406 (2012-08)

Back To Assemblies

Save Part Not Listed?
product name

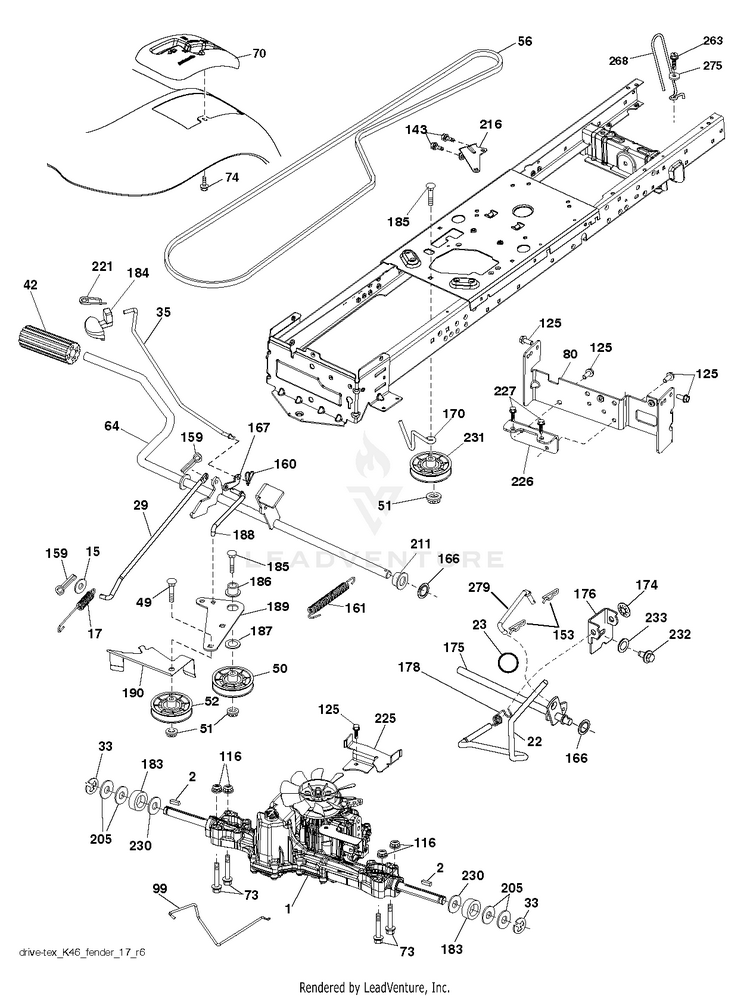

DRIVE

...
...
1
Transaxle Tuff Torq K46BA (448348) HUS-000000000
...
2
SQUARE KEY HUS-532123583
...
15
WASHER HUS-819131316
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
22
ROD.SHIFT.FENDER.TLT.2006 HUS-532197660
...
23
KNOB.DUCKHEAD.1/2 HUS-532121274
...
29
ROD.BRAKE.K46 HUS-532403806
...
33
E-RING LT HUS-812000001
...
35
ROD, BRAKE, PARK HUS-532401031
...
42
Cover, Pedal HUS-532008883
...
49
BOLT HUS-872110614
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409148
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
56
V-BELT HUS-532130969
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
70
CONSOLE.SHIFT.STL.HYD.BLACK HUS-532411329
...
73
BOLT HUS-874490540
...
74
SCREW.HI-LO.CONSOLE HUS-532142432
...
80
STRAP.TORQUE.K46.K57R.TT HUS-532440619
...
99
ROD.SPRING.BYPASS.K46.LT.Z HUS-532415742
...
116
NUT LOCK HEX FLANGE 5/16-18 HUS-873900500
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
143
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
153
RETAINER M HUS-532004497
...
159
COTTER PIN HUS-876020412
...
160
RETAINER CLIP HUS-532169484
...
161
SPRING, RETURN LT HUS-532105709
...
166
NUT.PUSH.625 HUS-532429164
...
167
LATCH.BRAKE.SPRING HUS-532405257
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
174
NUT.PUSH.500.2006 HUS-532197289
...
175
SHAFT.ASM.SHFT.T2.TLT HUS-532408539
...
176
ARM.CLEVIS.ROD.SHIFT HUS-532196214
...
178
SPRING.SHIFT.GT2006 HUS-532197456
...
183
SPACER AXLE HUS-532137057
...
184
HANDLE.PARKG.BRK.PRED.LT HUS-532199996
...
185
BOLT HUS-872110622
...
186
SPACER.RETAINER HUS-532194321
...
187
WASHER.13/32 X 1 X 1/2.11GUARD HUS-532413524
...
188
LINK.CLUTCH.GROUND.DRIVE HUS-532194323
...
189
BELLCRANK.GROUND.DRIVE.TEX. HUS-532194317
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
205
WASHER HUS-532121748
...
211
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
225
KEEPER.BELT.TRANSAXLE.K46 HUS-532403319
...
226
BRACKET.MOUNT.TORQUE.K46.TLT HUS-532401564
...
227
HCS.5/16-18X3/4 HUS-539976934
...
230
WASHER.HARDENED HUS-532188967
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
232
BOLT FIN HEX 7/16-14 X 1 HUS-874780716
...
233
WASHER SERRATED HUS-532405296
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
268
HUS-532182402
...
275
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
279
LINK.SHIFT. HUS-532413150
