Husqvarna LT2216 - 96041010206 (2012-08) Tractor/Ride Mower

Model: LT2216 - 96041010206 (2012-08)

Back To Assemblies

Save Part Not Listed?
product name

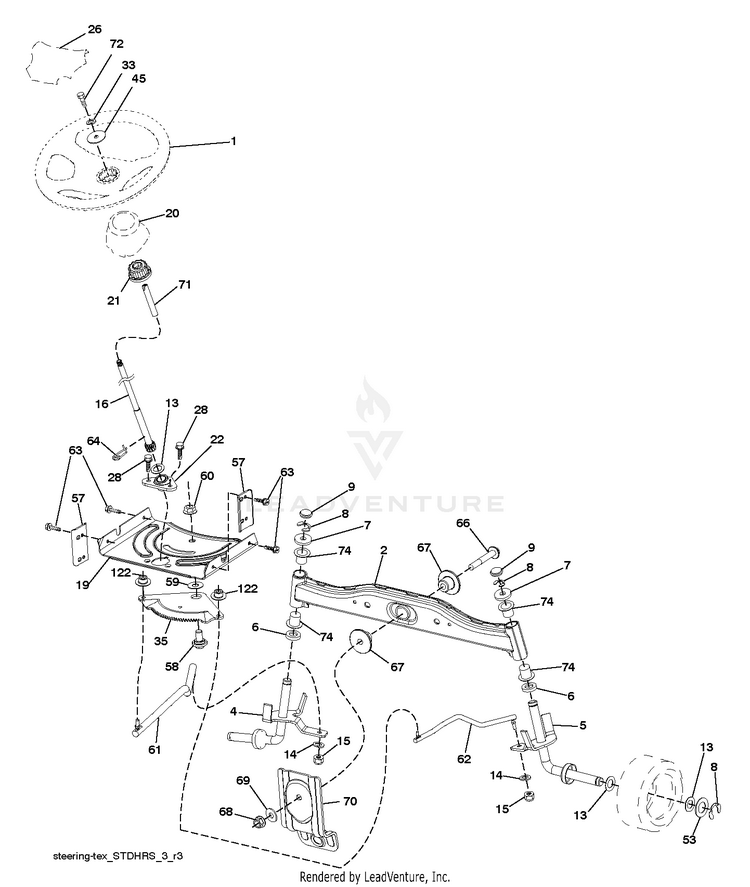

STEERING

...
...
1
WHEEL.STEERING.STDSRR.BLK/OV HUS-532424146
...
2
AXLE HALF ASM-WELDED HUS-532418168
...
4
SPINDLE.WELDED.LH.15"TEX HUS-532403087
...
5
SPINDLE.WELDED.RH.15"T HUS-532403088
...
6
WASHER THRUST HUS-532006266
...
7
WASHER HUS-532121748
...
8
RING CLIP HUS-812000029
...
9
CAP.SPINDLE HUS-532121232
...
13
WASHER HUS-532121749
...
14
WASHER.3/8 HUS-539990118
...
15
NUT CROWNLOCK 3/8-24 HUS-873540600
...
16
SHAFT.STEER.3/4.PLATED.TEX HUS-532429373
...
19
PLATE.STEER.DDL.NLT/NG HUS-532194729
...
20
BOOT.STEERING.PREDATOR.LT.BLAC HUS-532409763
...
21
STEERING.WHEEL.ADAPTER HUS-532437747
...
22
STEERING.SUPT.LOWER. HUS-532420537
...
26
CAP.WHL.STRNG.STDSRRD.SRS.BLK HUS-532424147
...
28
SCREW, 3/8-16X3/4 HUS-817000612
...
33
LOCKWASHER HUS-810040500
...
35
GEAR.SECTOR.PLATE.DDL. HUS-532194732
...
45
WASHER.11/32 HUS-819113812
...
53
WASHER.HARDENED HUS-532188967
...
57
BRACKET.UPSTOP.TEX HUS-532407465
...
58
BOLT.SHOULDER.SECTOR.P HUS-532194747
...
59
WASHER.THURST.SECTOR.S HUS-532194748
...
60
NUT FLANGE LOCK 5/8-11 HUS-873971000
...
61
DRAGLINK.LH.BALLSTUD.D HUS-532194740
...
62
DRAGLINK.RH.BALLSTUD.D HUS-532194741
...
63
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
64
RETAINER.CLIP.SPRING.S HUS-532199849
...
66
BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748
...
67
BUSHING.PM.FRONT AXLE HUS-532194737
...
68
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
69
WASHER.1.5X.505X.118 HUS-532199162
...
70
BRKT.DECK.SUSPENSION.F HUS-532196197
...
71
SHAFT.EXTEN.STRG.SPLINE HUS-532190752
...
72
BOLT 5/16-18 X 4 W/PATCH HUS-532428982
...
74
BEARING.STEERING.COLUMN HUS-532003366
...
122
HUS-532444962
