Husqvarna LT2213A - 96041015204 (2012-08) Tractor/Ride Mower

Model: LT2213A - 96041015204 (2012-08)

Back To Assemblies

Save Part Not Listed?
product name

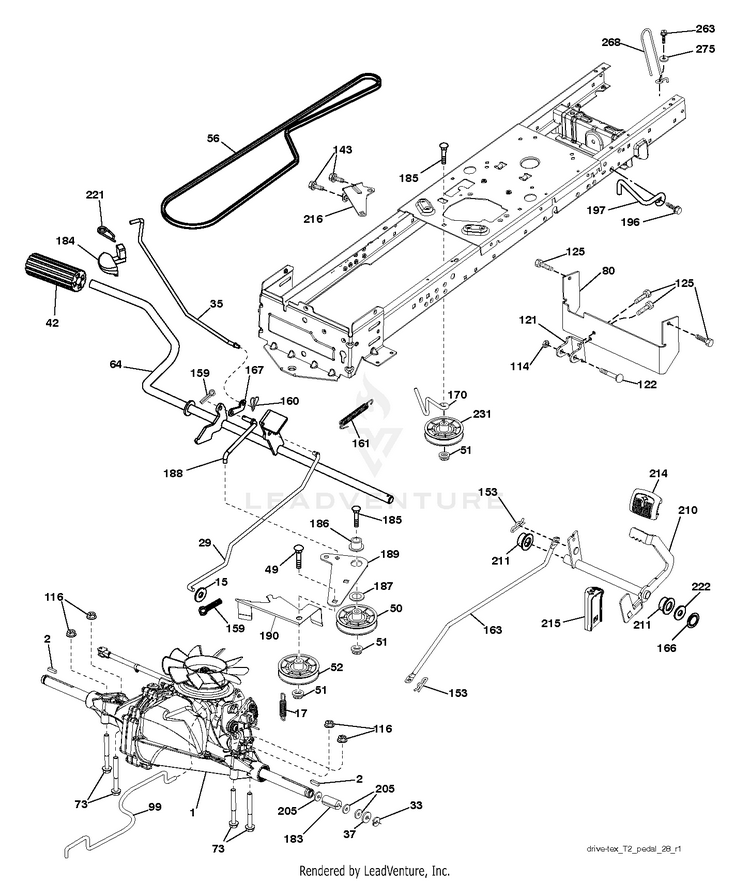

DRIVE

...
...
1
TRANSAXLE HYDRO GEAR T2-BABC-1X2B-1GX1 (421645) HUS-000000000
...
2
SQUARE KEY HUS-532123583
...
15
WASHER HUS-819131316
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
29
ROD BRAKE HUS-532423239
...
33
E-RING LT HUS-812000001
...
35
ROD, BRAKE, PARK HUS-532401031
...
37
WASHER HUS-532121749
...
42
Cover, Pedal HUS-532008883
...
49
BOLT HUS-872110614
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409148
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
56
BELT HUS-532125907
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
73
BOLT HEX 5/16-18 GR 5 HUS-874490544
...
80
HUS-581550701
...
99
ROD.ASM.BYPASS.SPRING.T2.FS HUS-532408418
...
114
NUT.71038.31-18.HEX.NYLOCK HUS-873800500
...
116
NUT LOCK HEX FLANGE 5/16-18 HUS-873900500
...
121
BRACKET STRAP TORQUE HUS-532175611
...
122
BOLT.5/16-18X2.5 HUS-872010520
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
143
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
153
RETAINER M HUS-532004497
...
159
COTTER PIN HUS-876020412
...
160
RETAINER CLIP HUS-532169484
...
161
SPRING, RETURN LT HUS-532105709
...
163
ROD.CONTROL.PCH.T2.TEX HUS-532413322
...
166
NUT.PUSH.625 HUS-532429164
...
167
LATCH.BRAKE.SPRING HUS-532405257
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
183
SPACER, AXLE PVST HUS-532156972
...
184
HANDLE.PARKG.BRK.PRED.LT HUS-532199996
...
185
BOLT HUS-872110622
...
186
SPACER.RETAINER HUS-532194321
...
187
WASHER.13/32 X 1 X 1/2.11GUARD HUS-532413524
...
188
LINK.CLUTCH.GROUND.DRIVE HUS-532194323
...
189
BELLCRANK.GROUND.DRIVE.TEX. HUS-532194317
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
196
SCREW 3/8-16X1 HUS-817000616
...
197
LINK.CLUTCH.ANIT-ROTAT HUS-532195804
...
205
WASHER HUS-532121748
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532400980
...
211
BEARING.NYLON HUS-532120183
...
214
PAD PEDAL FORWARD HUS-532421263
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
268
HUS-532182402
...
275
Washer 13/32 x 1 x 12 Ga. HUS-819131612
