Husqvarna LT1597 - 96041005004 (2008-11) Riding Tractor

Model: LT1597 - 96041005004 (2008-11)

Back To Assemblies

Save Part Not Listed?
product name

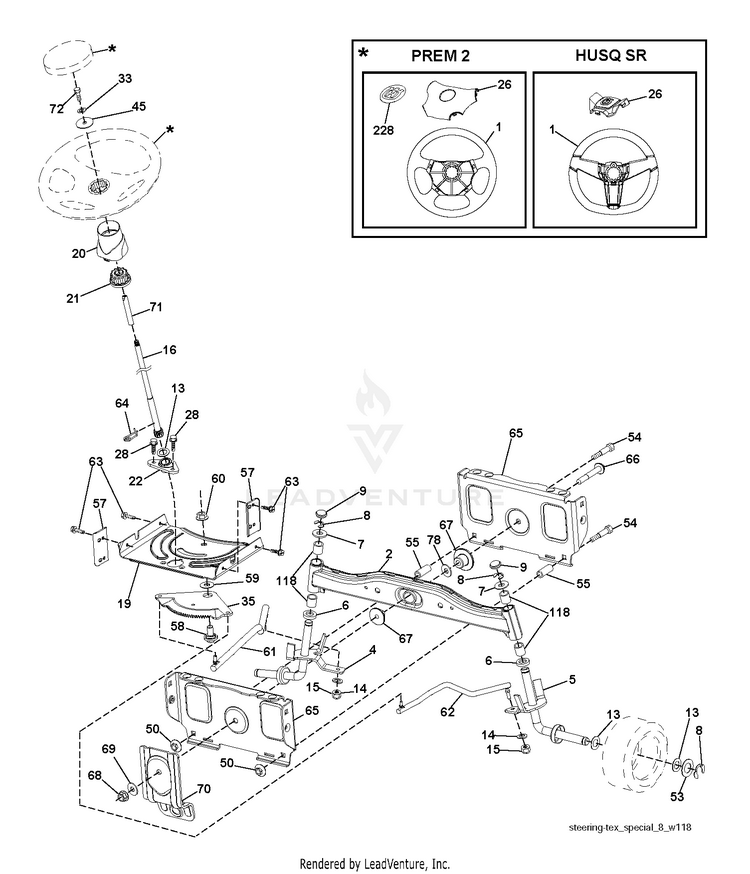

STEERING

...
...
63
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
5
SPINDLE.WLDMT.RH.15INTIRE.X431 HUS-538691201
...
66
BOLT HEX FGHD 7/16-14 X 3 SERR HUS-871020748
...
9
CAP.SPINDLE.BLACK HUS-532121232
...
70
BRACKET FRONT DECK SUSPENSION HUS-585338802
...
4
SPINDLE.WELDED.LH.15"TEX.X431 HUS-596873601
...
118
BUSHING, AXLE CAST HUS-532406013
...
65
BRACE.AXLE.FRONT.NLT/N HUS-532194734
...
14
Washers HUS-596238701
...
2
AXLE.ASM.LT.CAST.LGHTWGHT HUS-532193542
...
61
Links HUS-597047802
...
53
WASHER.HARDENED HUS-532188967
...
45
Washers HUS-596040001
...
55
SPACER.BRACE.AXLE HUS-532414736
...
16
SHAFT STEERING HUS-532196074
...
71
SHAFT EXTENSION STEERING HUS-532196075
...
64
RETAINER.CLIP.SPRING.S HUS-532199849
...
22
KIT.SRVC.STEERINGSHAFT.LWRBSHG HUS-587738901
...
28
SCREW, 3/8-16X3/4 HUS-817000612
...
68
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
33
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
21
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
62
Links HUS-597047902
...
60
NUT.FLANGE.LOCK.5/8-11 HUS-583612801
...
78
THRUST WASHER HUS-532057079
...
57
BRACKET.UPSTOP.TEX HUS-532407465
...
67
BUSHING, AXLE HUS-529496302
...
58
BOLT.SHOULDER.SECTOR.P HUS-532194747
...
8
RING CLIP HUS-812000029
...
19
SERVICE KIT PLATE PLATE.STEER. HUS-531169101
...
69
WASHER.1.5X.505X.118 HUS-532199162
...
13
WASHER HUS-532121749
...
35
GEAR.SECTOR.PLATE.DDL. HUS-532194732
...
20
STEERING.BOOT.HUSQ.LT HUS-532441425
...
50
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
6
WASHER THRUST HUS-532006266
...
15
NUT CROWNLOCK 3/8-24 HUS-873540600
...
72
BOLT.FIN.HEX.5/16-18 HUS-874780580
...
59
WASHER.THURST.SECTOR.S HUS-532194748
...
54
BOLT HUS-874760636
...
26
INSERT.CAP.WHL.STRG.HUSQ.PREM HUS-532439743
...
1
NEEDS DESCRIPTION HUS-532406480
...
7
WASHER HUS-532121748
