Husqvarna LT1597 - 96041005003 (2008-11) Riding Tractor

Model: LT1597 - 96041005003 (2008-11)

Back To Assemblies

Save Part Not Listed?
product name

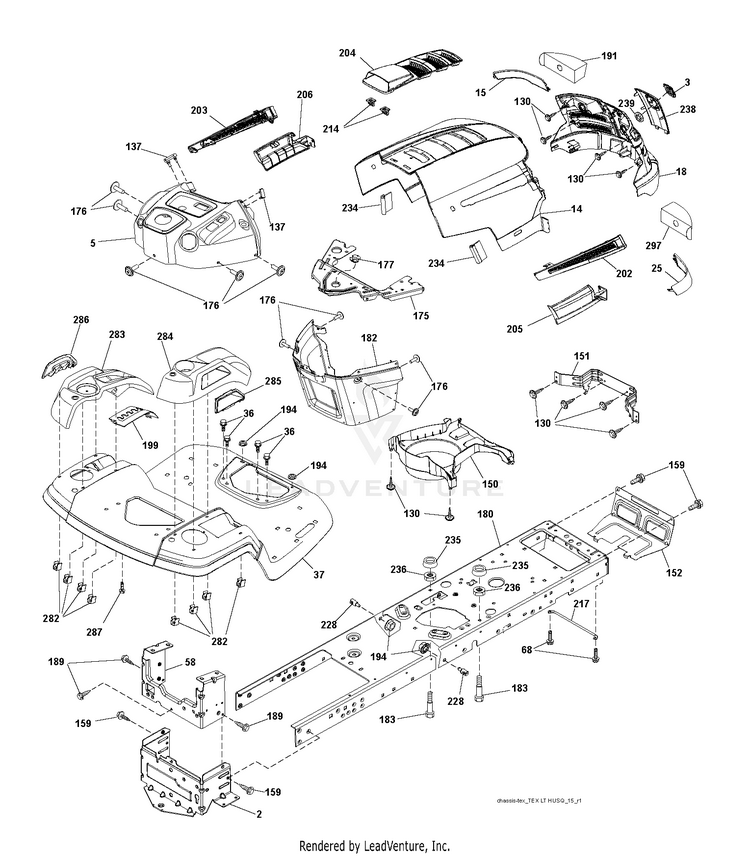

CHASSIS & ENCLOSURES

...
...
18
ASM.GRILLE HUSQVARNA.LT.498 HUS-532439421
...
25
LENS.HUSQVARNA LT.RH HUS-532406663
...
203
VENT SIDE HOOD HUS-532406670
...
150
DUCT.AIR. HUS-532407537
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
283
CONSOLE.ASM.LFT.NFR.HUSQ.LT HUS-583539301
...
177
BUSHING STEERING HUS-532195228
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
14
HOOD.HUSQVARNA.LT.ORANGE HUS-532441267
...
58
SERVICE KIT DRAWBAR FENDER DRA HUS-531152601
...
37
NEEDS DESCRIPTION HUS-532406307
...
297
INSERT.REFLECTIVE.RH. HUS-532416500
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
68
Screws HUS-596030701
...
217
ROD.PIVOT.HOOD HUS-532409167
...
287
SCREW 1/4X20 HUS-817600406
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
205
SKIRT.SIDE.HUSQVARNA.LT.RH.GRE HUS-532406668
...
191
INSERT REFLECTIVE HUS-532406665
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
2
DRAWBAR.LOWER.2PC.18/22 HUS-532412282
...
235
Spacers HUS-596564201
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
183
Screws HUS-595305701
...
238
TRIM.HUSQ LT.668 HUS-532407881
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK HUS-532416317
...
239
IS ITO HUS-532404883
...
137
BUMPER DASH HUS-532407590
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
206
SKIRT.SIDE.HUSQVARNA.LT.LEFT HUS-532441345
...
175
CROSSMEMBER HUS-532199472
...
202
VENT SIDE HOOD HUS-532406671
...
15
LENS.HUSQVARNA LT.LH HUS-532406664
...
6
IS ITO HUS-532404883
...
204
SUBASM.TOP.VENT.HUSQ.LT HUS-532441375
...
5
SUBASM.DASH.UPPER.W/BUMPER HUS-532438964
...
152
SHIELD.BROWNING/DEBRIS HUS-532194329
...
182
DASH.LOWER.PREDATOR LT HUS-532407176
...
199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
194
GSPW Nuts HUS-596135701
...
285
CONSOLE INSERT RH HUS-532416315
...
130
Screws HUS-596321701
...
151
BRACKET PIVOT HUS-532407807
...
284
HUS-532416314
