Husqvarna LT1538 - LT1538A (2002-11) Riding Tractor

Model: LT1538 - LT1538A (2002-11)

Back To Assemblies

Save Part Not Listed?
product name

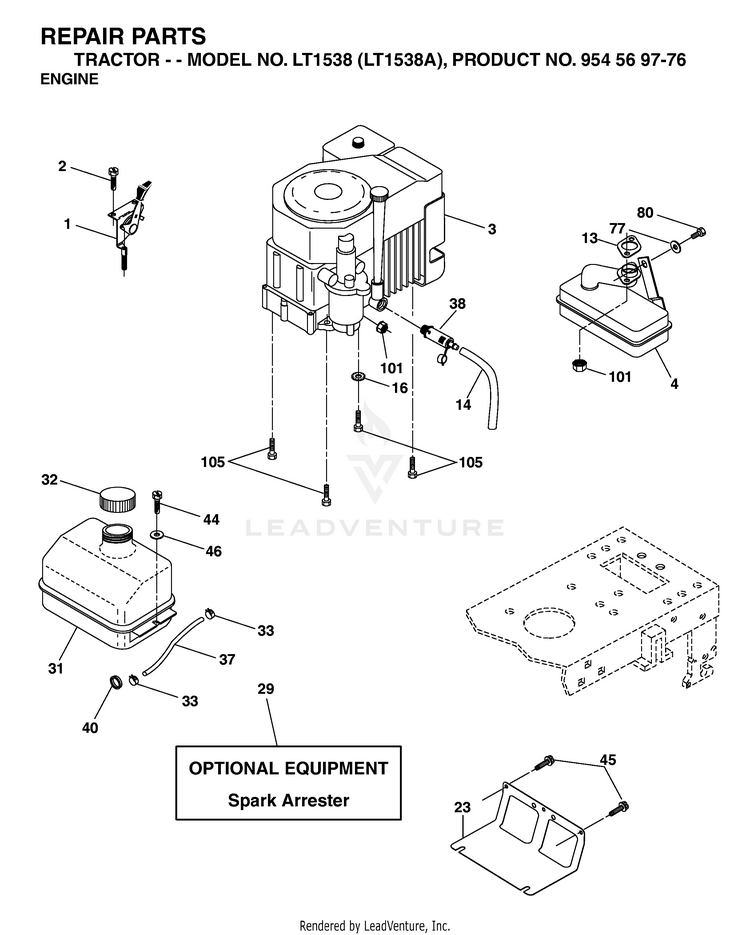

ENGINE

...
...
31
TANK.ASM.FUEL.FRONT.W/CAP HUS-532184900
...
4
MUFFLER.KOHL.CV.SINGLE.W/PORT HUS-532159420
...
2
Screws HUS-596437001
...
46
Washers HUS-596135301
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
16
Washers HUS-596238701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
38
VALUE.OIL.DRAIN HUS-532428287
...
1
CONTROL.THROTTLE.LT/YT HUS-532170805
...
80
Bolt, Hex Head, Fin. 5/16-18 x 1/2 HUS-874760508
...
101
Nuts HUS-596433401
...
33
HOSE CLAMP HUS-532123487
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
105
SCREW 3/8-16X1 HUS-817120616
...
77
WASHER - 26X6.5X1.6 HUS-734115441
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
