Husqvarna LT1536 - HAU1536B (2004-09) Riding Tractor

Model: LT1536 - HAU1536B (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

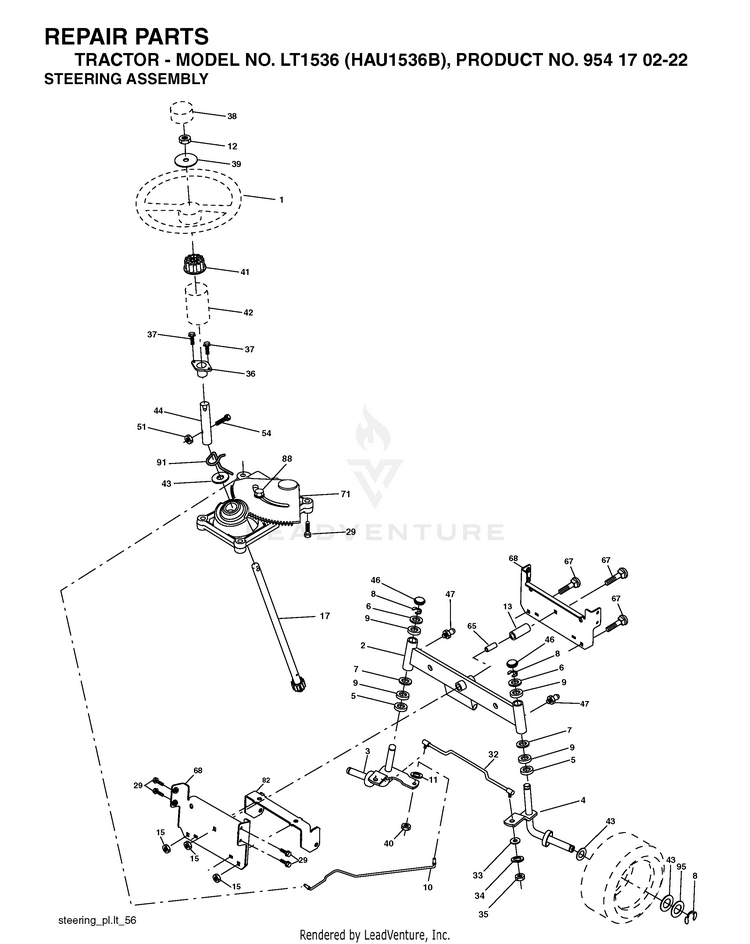

STEERING

...
...
5
WASHER THRUST HUS-532006266
...
7
WASHER HUS-819272016
...
17
KIT.RPLMNT.SHAFT.STRG. HUS-532407600
...
34
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
68
SERVICE KIT BRACE.AXLE.1 HUS-531167401
...
12
NUT.HEX.1/2-20 HUS-873940800
...
11
Washers HUS-596238701
...
40
NUT CROWNLOCK 3/8-24 HUS-873540600
...
65
SPACER.BRACE.AXLE HUS-532414736
...
4
KIT SPINDLE ASM.PNT.RH.15" HUS-596873801
...
67
BOLT CARRIAGE HUS-872110618
...
51
NUT.CROWNLOCK.1/4-28 HUS-873540400
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
82
SERVICE.KIT BRACKET HUS-531170201
...
95
WASHER.HARDENED HUS-532188967
...
35
NUT, CROWNLOCK HUS-873540500
...
3
KIT SPINDLE ASM.PNT.LH.15 HUS-596873901
...
38
INSERT.CAP.STRG.WH (3 2) (L B) HUS-532172092
...
39
Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin HUS-819182411
...
8
RING CLIP HUS-812000029
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
54
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 HUS-871130420
...
6
WASHER HUS-532121748
...
42
STEERING BOOT, GRAY HUS-532145054
...
44
KIT.RPLMNT.SHAFT.STRG. HUS-532407600
...
1
WHEEL.STEERING.LEGEND.GRY HUS-532184704
...
43
WASHER HUS-532121749
...
13
TUBE, PIVOT AXLE HUS-532136518
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
41
STEERING WHEEL ADAPTOR HUS-532159945
...
29
SCREW, 3/8-16X3/4 HUS-817000612
...
91
CLIP.STEERING HUS-532175553
...
88
BOLT, SHOULDER 7/16-20 HUS-532175118
...
2
SERVICE KIT AXLE HALF ASM HUS-531171101
...
71
SERVICE KIT STEERING ASM HUS-531167801
...
32
TIE ROD HUS-532171888
...
33
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
10
DRAGLINK.15".TIRES.2001 HUS-532175121
...
36
KIT.BUSHING.STEERING HUS-532155106
