Husqvarna LT152 - 96011018000 (2006-03) Riding Tractor

Model: LT152 - 96011018000 (2006-03)

Back To Assemblies

Save Part Not Listed?
product name

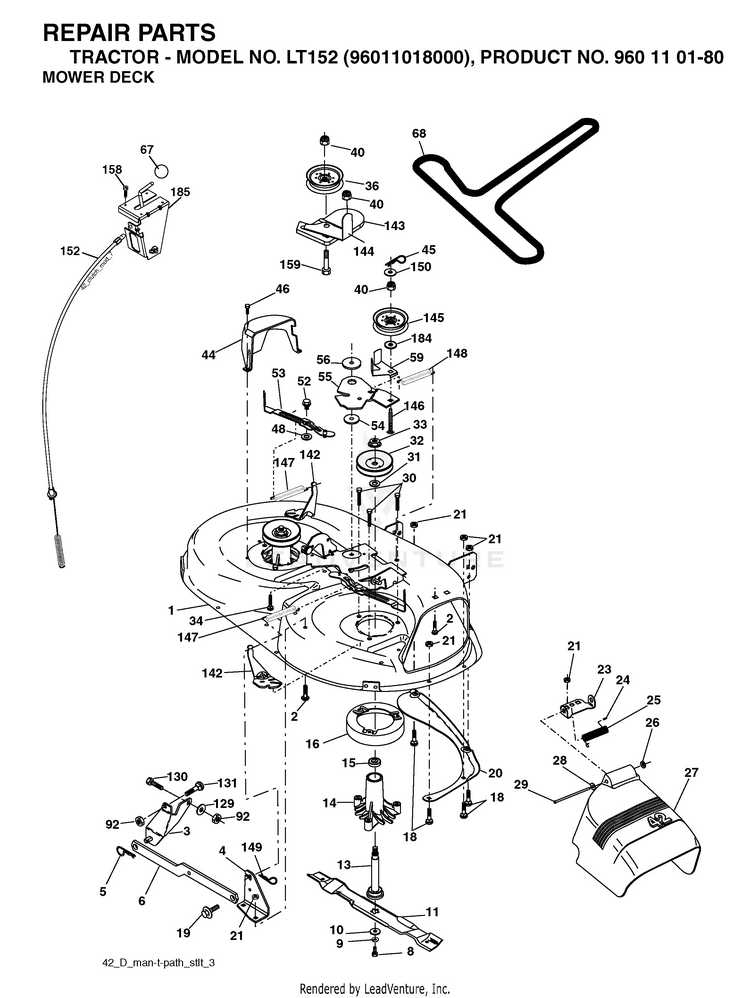

MOWER DECK / CUTTING DECK

...
...
45
RETAINER M HUS-532004497
...
59
SERVICE KIT GUARD HUS-531165901
...
13
KIT MANDREL W/NUT HUS-532137646
...
116
Bolts HUS-596434402
...
113
BOLT.5/16HEX.WHS.HD HUS-817000510
...
10
WASHER.BLADE HUS-532140296
...
25
SPRING TORSION HUS-532123713
...
- -
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
18
Bolts HUS-596136401
...
117
WHEEL.GAUGE.RALLY.NARROW HUS-589527401
...
130
Bolts HUS-596564401
...
23
SERVICE KIT BRKT HUS-529845901
...
34
GSPW Bolts HUS-596136101
...
131
Bolts HUS-596728201
...
21
Hardware HUS-596040501
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
184
GSPH HUS-596134901
...
28
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
27
SHIELD.DEFLECTOR.MOWER.42".BLK HUS-532130968
...
33
Nuts HUS-596134801
...
92
Nuts HUS-596322601
...
144
KEEPER BELT 42" CLUTCH HUS-532173441
...
55
SERVICE KIT ARM ARM IDLER 42" HUS-531166601
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
185
HEAD ASM. CABLE CLUTCH HUS-532188234
...
152
CABLE.CLUTCH.42" HUS-532181555
...
111
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
32
PULLEY MANDREL HUS-532173436
...
53
SERVICE KIT ARM BRAKE ASSY HUS-531168401
...
150
Washers HUS-596039801
...
24
CAP-SLEEVE LT HUS-532105304
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
26
NUT PUSH M HUS-532110452
...
129
GSPH HUS-596134901
...
2
GSPW Bolts HUS-595901601
...
20
SERVICE KIT BAFFLE.VORTEX BAFF HUS-531167001
...
19
BOLT SHD 5/16-18 HUS-532132827
...
15
BEARING HUS-532110485
...
112
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
143
SERVICE KIT BRACKET HUS-529844301
...
146
BOLT CARRIAGE IDLER HUS-532173443
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
142
SERVICE KIT ARM SPRING BRAKE M HUS-529845801
...
4
BRACKET SWAY BAR 42" DECK HUS-532165460
...
147
SPRING HUS-532179748
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
44
GUARD MANDREL LH BLACK HUS-532140088
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
9
Washers HUS-596238701
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
- -
NEEDS DESCRIPTION HUS-532181385
...
8
BLADE BOLT HUS-532850857
...
36
CLG HUS-597025001
...
158
Screws HUS-596437001
...
119
GSPH HUS-596134901
...
29
Rods HUS-595297001
...
48
WASHER HUS-532133944
...
11
42" HI-LIFT BLADE HUS-532138971
...
1
DECK.SVC.42".BLACK HUS-532176027
...
118
Nuts HUS-596322601
...
54
WASHER HUS-532178515
...
5
RETAINER-SPRNG RB HUS-532124670
...
52
BOLT.SHOULDER.5/16-18 HUS-532139888
...
68
NEEDS DESCRIPTION HUS-532180215
...
148
IDLER RETURN SPRING HUS-532169022
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
159
Bolts HUS-596987501
...
145
PULLEY.IDLER.FLAT.PLATED HUS-532173437
