Husqvarna LT150 (1999 & Before) Tractor

Model: LT150 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

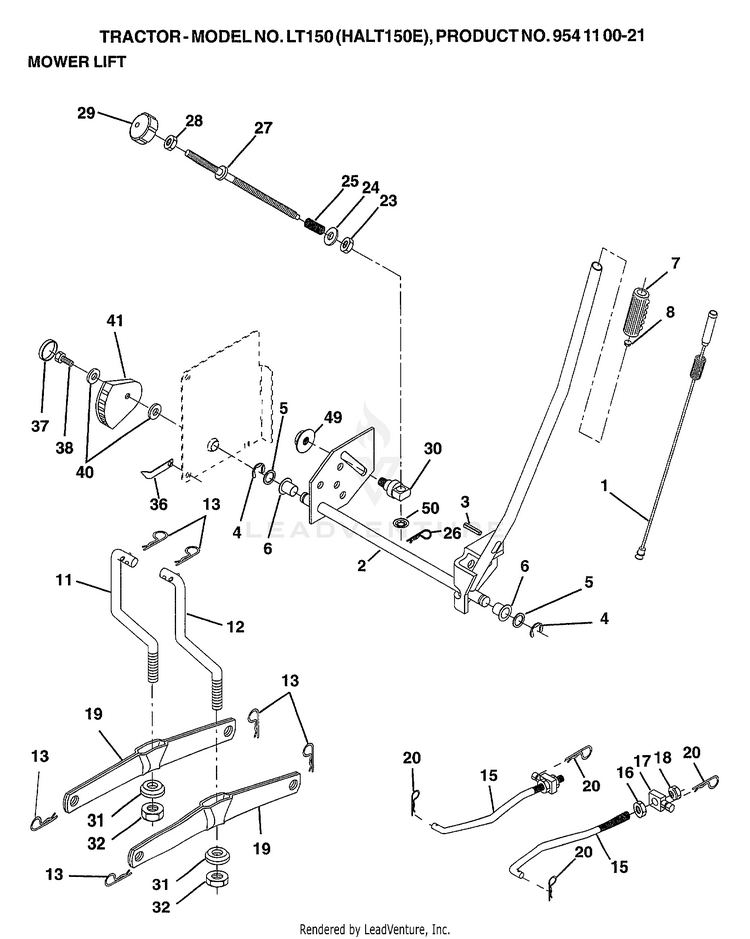

MOWER LIFT

...
...
1
SUB= 159460 HUS-532159460
...
2
SUB= 159471 HUS-532159471
...
3
SUB= 105767X HUS-532105767
...
4
E RING #5133-62 HUS-812000002
...
5
WASHER PLTD 21/32 X 1 X 21 GA HUS-819211621
...
6
SUB= 120183X HUS-532120183
...
7
SUB= 125631X HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
11
LIFT LINK LH HUS-532145537
...
12
LIFT LINK RH HUS-532145536
...
13
RETAINER SPRING HUS-532085902
...
15
LINK.SUSPENSION.FRONT HUS-532173288
...
16
NUT JAM HEX 1/2-13 HUS-873350800
...
17
Trunnion Blk Zinc HUS-532175689
...
18
NUT.1/2C.NYLOC HUS-539101331
...
19
SUB= 139868 HUS-532139868
...
20
SPRING RETAINER HUS-532003146
...
23
SUB= 110807X HUS-532110807
...
24
WASHER, 13/32 X 5/8 X 16 GA. HUS-819131016
...
25
SPRING HUS-532002876
...
26
RETAINER CLIP HUS-532169484
...
27
"ROD,ADJ" HUS-532126971
...
28
Nut, Hex 3/8-16 HUS-873220600
...
29
SUB= 138057 HUS-532138057
...
30
SUB= 150233 HUS-532150233
...
31
BEARING.PIVOT.LIFT HUS-532169865
...
32
NUT CROWNLOCK 3/8-24 HUS-873540600
...
36
SUB= 155097 HUS-532155097
...
37
SUB= 123935X HUS-532123935
...
38
SCREW HUS-817060516
...
40
WASHER 11/32X1.5X10 GA HUS-819112410
...
41
SUB= 155098 HUS-532155098
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
50
SUB= 110452X HUS-532110452
