Husqvarna LT150 (1999 & Before) Tractor

Model: LT150 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

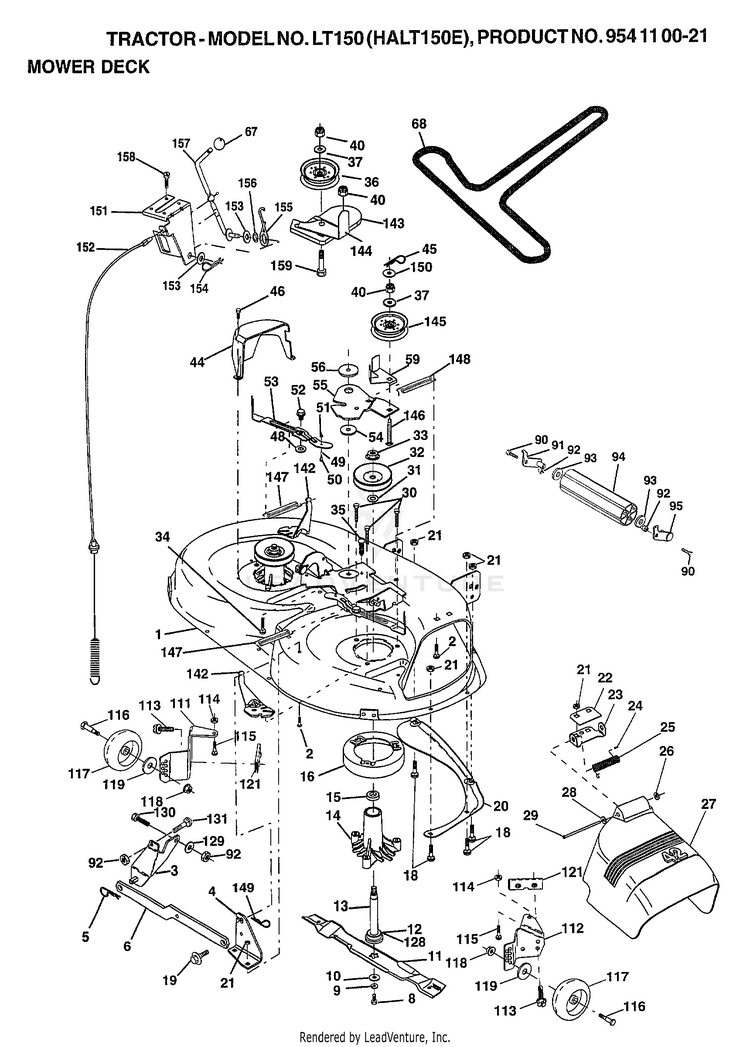

MOWER DECK

...
...
1
KIT.DECK.WELDMENT.42".BLACK HUS-532176027
...
2
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
3
SUB= 138017 HUS-532138017
...
4
BRKT ASM HUS-532165460
...
5
Bar Sway Deck HUS-532178024
...
6
Bar Sway Deck HUS-532178024
...
8
SUB= 850857 HUS-532850857
...
9
WASHER.3/8 HUS-539990118
...
10
SUB= 140296 HUS-532140296
...
11
SUB= 134149 HUS-5321341-49
...
12
BALL-BEARING 6204-2RS HUS-738220419
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
SUB= 128774 HUS-532128774
...
15
SUB= 110485X HUS-532110485
...
16
Stripper, Mower HUS-532174493
...
18
BOLT RDHD SQNK 5/16-18 X 5/8 HUS-872140505
...
19
SUB= 132827 HUS-532132827
...
20
SUB= 159770 HUS-532159770
...
21
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
22
Bracket Deflector Mower 42" HUS-532177563
...
23
Bracket Deflector Mower 42" HUS-532177563
...
24
SUB= 105304X HUS-532105304
...
25
SUB= 123713X HUS-532123713
...
26
SUB= 110452X HUS-532110452
...
27
Shield Deflector Mower 42" Blk HUS-532130968
...
28
WASHER - 15X7.3X1.6 HUS-734116301
...
29
SUB= 131491 HUS-532131491
...
30
BOLT, MANDREL HUS-532173984
...
31
SPACER, MANDREL HUS-532187690
...
32
Pulley, Mandrel HUS-532173436
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
BOLT HUS-872110614
...
35
SUB= 133835 HUS-532133835
...
36
PULLEY.IDLER.FLAT HUS-532173438
...
37
WASHER 13/32 X 13/16 X 16 GA HUS-819131316
...
40
NUT, CROWNLOCK 3/8-16 HUS-873680600
...
44
SUB= 140088 HUS-532140088
...
45
RETAINER M HUS-532004497
...
46
SUB= 137729 HUS-532137729
...
48
WASHER HARDENED SMALLER HUS-532133944
...
49
ROLLER ASM CAM FOLLOWER HUS-532174284
...
50
SUB= 131340 HUS-532131340
...
51
SUB= 69180 HUS-532069180
...
52
SUB= 139888 HUS-532139888
...
53
ARM BRAKE ASSY HUS-532184907
...
54
Washer Hardened HUS-532178515
...
55
SUB= 155046 HUS-532155046
...
56
SPACER HUS-532165723
...
59
SUB= 141043 HUS-532141043
...
67
SUB= 106932X HUS-532106932
...
68
SUB= 144959 HUS-532144959
...
90
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
92
Nut HUS-873680600
...
93
WASHER, 17/32 X 7/8 X 16 GA. HUS-819171416
...
94
NOSE ROLLER HUS-532132264
...
95
BRACKET ASM, ROLLER (R) HUS-532175747
...
111
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
112
KIT.BRKT.GAUGE.WHEEL.42" HUS-532181040
...
113
Bolt 5/16-18 unc x 3/4 HUS-532171877
...
114
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
115
BOLT, CARRIAGE 5/16-18 X 5/8 HUS-872110505
...
116
BOLT HUS-532004898
...
117
WHEEL GAUGE HUS-532165746
...
118
Nut HUS-873680600
...
119
WASHER HUS-734117201
...
121
SUB= 143723 HUS-532143723
...
128
SUB= 153390 HUS-532153390
...
129
WASHER HUS-734117201
...
130
BOLT FIN HEX 3/8-16 X 1 HUS-874780616
...
131
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
142
ARM SPRING BRAKE MOWER HUS-532165890
...
143
BRKT ARM IDLER HUS-532157109
...
144
KEEPER BELT 42" CLUTCH HUS-532173441
...
145
PULLEY.IDLER.FLAT.PLATED HUS-532173437
...
146
BOLT, CARRIAGE IDLER BLACK HUS-532171977
...
147
SPRING HUS-532179748
...
148
SPRING HUS-532169022
...
149
RETAINER HUS-532169898
...
150
WASHER - M6 HUS-734115201
...
151
BRACKET CLUTCH CABLE HUS-532169670
...
152
KIT.CLUTCH.CABLE HUS-532175067
...
153
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
154
SPRING RETAINER HUS-532169675
...
155
SPRING RETENTION LEVER HUS-532169671
...
156
SPACER HUS-532169672
...
157
ROD HUS-532169669
...
158
HCS 1/4C X 5/8 HUS-539990072
...
159
BOLT HUS-872140614
...
xx
SUB= 130794 HUS-532130794
...
xx
DECK HUS-532169583
