Husqvarna LT150 (1999 & Before) Tractor

Model: LT150 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

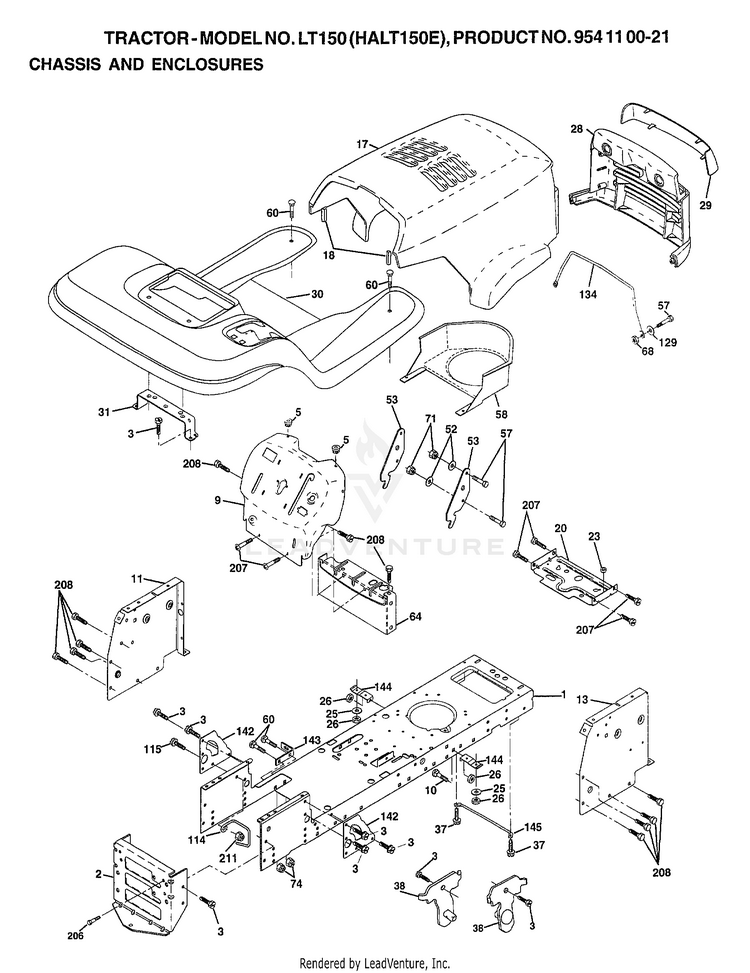

CHASSIS/ENCLOSURES

...
...
1
CHASSIS STAMPING HUS-532169830
...
2
Drawbar HUS-532176554
...
3
Screw Hex Wsh Thdr 3/8-16 x 3/4 HUS-817000612
...
5
SUB= 155272 HUS-532155272
...
9
DASH SILKSCR. HUS-532168337
...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
11
Panel Dash Lh HUS-532174996
...
13
PANEL DASH HUS-532172108
...
17
HOOD - LT/YT HUS-532156051
...
18
"BUMPER,HOOD T" HUS-532126938
...
20
Plate Mtg Battery Fuel Tank Fr HUS-532180679
...
23
GROMMET T HUS-532124028
...
25
WASHER HUS-734117201
...
26
Nut HUS-873680600
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
30
FENDER W/OUT CUP HOLDER HUS-532192813
...
31
SUB= 139976 HUS-532139976
...
37
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
38
Bracket Asm Pivot Mower Rear HUS-532175710
...
51
NUT.1/4C.NYLOC HUS-539976978
...
52
WASHER 9/32 X 7/8 X 16 GA HUS-819091416
...
53
SUB= 150067X431 HUS-532150067
...
57
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
58
SUB= 150127 HUS-532150127
...
60
BOLT HUS-872140606
...
64
SUB= 154798 HUS-532154798
...
68
Nut Crownlock 1/4-20 unc HUS-873680400
...
71
NUT CROWNLOCK 1/4-20 HUS-873680400
...
74
NUT, CROWNLOCK 3/8-16 HUS-873680600
...
114
KEEPER BELT REAR HUS-532158112
...
115
SCREW HUS-817060620
...
129
WASHER 9/32 X 5/8 X 16 GA. HUS-819091016
...
134
"ROD-SUPPORT,HOOD" HUS-532160219
...
142
Plate Reinforcement STLT HUS-532175702
...
143
Bracket Swaybar Chassis HUS-532186689
...
144
Bracket Pnt Footrest STLT HUS-532175582
...
145
Rod Pivot Hood HUS-532409167
...
206
BOLT SHOULDER HUS-532170165
...
207
SCREW HUS-817670508
...
208
SCREW HUS-817670608
...
211
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
xx
SUB= 5479J HUS-532005479
