Husqvarna LT141 - 96011029402 (2011-09) Tractors/Ride Mower

Model: LT141 - 96011029402 (2011-09)

Save Part Not Listed?
product name

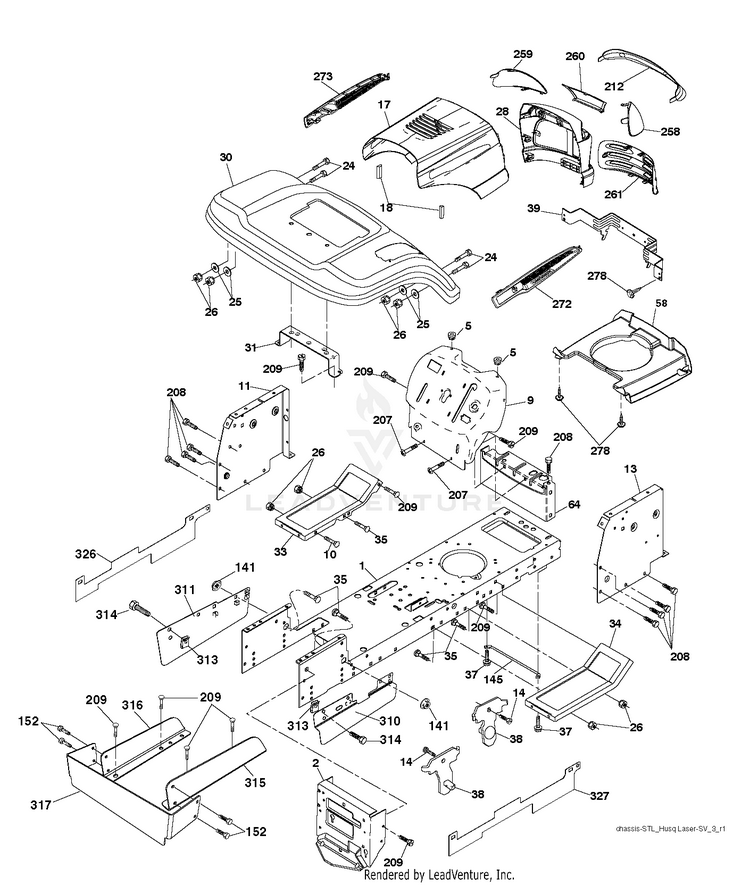

CHASSIS & ENCLOSURES

...
...
34
FOOTREST.RH.BLACK HUS-532182508
...
273
HUS-532442199
...
326
HUS-532430227
...
152
Screws HUS-596437001
...
13
PANEL DASH RH HUS-532181719
...
316
HUS-532422868
...
258
LENS.HUSQ.LASER LT.CLEAR.RH HUS-532183379
...
278
Screws HUS-596321701
...
317
HUS-532422860
...
33
FOOTREST.LH.BLACK HUS-532182507
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
- -
PLUG BUTTON T HUS-532005479
...
35
Bolts HUS-596136001
...
212
INSERT.LENS.REFLECTIVE HUS-532183548
...
58
HUS-532184270
...
260
COVER.LENS.HUSQ.LASER.LT.498 HUS-532442202
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
2
DRAWBAR, 12GA HUS-532176554
...
24
Bolts HUS-596564401
...
314
SCREW.1/4-20X5/8 HUS-532137729
...
315
HUS-532422866
...
310
HUS-532422766
...
145
ROD.PIVOT.HOOD HUS-532409167
...
26
Nuts HUS-596322601
...
30
FENDER.PNT.LTST.W/S.N/C.668ROS HUS-584378001
...
311
HUS-532422767
...
28
GRILLE.HUSQ.LASER.LT.668 HUS-532442203
...
18
BUMPER.HOOD.LARGE.1.75" HUS-532184921
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
327
HUS-532430225
...
272
VENT.HOOD.LASER.III.SD.RH HUS-532442200
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
313
CLIPS HUS-532196688
...
64
DASH LOWER HUS-532154798
...
14
Bolts HUS-596564001
...
259
LENS.HUSQ.LASER LT.CLEAR.LH HUS-532183378
...
141
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
261
INSERT.GRILLE.HUSQLASER.LT.498 HUS-532442201
...
17
KIT.HOOD.PNT.STEEL.LASER.SV668 HUS-588251301
...
39
BRACKET PIVOT HUS-532407807
...
37
Screws HUS-596030701
...
25
GSPH HUS-596134901
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
31
BRACKET FENDER HUS-532136619
...
9
DASH.SLKSCR.SL.PL.C.NA.NHMHUS HUS-532415943
...
10
Bolts HUS-596728201

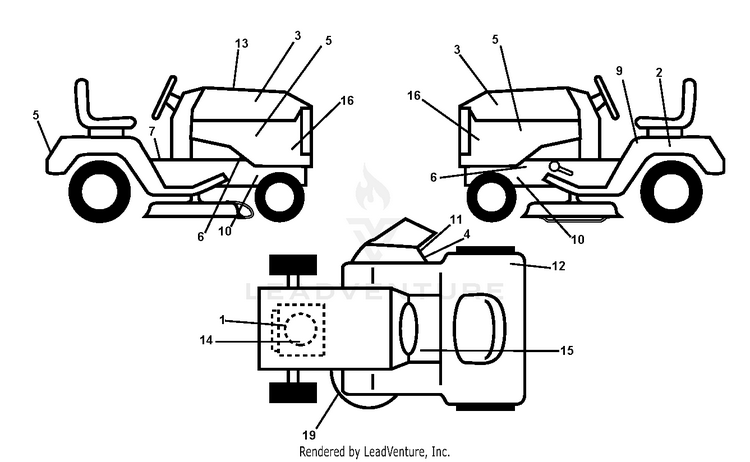

DECALS

...
...
11
DECAL.CUTFINGER.CE.02 HUS-581579101
...
12
Decal, Fender 100 DB/CE HUS-532180432
...
16
HUS-532440502
...
14
DECAL.ENG.BS.PB4.145SER.279690 HUS-583518601
...
- -
DECAL.TRACTOR.6MIL.H/ADJUST HUS-581724901
...
15
DECAL.WARN.DFLCTR/CTFNGR.SRD. HUS-581579301
...
10
DECAL HUS-532159736
...
5
DECAL HOOD HUS-585160601
...
19
NEEDS DESCRIPTION HUS-531229003
...
7
DECAL.PARKING.BRAKE.SADDLE.LT HUS-581578001
...
1
DECAL.ENGINE.WARNING HUS-581579701
...
3
HUS-532415558
...
2
DECAL BTRY SYMBOLS HUS-532145005
...
6
HUS-532401146
...
4
DECAL.DFLCTR.WARNNG.CTFNGR.SYM HUS-581579201
...
13
HUS-532442150
...
- -
DECAL.DRAWBAR.LDL HUS-584449901
...
9
DECAL.READ.OWN.MAN.SYMBOL.LT HUS-581578101

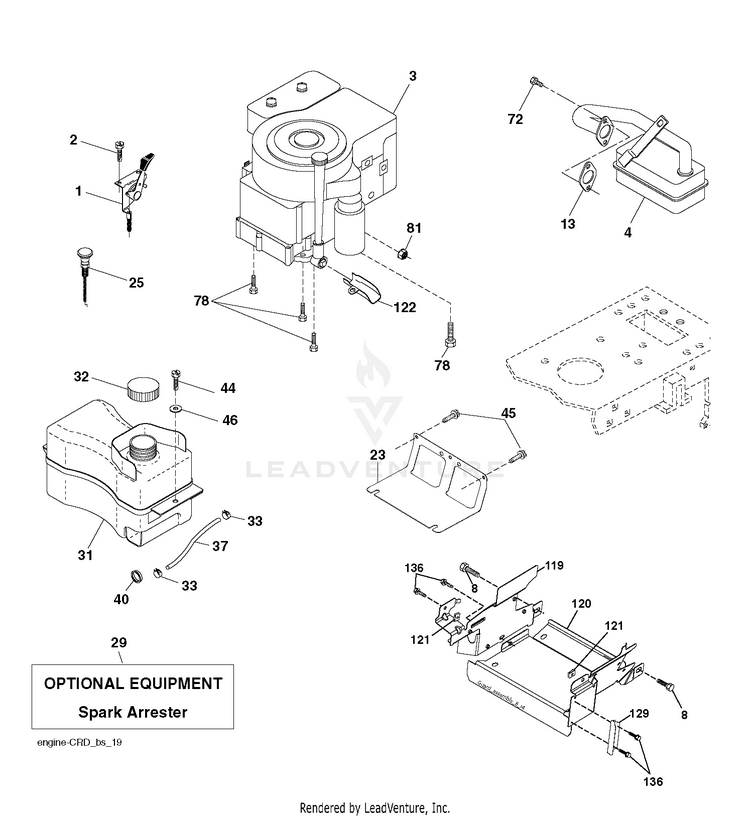

ENGINE

...
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
122
EXTENSION DRAIN OIL HUS-532421922
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
4
MUFFLER.LT.BRIGGS.14HP.IC/OHV HUS-532137352
...
33
HOSE CLAMP HUS-532123487
...
121
CLIPS HUS-532196688
...
1
CONTROL.THROTTLE/CHOKE.BLACK HUS-532170551
...
46
Washers HUS-596135301
...
78
SCREW.3/8-16 HUS-817060620
...
3
ENGINE B&S MODEL 31A507-2391-B1 (438618) HUS-000000000
...
136
SCREW.1/4-20X5/8 HUS-532137729
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
120
HUS-532197948
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
119
HUS-532197949
...
31
HUS-532407516
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
2
Screws HUS-596437001
...
129
HUS-532400328
...
72
Screws HUS-596134201
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
25
KNOB.ERGO.EXTENDED.RED (1 2) HUS-532190695

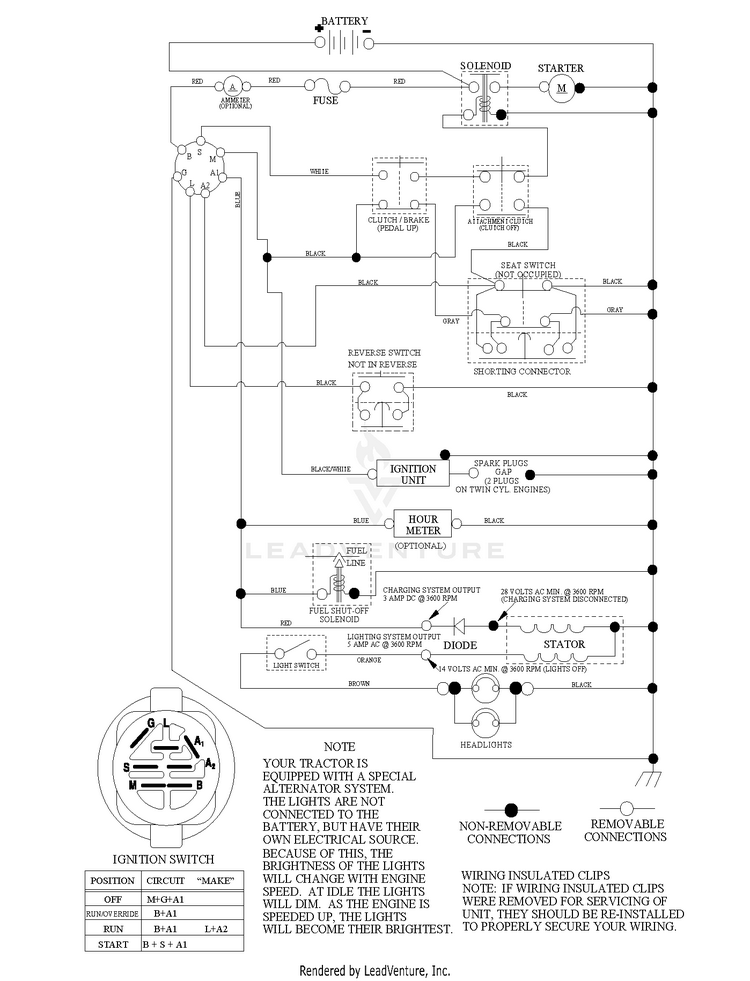

SCHEMATIC

...

No Parts Available for this Schematic

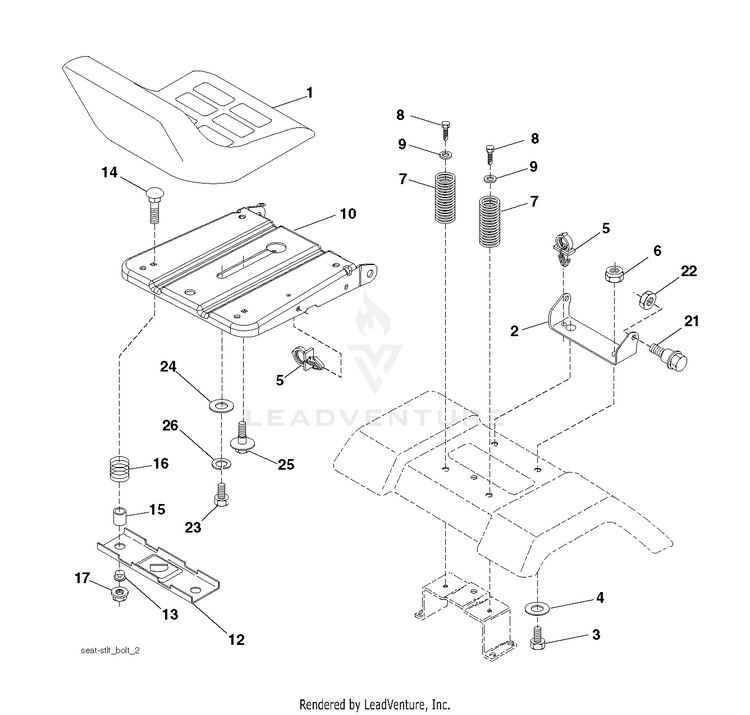

SEAT

...
...
24
WASHER HUS-819171912
...
4
WASHER PM HUS-819131610
...
15
SPACER SPLIT 28X.96 HUS-532134300
...
23
BOLT.HEX.BLACK HUS-871110814
...
22
Hardware HUS-596040501
...
25
BOLT,SHOULD HUS-532127018
...
8
SCREW 3/8-16X1 HUS-817000616
...
14
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
13
BUSHING HUS-532121248
...
5
PUSH CLIP HUS-532145006
...
3
BOLT, HEX 3/8-16X1 HUS-871110616
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
6
Nuts HUS-596322601
...
9
Washers HUS-596140201
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
1
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
16
SPRING HUS-532121250
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
26
LOCKWASHER HUS-810040800
