Husqvarna LT131 - 96011026405 (2010-11) Riding Tractor

Model: LT131 - 96011026405 (2010-11)

Back To Assemblies

Save Part Not Listed?
product name

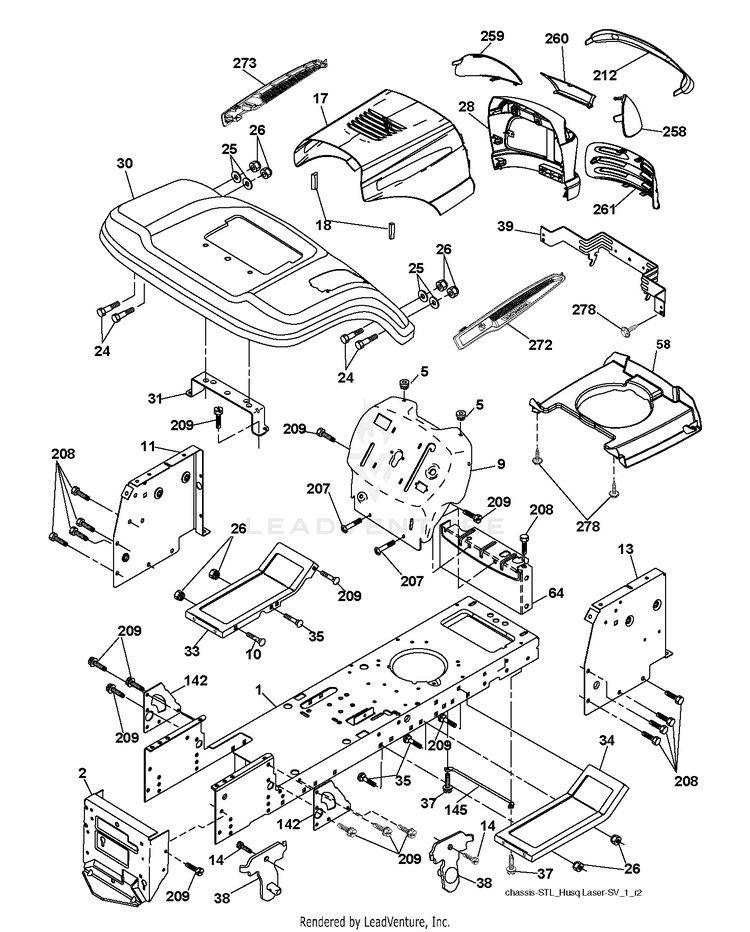

CHASSIS & ENCLOSURES

...
...
34
FOOTREST.RH.BLACK HUS-532182508
...
10
Bolts HUS-596728201
...
18
BUMPER.HOOD.LARGE.1.75" HUS-532184921
...
35
Bolts HUS-596136001
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
14
Bolts HUS-596564001
...
272
VENT.HOOD.LASER. HUS-532188896
...
39
BRACKET PIVOT HUS-532407807
...
25
GSPH HUS-596134901
...
37
Screws HUS-596030701
...
13
PANEL DASH RH HUS-532181719
...
- -
PLUG BUTTON T HUS-532005479
...
24
Bolts HUS-596564401
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
9
DASH.SLKSCR.SL.PL.C.NA.NHMHUS HUS-532415943
...
260
COVER.LENS.HUSQ.LASER.LT.498 HUS-532442202
...
17
KIT.HOOD.PNT.STEEL.LASER.SV668 HUS-588251301
...
259
LENS.HUSQ.LASER LT.CLEAR.LH HUS-532183378
...
30
FENDER.PNT.LTST.W/S.N/C.668ROS HUS-584378001
...
278
Screws HUS-596321701
...
212
INSERT.LENS.REFLECTIVE HUS-532183548
...
33
FOOTREST.LH.BLACK HUS-532182507
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
64
DASH LOWER HUS-532154798
...
26
Nuts HUS-596322601
...
58
HUS-532184270
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
273
VENT.HOOD.LASER. HUS-532188895
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
142
PLATE REINFORCEMENT HUS-532175702
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
145
ROD.PIVOT.HOOD HUS-532409167
...
28
HUS-532183538
...
258
LENS.HUSQ.LASER LT.CLEAR.RH HUS-532183379
...
31
BRACKET FENDER HUS-532136619
...
261
HUS-532185212
...
2
DRAWBAR, 12GA HUS-532176554
...
5
BUMPER.RUBBER.HOOD HUS-532155272
