Husqvarna LT131 - 96011026405 (2010-11) Riding Tractor

Model: LT131 - 96011026405 (2010-11)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

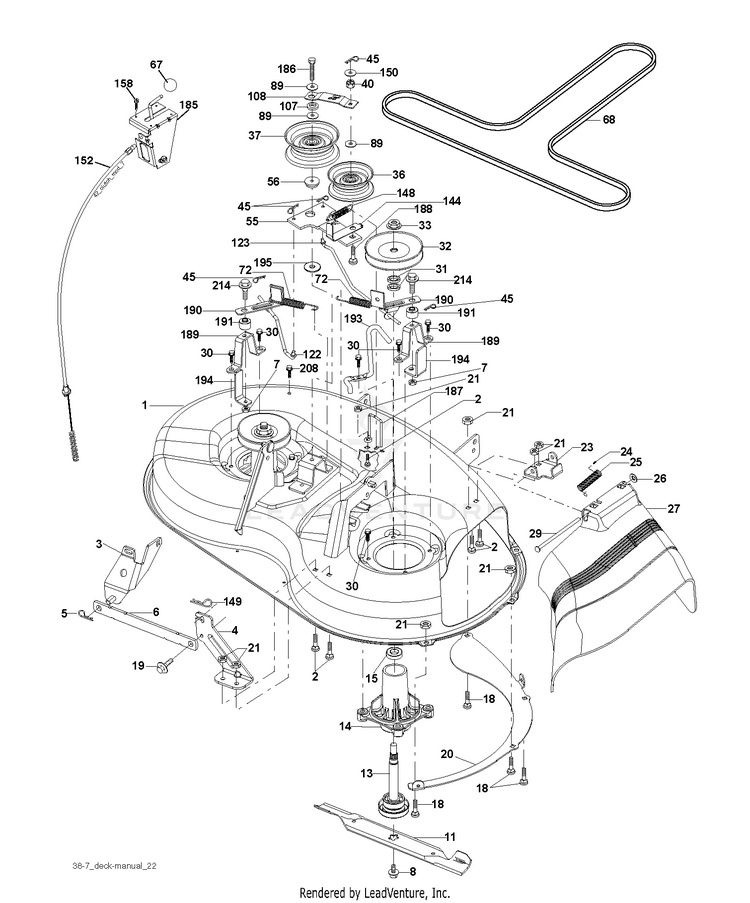

MOWER DECK / CUTTING DECK

...
...
89
GSPH HUS-596134901
...
37
PULLEYS HUS-596481402
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
189
BRAKE.ASSY.38"2005.+ HUS-532192558
...
68
V-BELT.MOWER.38"2005+ HUS-532193214
...
29
Rods HUS-595297001
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
191
BRAKE.SPACER.38".DECK HUS-532192561
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
24
CAP-SLEEVE LT HUS-532105304
...
2
GSPW Bolts HUS-595901601
...
107
SPACER.IDLER.ARM HUS-532133502
...
144
SERVICE.KIT KEEPER BELT KEEPER HUS-531148901
...
15
BEARING HUS-532110485
...
21
Hardware HUS-596040501
...
40
Nuts HUS-596322601
...
5
RETAINER-SPRNG RB HUS-532124670
...
- -
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
26
NUT PUSH M HUS-532110452
...
148
IDLER RETURN SPRING HUS-532169022
...
185
HEAD ASM. CABLE CLUTCH HUS-532188234
...
152
CABLE.CLUTCH.38".SERVICE HUS-532193235
...
108
SERVICE KIT STIFFENER STIFFENE HUS-531150801
...
188
BOLT CARRIAGE IDLER HUS-532173443
...
33
Nuts HUS-596134801
...
123
LINK.BRAKE.38"RIGHT HUS-532410190
...
1
DECK SVCX1 38/94 192556X431 HUS-532192556
...
190
BRAKE.ASSY.38"2005.+ HUS-532192558
...
214
BOLT/WASHER ASM 5/16-18 HUS-532193782
...
193
KEEPER BELT RH MANDREL HUS-532193413
...
187
KEEPER BELT HUS-532193412
...
27
SHIELD.DEFLECTOR.MWR.38-7/97CM HUS-532401472
...
55
SERVICE.KIT IDLER ARM HUS-531164901
...
150
Washers HUS-596039801
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
122
LINK.BRAKE.38"LEFT.2007 HUS-532410189
...
3
BRKT ASM SWAY BAR HUS-532138017
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
36
CLG HUS-597025001
...
19
BOLT SHD 5/16-18 HUS-532132827
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
158
Screws HUS-596437001
...
- -
BRAKE.ASSY.38"2005.+ HUS-532192558
...
194
BRAKE.ASSY.38"2005.+ HUS-532192558
...
72
SPRING.BRAKE.RETURN.38" HUS-532193216
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
20
SERVICE KIT BAFFLE BAFFLE.VORT HUS-531170401
...
4
BRACKET DECK SWAY BAR 38"/42" HUS-532192568
...
- -
HUS-532432031
...
195
Washers HUS-596135501
...
18
BOLT HUS-872140505
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
45
RETAINER M HUS-532004497
...
186
BOLT HUS-596564005
...
11
BLADE.2 IN 1.38"DECK.BLACK HUS-581116302
...
7
Hardware HUS-596040501
...
...
...
