product name

Husqvarna LT130 - HF13C36C (1998-12) Riding Tractor

Model: LT130 - HF13C36C (1998-12)

Save Part Not Listed?
product name

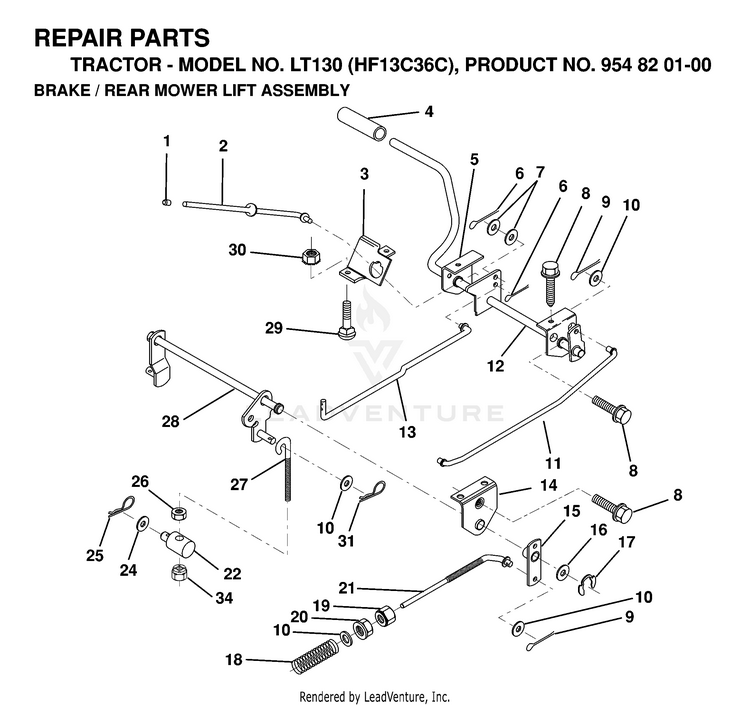

BRAKE / REAR MOWER LIFT

...
...
19
NUT.HEX.3/8-16UNC HUS-873220600
...
8
Screws HUS-596030701
...
3
BRKT,PARK BRAKE HUS-532123437
...
28
REAR MOWER LIFT ASSY HUS-532140776
...
7
WASHER HUS-819131016
...
5
BRKT,CLU PEDAL LH HUS-532122504
...
27
LINK.MOWER.REAR HUS-532127369
...
22
TRUNNION, LEFT HUS-532144585
...
21
CLUTCH KIT HUS-532131461
...
30
Hardware HUS-596040501
...
11
ROD,FRT BRAKE HUS-532123543
...
24
GSPH HUS-596134901
...
17
Ring, Klip Truarc #5304-75 HUS-812000034
...
14
BRKT,LIFT SHAFT HUS-532121978
...
20
Nuts HUS-596322601
...
4
FOOT PEDAL COVER HUS-532008156
...
1
PLUNGER CAP HUS-532071673
...
2
ROD,PARK BRAKE HUS-532123436
...
10
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
9
Pins HUS-596029501
...
25
COTTER PIN HUS-532004921
...
34
Nuts HUS-596322601
...
31
SPRING RETAINER HUS-532003146
...
6
Pins HUS-596917601
...
16
WASHER T HUS-819251816
...
29
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
12
CLUTCH/BRAKE PEDAL ASSY HUS-532139933
...
15
ARM, BRAKE ASMBLY HUS-532133332
...
13
ROD,CLUTCH HUS-532123394
...
26
Nuts HUS-596322601
...
18
SPRING, BRAKE ROD HUS-532151332

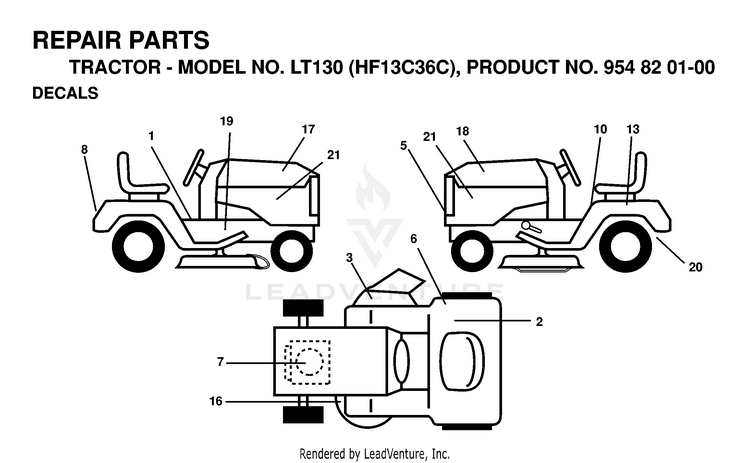

DECALS

...
...
17
DECAL HUS-532151986
...
- -
Mulcher Kit HUS-MK360
...
8
DECAL FENDER HUSQ *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532150617
...
13
DECAL BTRY SYMBOLS *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532145005
...
6
DECAL EUROPE STANDARD CE *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532145437
...
21
DECAL PNL SIDE HUS-532159713
...
3
DECAL MOWER CUT/FINGER *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532145494
...
16
DECAL *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532136830
...
2
DECAL CERTIFICATION *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532126187
...
10
DECAL READ OWNER'S MAN SYMS *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532145498
...
5
DECAL.GRILLE.HUSQ *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532150616
...
- -
DECAL.TRACTOR.6MIL.H/ADJUST *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-581724901
...
7
NEEDS DESCRIPTION *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532165363
...
1
Decal, Brake/Clutch Symbols *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532159739
...
18
DECAL HUS-532151987
...
- -
Grass Catcher HUS-C36
...
19
DECAL *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-532159736
...
- -
Manual, Operator's (Euro.) HUS-532157035
...
20
DECAL.DRAWBAR.LDL *NOTE: NOT IN STOCK, BUT CAN BE DELIVERED DIRECTLY FROM FACTORY. HUS-584449901

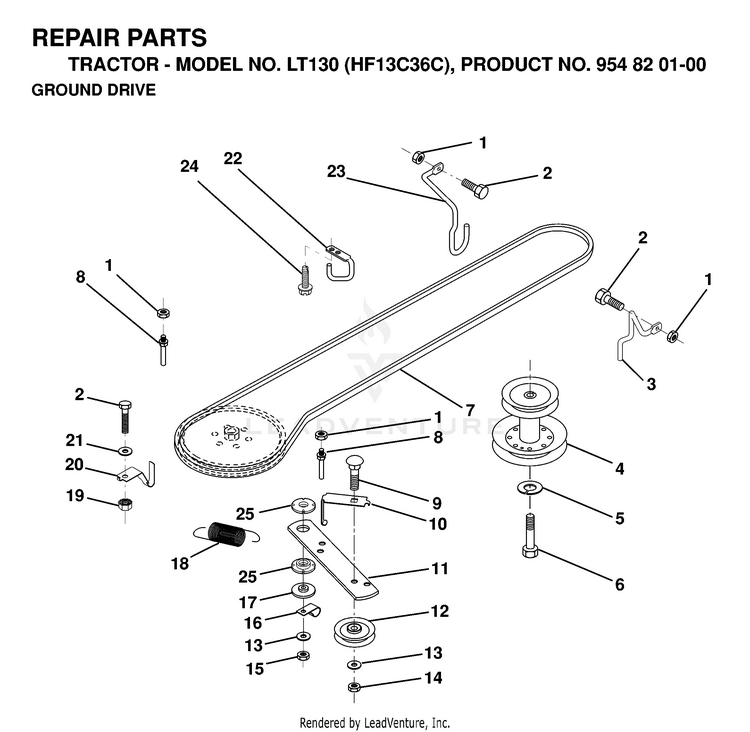

DRIVE

...
...
16
CLIP,INSULATOR HUS-532126471
...
21
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
10
KEEPER.BELT.GROUND.DRIVE.IDLER HUS-532123396
...
14
Nuts HUS-596322601
...
22
KEEPER,FRA DR BEL HUS-532123404
...
2
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
20
KEEPER-T/A GROUND DRIVE BELT HUS-532139919
...
9
Bolt, Carriage 3/8-16 UNC x 1-1/2 HUS-872140612
...
12
PULLEY.IDLER.FLAT HUS-532123674
...
6
Bolt, Hex Hd. 7/16-20 UNF Grade 5 HUS-871170744
...
17
SPACER, RETAINER HUS-532150932
...
24
Screws HUS-596437001
...
19
Hardware HUS-596040501
...
11
ARM, GROUND DRIVE CLUTCH HUS-532150926
...
23
KEEPER-MOWER DRIVE LH HUS-532140916
...
8
BELT KEEPER KIT HUS-532156109
...
15
Nuts HUS-596322601
...
13
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
3
KEEPER/MOWER DRIVE RH HUS-532141342
...
7
BELT HUS-531005025
...
1
Hardware HUS-596040501
...
5
Washers HUS-596238901
...
4
PULLEY.ENGINE.36/38 LR HUS-532138029
...
18
SPRING.EXTENSION HUS-532131459
...
25
BUSHING NYLON COLLERED HUS-532150935

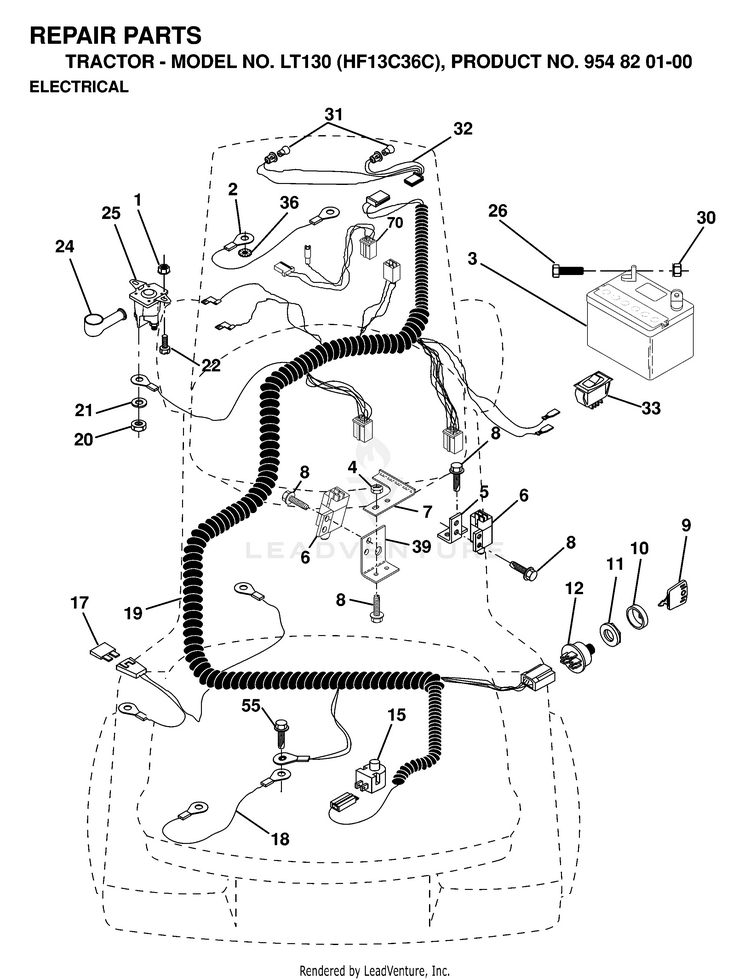

ELECTRICAL

...
...
55
Screws HUS-596030701
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
70
HARNESS, ENGINE HUS-532140413
...
30
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
36
Washer, Lock, Internal Tooth 1/4 HUS-811150400
...
11
KIT-WASHER/NUT HUS-532145774
...
12
KIT.SWITCH.IGN.3-POS.NUT.MNT.D HUS-532178744
...
32
HARNESS HEADLIGHT HUS-532142881
...
24
COVER.TERMINAL.RED HUS-532154336
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
15
SWITCH.SNAPMOUNT.NC HUS-532421062
...
19
HARNESS IGN LR NLA HUS-532146064
...
9
KEY MLD GEN DELTA HUS-532140401
...
22
Screws HUS-596437001
...
2
CABLE.BATTERY.6GA.16"RED HUS-532108423
...
10
COVER SWITCH KEY HUS-532141226
...
1
Nut, Keps Blk Hex 1/4-20 UNC HUS-873640400
...
31
LIGHTBULB HUS-532004152
...
18
CABLE ASSY HUS-532128353
...
25
KIT SOLENOID .95 HUS-532146154
...
5
BRACKET LT HUS-532108236
...
8
SCREW HUS-817021008
...
17
FUSE HYT HUS-532108824
...
21
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
4
LOCKNUT HUS-532069180
...
7
KEEPER, ACTUAT. L.R. HUS-532146374
...
3
BATTERY.DRY.30.AMP HUS-532123899
...
33
SWITCH LT HUS-532110712
...
39
BRACKET HUS-532141735
...
6
SWITCH, INTERLOCK HUS-539101080

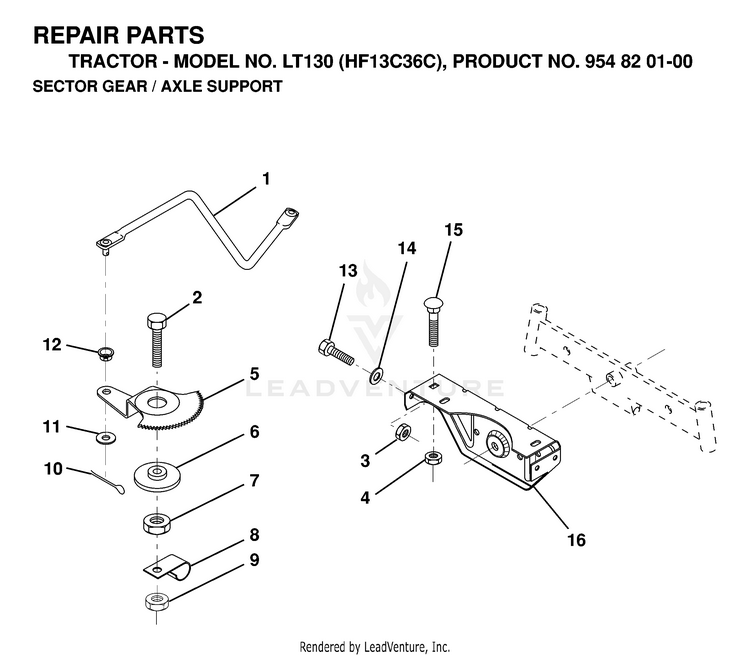

SECTOR GEAR / AXLE SUPPORT

...
...
4
Nuts HUS-596322601
...
3
Hardware HUS-596040501
...
10
Pins HUS-596029501
...
7
Nuts HUS-596433401
...
8
CLIP INSULATOR HUS-532126472
...
13
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
15
Bolts HUS-596136001
...
1
LINK DRAG HUS-532132566
...
14
WASHER - 25X8.5X2.3 HUS-734116541
...
6
BUSHING HUS-532121927
...
16
SUPPORT/AXLE FRONT HUS-532137096
...
9
Nuts HUS-596433401
...
5
GEAR SECTOR HUS-532121926
...
11
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
2
BOLT,HEX HUS-874780828
...
12
BUSHING.DRAGLINK (2 2) HUS-532126847

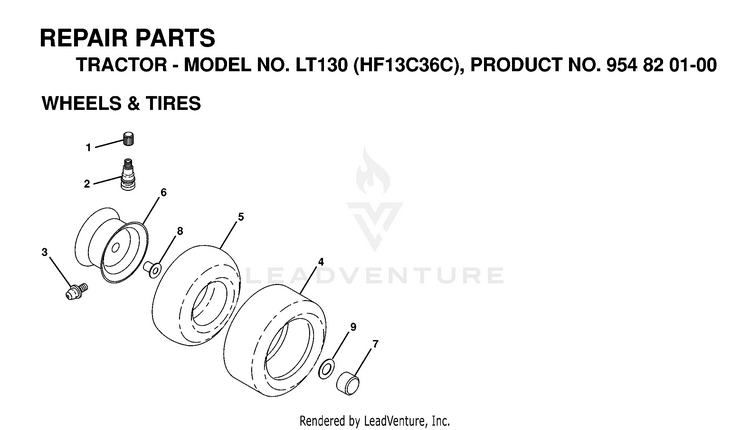

WHEELS & TIRES

...
...
9
WASHER HUS-532121748
...
1
VALVE CAP HUS-532059192
...
2
VALVE STEM LT HUS-532065139
...
3
FITTING LT. HUS-532000278
...
5
TUBE.16X6.5/7.5-8 HUS-532008134
...
4
REAR TIRE HUS-532132703
...
4
TIRE.15X6-6.TURF.SAVER.FRONT HUS-532122073
...
8
BEARING.FLANGE HUS-532009040
...
6
FRONT RIM 6" WHITE HUS-532137237
...
6
RIM REAR 8" HUS-532141652
...
7
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
5
TUBE.5.3/4.5/6 HUS-532059904
