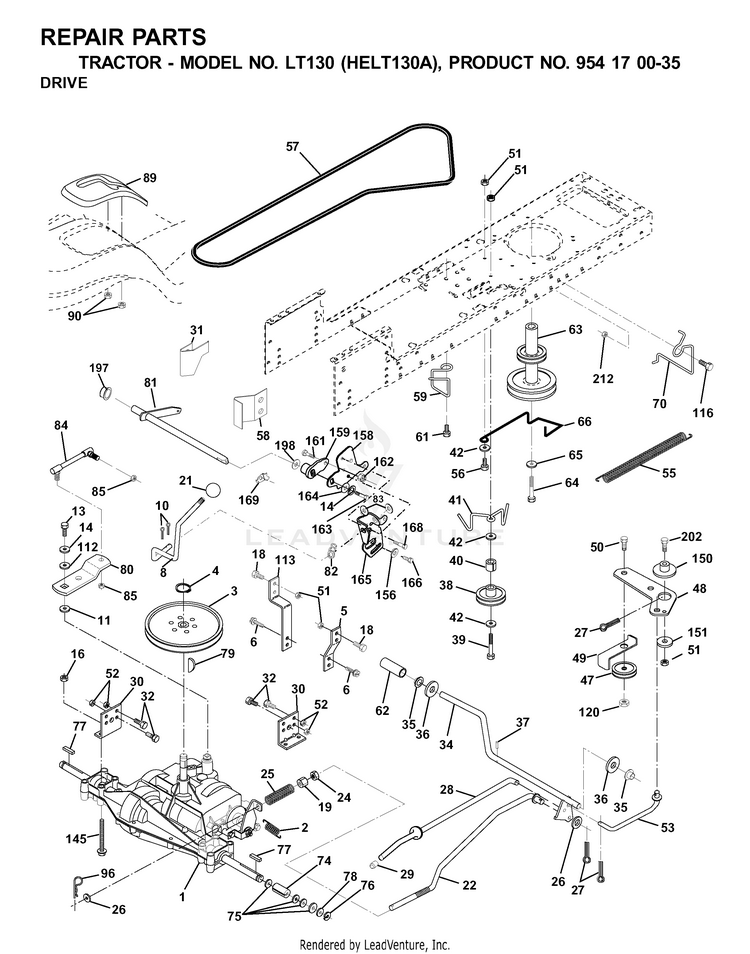

Husqvarna LT130 - HELT130A (2001-01) Riding Tractor

Model: LT130 - HELT130A (2001-01)

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
96
RETAINER M HUS-532004497
...
169
PLATE.FASTENING.CROSS.SHAFT HUS-532165580
...
57
BELT, V GROUND DRIVE 95 25 HUS-532138255
...
34
SHAFT, FOOT PEDAL HUS-532155071
...
64
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
29
PLUNGER CAP HUS-532071673
...
32
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
151
Washers HUS-596135501
...
163
Screws HUS-596230901
...
70
SERVICE KIT KEEPER BELT HUS-531165301
...
168
BOLT.SHOULDER.5/16-18X HUS-532165492
...
79
KEY STD (1373) DANA HUS-532125096
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
74
SPACER AXLE HUS-532137057
...
159
HUB.SHIFT HUS-532444304
...
90
NUT.PUSH.3/16 HUS-532124346
...
81
SHAFT ASM CROSS TAPERED HUS-532165594
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
6
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
80
ARM SHIFT HUS-532131486
...
84
Links HUS-597068801
...
75
WASHER HUS-532121749
...
161
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
25
SPRING, BRAKE ROD HUS-532151332
...
85
NUT LOCK CENTER 1/4 -28 FNTHD HUS-532150360
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
78
WASHER HUS-532121748
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
61
SCREW, 3/8-16X3/4 HUS-817000612
...
42
GSPH HUS-596134901
...
48
BELLCRANK, CLUTCH HUS-532154407
...
8
ROD SHIFT FENDER ADJUST STLT HUS-532165866
...
22
ROD BRAKE HUS-532130804
...
2
SPRING,BRAKE RETURN HUS-532146682
...
66
SERVICE KIT BELT KEEPER HUS-531151001
...
55
SPRING, RETURN LT HUS-532105709
...
62
PAD, FOOT PEDAL HUS-510089501
...
72
GSPH HUS-596134901
...
36
Washers HUS-596933401
...
150
BUSHING.BELLCRANK.GRD.DR HUS-532165850
...
28
ROD BRAKE PARK LT HUS-532145204
...
162
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
40
SPACER T HUS-532124965
...
47
PULLEY IDLER HUS-532139245
...
35
BEARING.NYLON HUS-532120183
...
16
Hardware HUS-596040501
...
51
Nuts HUS-596322601
...
197
NYLINER SNAP 5/8" ID HUS-532169613
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
10
Pins HUS-596029601
...
82
SHIFT SPRING HUS-532165711
...
52
Hardware HUS-596040501
...
4
RETAINING RING LT HUS-812000028
...
158
BRACKET.SHIFT.MOUNT HUS-532437458
...
30
BRACKET TRANSAXLE HUS-532130807
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
31
KEEPER BELT LH HUS-532127275
...
13
Bolts HUS-596136601
...
11
WASH-SHFT PLT LT HUS-532105701
...
165
SERVICE KIT BRACKET BRACKET.PI HUS-531149501
...
41
KEEPER.BELT.IDLER.FLAT HUS-532165838
...
38
CLG HUS-597025001
...
58
KEEPER HUS-532127274
...
76
E-RING LT HUS-812000001
...
83
BUSHING HUS-734117771
...
113
SERVICE KIT STRAP STRAP TORQUE HUS-531150301
...
14
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
56
BOLT HUS-874760620
...
156
Washers HUS-596218801
...
198
WASHER.NYL.7/8IDX.105"HYD CR HUS-532169593
...
116
Bolts HUS-596987501
...
27
Pins HUS-596029501
...
59
KEEPER, BELT CENTER HUS-532169691
...
77
SQUARE KEY HUS-532123583
...
5
STRAP TORQUE HUS-532121520
...
18
Bolts HUS-596564401
...
19
Nuts HUS-596322601
...
164
Washer 5/8 x .281 x 10 Ga. HUS-819091010
...
63
PULLEY.ENG.CL.MECH.SLVR.LT/YT HUS-532140186
...
89
BRACKET HUS-532166561
...
202
GSPW Bolts HUS-596136101
...
3
PULLEY TRANS HUS-532123666
...
21
KNOB.DUCKHEAD.1/2 HUS-532121274
...
166
SCREW HUS-532166880
...
39
BOLT HUS-874760644
...
65
Washers HUS-596238901
...
145
Bolts HUS-596136501
...
112
Washers HUS-596039801
