Husqvarna LT130 - 954140004A (1996-12) Riding Tractor

Model: LT130 - 954140004A (1996-12)

Back To Assemblies

Save Part Not Listed?
product name

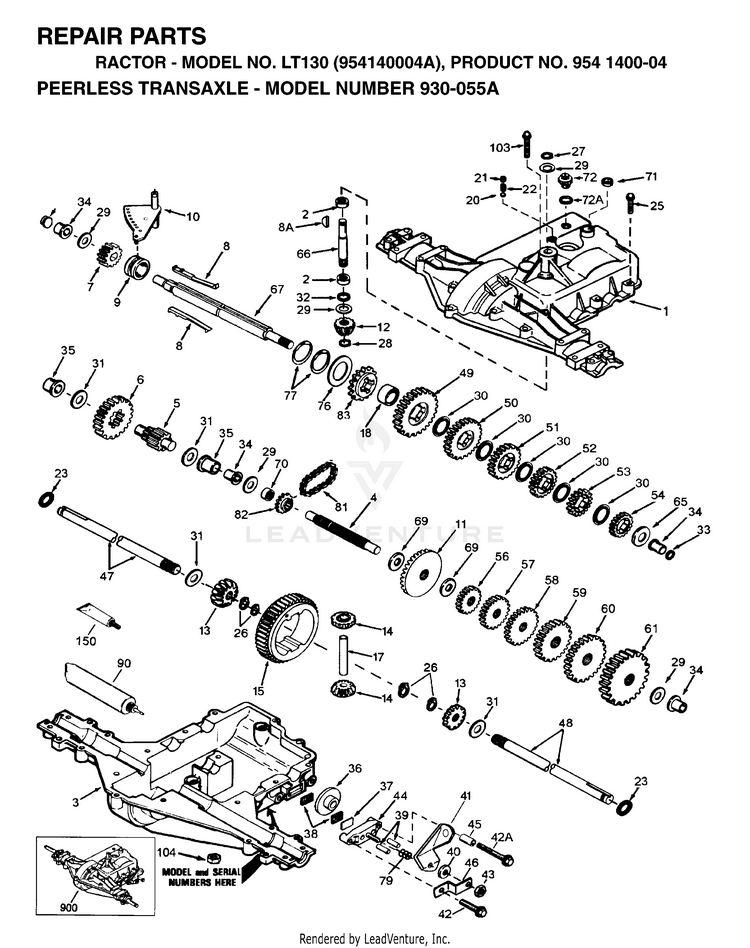

TRANSMISSION

...
...
41
Lever, Brake HUS-790079
...
23
Ring, Seal HUS-788061
...
44
Holder, Brake pad HUS-790025
...
31
Washer (.056 wide) HUS-780001
...
43
Lock Nut 5/16-24 HUS-792075
...
39
Pin, Dowel HUS-786026
...
25
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 HUS-792073
...
18
Spacer, Neutral HUS-786102
...
33
Seal, Square Cut HUS-788095
...
45
Spacer (1/2" OD) HUS-786066
...
48
Axle (16-1/2" long) HUS-774691
...
40
Washer, Flat HUS-792076A
...
29
Washer, Thrust HUS-780072
...
28
Ring, Retaining HUS-788040
...
42A
Screw, 1 /4-20 x 2-1 /4" HUS-792085A
...
61
Gear, Spur, 31 Teeth (5 th) HUS-778163
...
150
Gasket Eliminator (Loctite No. 515) HUS-510334
...
38
Brake Pad (pkg of 2) HUS-799021
...
47
Axle (11-15/16" long) HUS-774690
...
30
Washer, Thrust HUS-780108
...
71
Seal, Square Cut HUS-788069
...
900
6-Speed Replacement Transaxle HUS-794603
...
36
Disk, Brake HUS-790003
...
56
Gear, Spur, 12 Teeth (1 st) HUS-778230
...
20
Ball, Steel 5/16" diameter HUS-792077
...
49
Gear, Spur, 37 Teeth, Steel (1 st) HUS-778215
...
22
Spring HUS-792079
...
15
Gear, Ring HUS-778260
...
27
Retaining Ring HUS-792035
...
69
Thrust Washer (.762 ID) HUS-780051
...
26
Ring, Retainer (4 Required, Package of 2) HUS-792125
...
21
Set Screw 3/18-16 x 3/8" HUS-792078
...
76
Washer, Thrust HUS-780090
...
79
Piston Assembly HUS-792144
...
46
Bracket, Brake lever HUS-786086
...
11
Bevel Gear (42 teeth-steel) HUS-778229
...
14
Gear, Bevel Pinion HUS-778068
...
2
Bearing, Needle HUS-780086
...
9
Collar, Shifter HUS-784352
...
37
Plate, Brake pad HUS-790007
...
77
Ring, Retaining, Inverted (Package of 2) HUS-788078A
...
81
Chain, Roller (Number 41 Chain, 24 Links) HUS-786081
...
66
Input Shaft (3.687" long) HUS-776135
...
4
Shaft, Counter HUS-776260
...
8A
Woodruff Key No. 9 HUS-792047
...
54
Gear, Spur, 19 Teeth, Steel (4 th) HUS-778273
