Husqvarna LT130 - 954140004A (1996-12) Riding Tractor

Model: LT130 - 954140004A (1996-12)

Back To Assemblies

Save Part Not Listed?
product name

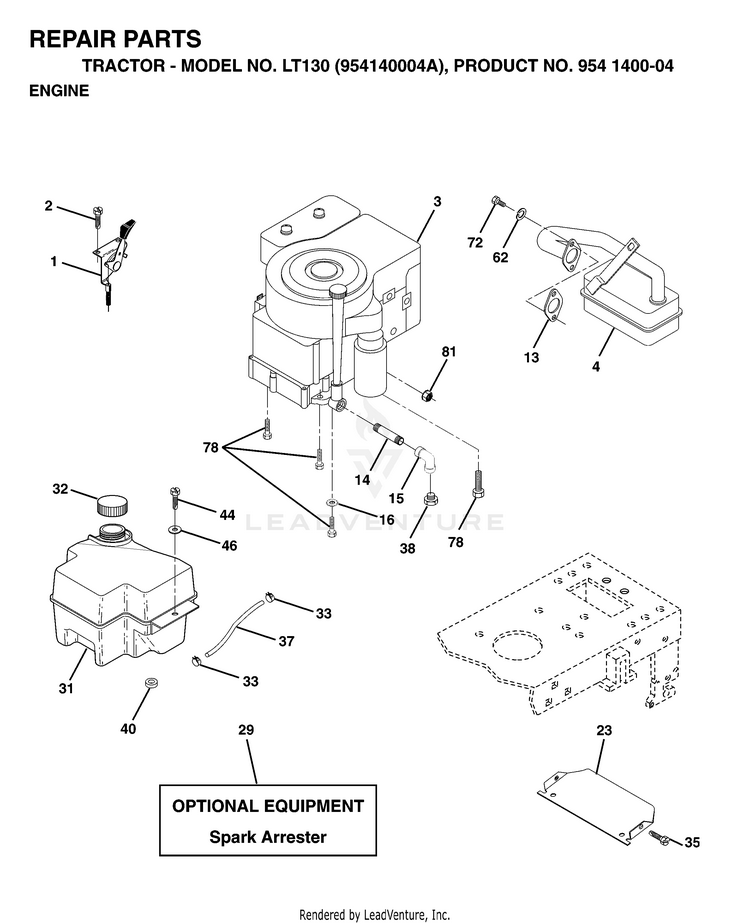

ENGINE

...
...
33
HOSE CLAMP HUS-532123487
...
1
CONTROL.THROTTLE/CHOKE.BLACK HUS-532170551
...
44
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
14
Nipple Pipe 3/8 Npt X 3-1/2 HUS-813280324
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
16
Washers HUS-596238701
...
72
Screws HUS-596134201
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
46
Washers HUS-596135301
...
23
SHIELD HEAT HUS-532156123
...
15
VALUE.OIL.DRAIN HUS-532428287
...
31
GAS TANK 2GAL HUS-532180645
...
78
BOLT HUS-874760620
...
2
Bolts HUS-596582501
...
62
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
4
MUFFLER.SINGLE.B&S.10-12HP HUS-532137348
