Husqvarna LT130 - 954140004A (1996-12) Riding Tractor

Model: LT130 - 954140004A (1996-12)

Back To Assemblies

Save Part Not Listed?
product name

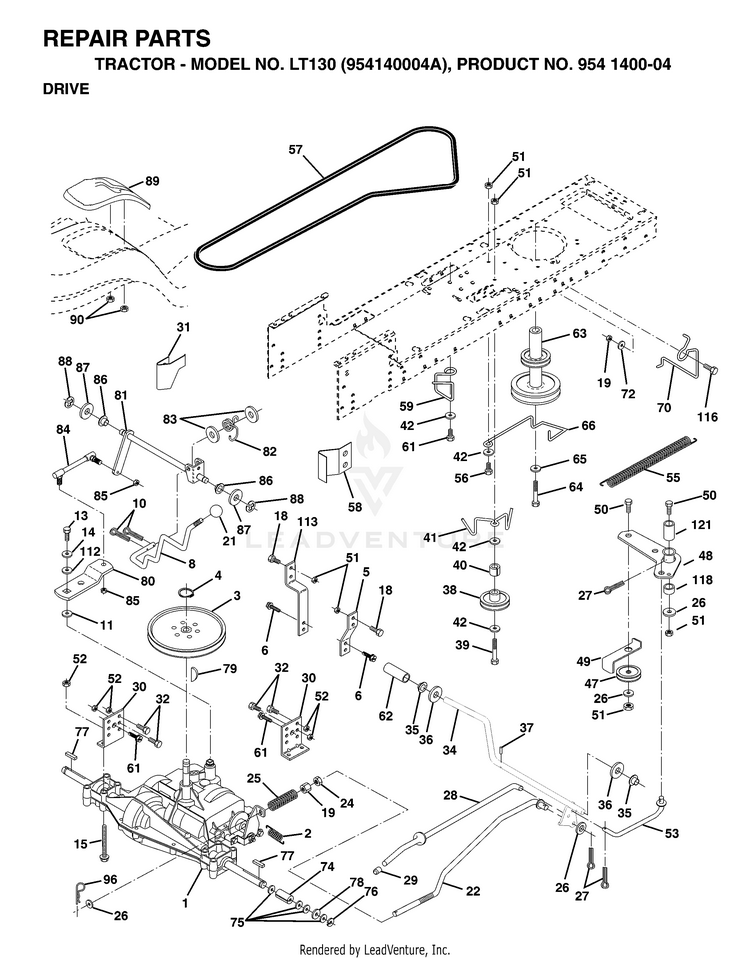

DRIVE

...
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
29
PLUNGER CAP HUS-532071673
...
63
PULLEY.ENG.CL.MECH.SLVR.LT/YT HUS-532140186
...
56
BOLT HUS-874760620
...
25
SPRING, BRAKE ROD HUS-532151332
...
84
LINK, TRANSAXLE HUS-532166230
...
116
Bolts HUS-596987501
...
112
Washers HUS-596039801
...
19
Nuts HUS-596322601
...
30
BRACKET TRANSAXLE HUS-532130807
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
51
Nuts HUS-596322601
...
3
PULLEY TRANS HUS-532123666
...
82
SPRING,TORSION HUS-532123782
...
31
KEEPER BELT LH HUS-532127275
...
77
SQUARE KEY HUS-532123583
...
65
Washers HUS-596238901
...
96
RETAINER M HUS-532004497
...
83
BUSHING HUS-734117771
...
121
NYLINER CLUTCHING HUS-532154419
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
34
SHAFT, FOOT PEDAL HUS-532155071
...
64
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
52
Hardware HUS-596040501
...
113
SERVICE KIT STRAP STRAP TORQUE HUS-531150301
...
80
ARM SHIFT HUS-532131486
...
47
PULLEY IDLER HUS-532139245
...
48
BELLCRANK ASSEMBLY HUS-532154604
...
72
GSPH HUS-596134901
...
74
SPACER AXLE HUS-532137057
...
14
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
40
SPACER T HUS-532124965
...
85
NUT LOCK CENTER 1/4 -28 FNTHD HUS-532150360
...
5
STRAP TORQUE HUS-532121520
...
86
BUSHING.STEERING.ROD LTB-WSL HUS-532071208
...
38
PULLEY.IDLER.FLAT HUS-532123674
...
11
WASH-SHFT PLT LT HUS-532105701
...
22
ROD BRAKE HUS-532130804
...
70
SERVICE KIT KEEPER BELT HUS-531165301
...
42
GSPH HUS-596134901
...
55
SPRING, RETURN LT HUS-532105709
...
78
WASHER HUS-532121748
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
39
BOLT HUS-874760644
...
36
Washers HUS-596933401
...
15
Bolts HUS-595316601
...
118
SPACER BELLCRANK HUS-532154774
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
88
KLIP RING HUS-812000008
...
13
Bolts HUS-596136601
...
61
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
57
BELT, V GROUND DRIVE 95 25 HUS-532138255
...
87
WASHER D HUS-819212016
...
75
WASHER HUS-532121749
...
59
KEEPER, BELT CENTER HUS-532169691
...
58
KEEPER HUS-532127274
...
28
ROD BRAKE PARK LT HUS-532145204
...
18
Bolts HUS-596564401
...
8
ROD SHIFT FENDER HUS-532154792
...
90
NUT.PUSH.3/16 HUS-532124346
...
35
BEARING.NYLON HUS-532120183
...
6
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
81
SHAFT ASM CROSS 20"T HUS-532156043
...
27
Pins HUS-596029501
...
66
SERVICE KIT BELT KEEPER HUS-531151001
...
76
E-RING LT HUS-812000001
...
2
SPRING,BRAKE RETURN HUS-532146682
...
89
CONSOLE.SHIFT.STLT.6SP.BLACK HUS-532166556
...
79
KEY STD (1373) DANA HUS-532125096
...
41
KEEPER.BELT.IDLER.FLAT HUS-532165838
...
21
KNOB.DUCKHEAD.1/2 HUS-532121274
...
32
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
4
RETAINING RING LT HUS-812000028
...
62
PAD, FOOT PEDAL HUS-510089501
...
10
Pins HUS-596029601
