Husqvarna LT130 - 954140004A (1996-12) Riding Tractor

Model: LT130 - 954140004A (1996-12)

Back To Assemblies

Save Part Not Listed?
product name

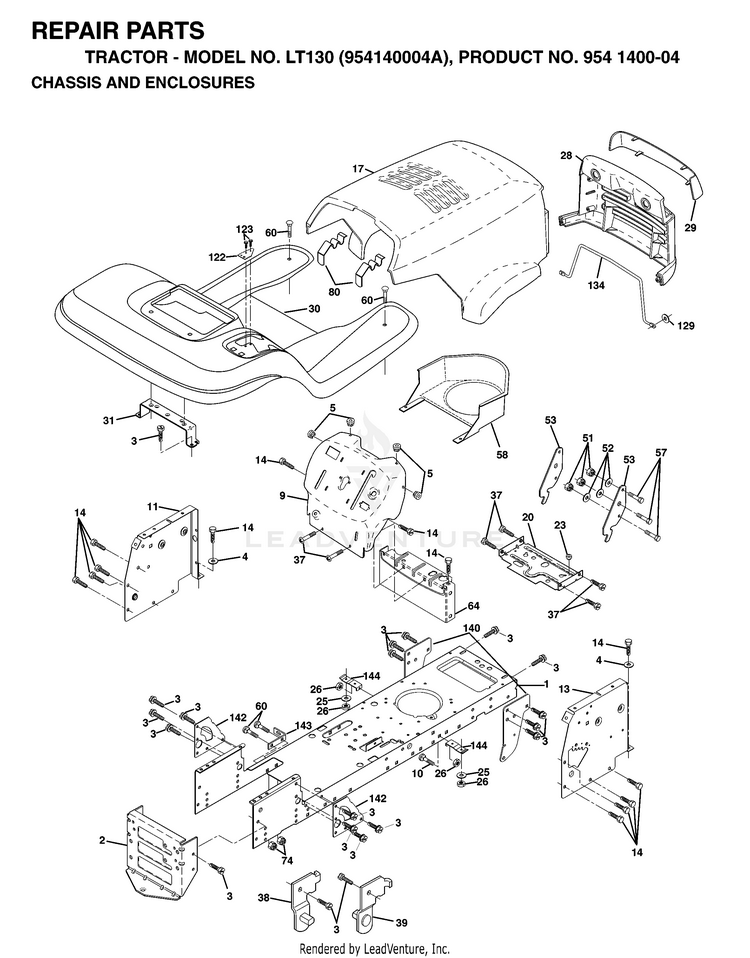

CHASSIS & ENCLOSURES

...
...
9
DASH HUS-532161916
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
57
Screws HUS-596230901
...
146
SCREW TORX HD 5/16X18 HUS-532154334
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
-
PLUG BUTTON T HUS-532005479
...
80
LATCH HOOD HUS-532155854
...
1
CHASSIS KIT HUS-532160525
...
14
Bolts HUS-596564001
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
52
Washers HUS-596135301
...
13
DASH PANEL ASM. HUS-532172107
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
64
DASH LOWER HUS-532154798
...
144
BRKT, FOOT REST HUS-532175582
...
26
Nuts HUS-596322601
...
129
Washers HUS-596582301
...
17
HOOD - LT/YT HUS-532156051
...
25
GSPH HUS-596134901
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
30
FENDER W/OUT CUP HOLDER HUS-532192813
...
58
AIR DUCT P/L/LT HUS-532150127
...
37
Screws HUS-596030701
...
39
BRACKET RH PIVOT HUS-532139887
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
140
BRACKET SUSPENSION FRONT HUS-532158418
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
4
Washer 13/32 X 3/4 X 16 Ga. HUS-819131216
...
134
ROD SUPPORT HOOD LT/PL HUSQ HUS-532150132
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
...
142
PLATE REINFORCEMENT HUS-532175702
...
38
BRACKET LH PIVOT HUS-532139886
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
74
Nuts HUS-596322601
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
10
Bolts HUS-596728201
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
