Husqvarna LT126 - 96041019804 (2013-04) Riding Tractor

Model: LT126 - 96041019804 (2013-04)

Back To Assemblies

Save Part Not Listed?
product name

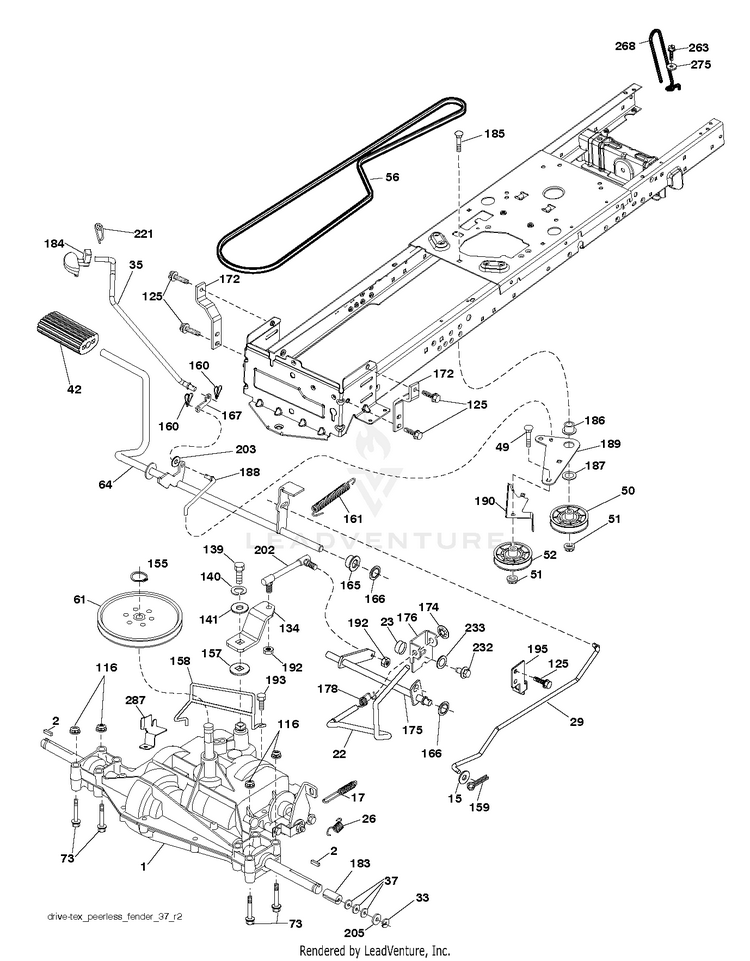

DRIVE 2

...
...
161
SPRING, RETURN LT HUS-532105709
...
92
Screws HUS-595305701
...
197
Stop HUS-585658602
...
29
ROD BRAKE HUS-532418186
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
145
WASHER.AXLE.FLANGE.HG-3000 HUS-532163168
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
211
BEARING.NYLON HUS-532120183
...
159
Pins HUS-596029501
...
166
NUT.PUSH.625 HUS-532429164
...
74
Screws HUS-596134101
...
80
STRAP.TORQUE.YT.G700 HUS-532418184
...
209
ROD ROD.CRUISECONTROL.GT.HUSQ/ HUS-590527802
...
187
Washers HUS-596135501
...
186
SPACER.RETAINER HUS-532194321
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
171
Bolts HUS-596136301
...
185
BOLT HUS-872110622
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
1
Transaxle, Hydro G7-BCBB-1XDC-1FCA (532420331) HUS-000000000
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
207
Latch HUS-587031402
...
286
BOLT.5/16-18X2.5 HUS-872010520
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
183
SPACER HUS-598873001
...
49
Bolts HUS-596136201
...
220
REFLECTOR.RH.TEX GT RH HUS-532198908
...
73
BOLT HEX FLGHD 5/16-18X3 GR. 5 HUS-874490548
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
306
Pins HUS-596029601
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
208
Gears HUS-596564101
...
33
E RING HYT HUS-812000053
...
196
SCREW 3/8-16X1 HUS-817000616
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
70
CONSOLE.ASM.RH.GT.FC.HUSQ HUS-532439661
...
56
Belts HUS-592855001
...
35
ROD ROD.PARKINGBRAKE.GT.HUSQ/P HUS-590605902
...
42
PAD, FOOT PEDAL HUS-510089501
...
153
RETAINER M HUS-532004497
...
121
BRACKET STRAP TORQUE HUS-532175611
...
3
WASHER T HUS-532007563
...
2
KEY, 1/4 SQ X 1 1/4 HUS-539912757
...
7
HUB.PNT.GT.PM.1IN.AXLE.E-DIP HUS-586935402
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
163
ROD PEDAL CONTROL HUS-532418185
...
177
PIN COTTER;LOCKING;BOWTIE;1IN HUS-587225301
...
205
WASHER HUS-532123800
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
215
PEDAL.COVER.REVERSE.CRD.X428BK HUS-586606502
...
9
Bolts HUS-596218701
...
210
ROCKER.ASM.PEDAL.CONTR RH HUS-532197860
...
116
GSPW Nuts HUS-596135701
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
114
Nuts HUS-596583702
...
99
ROD ASSY BYPASS G730 HUS-590640201
