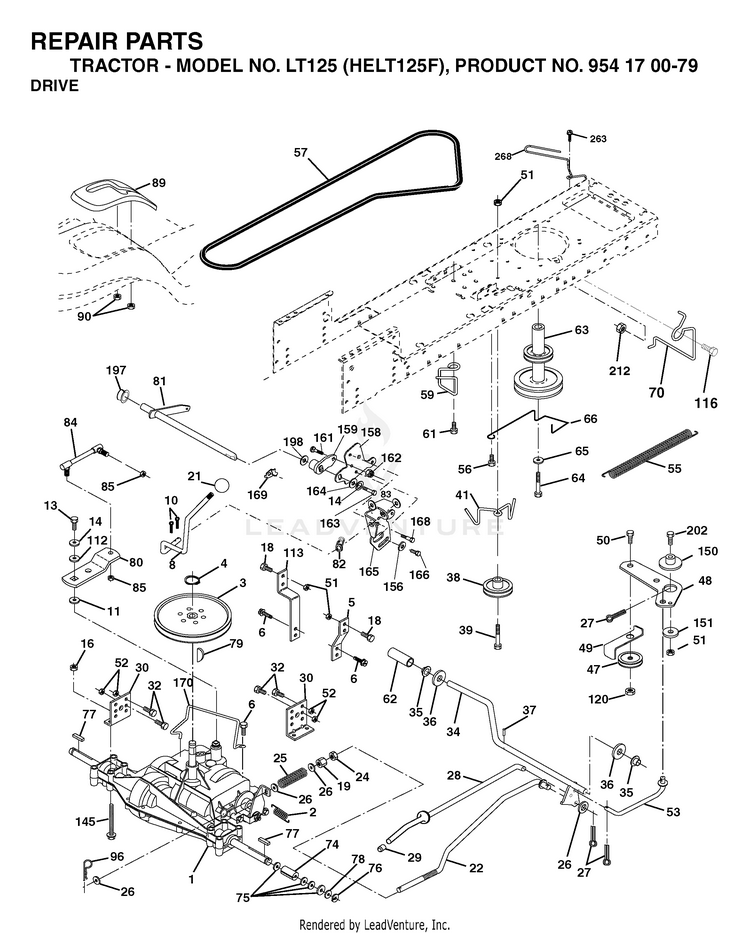

Husqvarna LT125 - HELT125F (2003-01) Riding Tractor

Model: LT125 - HELT125F (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
539 11 21-20
HCS 7/16-20 GD 8 SPEC HUS-539112120
...
539 99 05-50
Washers HUS-595316401
...
539 10 65-04
Washers HUS-596770301
...
539 99 03-33
LOCKWASHER 5/8 HUS-539990333
...
539 99 06-27
HCS 5/16C X 1 1/4 HUS-539990627
...
539 99 08-39
NUT 7/16C CENTERLOCK HUS-539990839
...
539 10 87-58
SPACER HUS-539108758
...
539 10 84-50
TOP DUST CAP HUS-539108450
...
539 11 07-36
Pins HUS-595935501
...
539 10 34-33
HCS 1/2C X 3 1/4 HUS-539103433
...
539 11 13-78
DECK W/DECALS 61" HUS HUS-539111378
...
539 10 87-60
SPINDLE 52/61 HUS-539112122
...
539 10 87-54
SHAFT SEAL HUS-539108754
...
539 97 69-98
GSPW Zerks HUS-596899901
...
539 10 94-94
61 BELT SHIELD ASM - LH HUS-539109494
...
539 10 13-31
GSPW NUTS HUS-596135601
...
539 99 05-17
GSPW Washers HUS-596433701
...
539 10 84-49
BOTTOM DUST CAP HUS-539108449
...
539 10 32-99
HCS 5/8F X 1 1/4 HUS-539103299
...
539 10 11-75
Bolts HUS-594944601
...
539 99 07-17
Nuts HUS-596583702
...
539 99 06-92
GSPH HUS-596134901
...
539 10 72-78
PULLEY, 61 HUS-539112125
...
539 97 69-79
GSPW Nuts HUS-596240901
...
539 10 32-95
IDLER BUSHING HUS-539103295
...
539 11 07-35
Springs HUS-596646001
...
539 10 32-57
IDLER PULLEY HUS-539103257
...
539 10 76-27
CAP-SLEEVE LT HUS-532105304
...
539 10 34-27
PIVOT BUSHING HUS-539103427
...
539 11 07-34
DISCHARGE CHUTE 61" HUS-539110734
...
539 10 22-43
Washers HUS-596437501
...
539 10 25-82
Nuts HUS-596577901
...
539 11 15-61
DECAL, TUNNEL RAM 8" HUS-539111561
...
539 99 05-82
Screws HUS-596583101
...
539 10 94-93
61 BELT SHIELD ASM - RH HUS-539109493
...
539 10 17-33
BLADE OEM 21" (61" DECK) HUS-539101733
...
539 10 51-92
DECK SPRING HUS-539105192
...
539 10 96-60
DRAW LATCH HUS-539109660
...
539 99 02-47
Washers HUS-596238901
...
539 99 03-65
Pins HUS-596029501
...
539 97 73-26
PLUG-VENTED HUS-539977326
...
539 10 26-12
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
539 10 33-03
Washers HUS-596770301
...
539 10 32-58
IDLER PULLEY (TALL) HUS-539103258
...
539 10 32-30
IDLER ARM HUS-539103230
...
539 10 96-93
Chains HUS-594722001
...
539 10 72-76
PULLEY 42-48 HUS-539112141
...
539 10 87-73
KIT HSG ASM 52/61 HUS-966956101
...
539 10 26-41
LIFT HUS-594722002
