Husqvarna LT125 - HELT125E (2002-03) Riding Tractor

Model: LT125 - HELT125E (2002-03)

Back To Assemblies

Save Part Not Listed?
product name

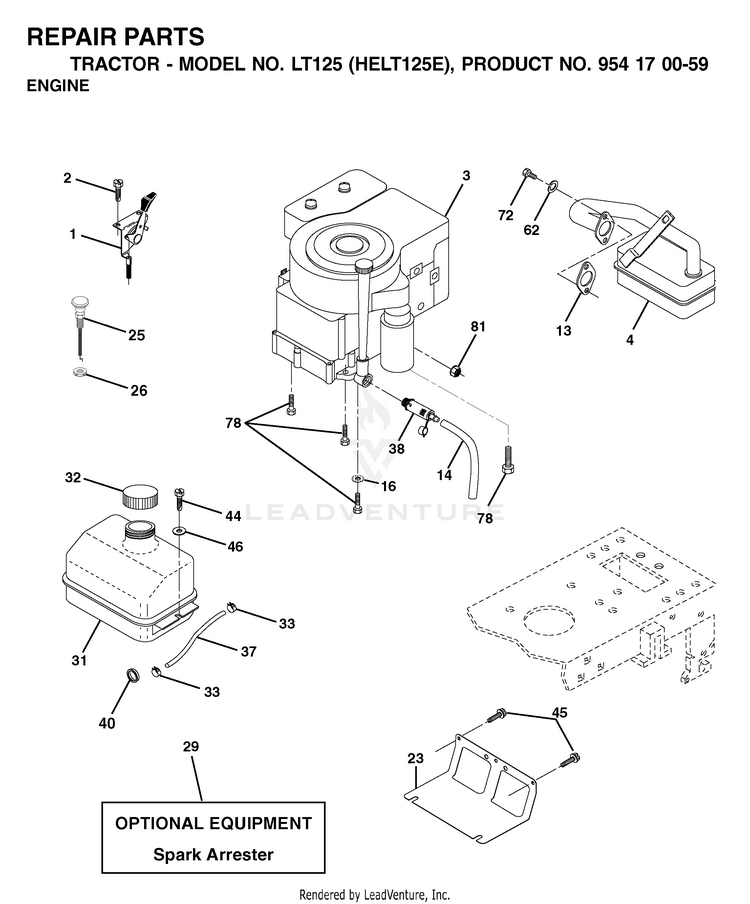

ENGINE & CUTTING EQUIPMENT

...
...
26
Nut Keps 3/8 - 24 UNF HUS-873920600
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
13
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
78
SCREW.3/8-16 HUS-817060620
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
16
Washers HUS-596238701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
4
MUFFLER.SINGLE.B&S.10-12HP HUS-532137348
...
72
Screws HUS-596134201
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
38
VALUE.OIL.DRAIN HUS-532428287
...
62
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
1
CONTROL.THROTTLE/CHOKE.BLACK HUS-532170551
...
33
HOSE CLAMP HUS-532123487
...
31
TANK.ASM.FUEL.FRONT.W/CAP HUS-532184900
...
25
NEEDS DESCRIPTION HUS-532180945
...
2
Screws HUS-596437001
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
46
Washers HUS-596135301
