Husqvarna LT125 - HELT125D (2002-06) Riding Tractor

Model: LT125 - HELT125D (2002-06)

Back To Assemblies

Save Part Not Listed?
product name

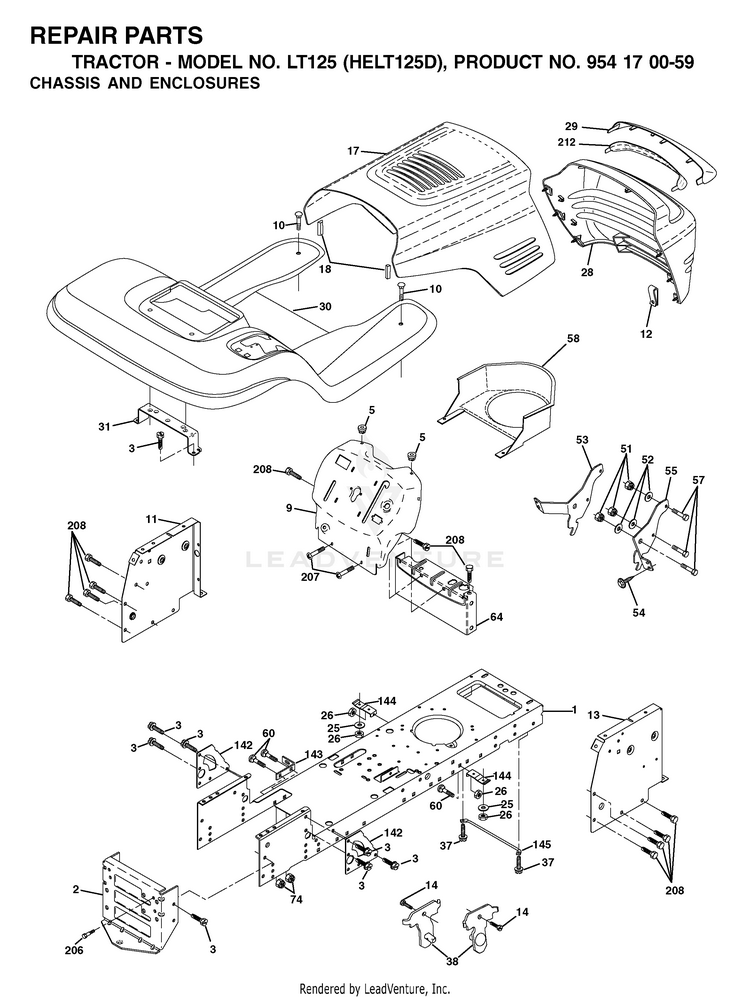

CHASSIS & ENCLOSURES

...
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
- -
PLUG BUTTON T HUS-532005479
...
64
DASH LOWER HUS-532154798
...
18
BUMPER HOOD T HUS-532126938
...
144
BRKT, FOOT REST HUS-532175582
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
2
DRAWBAR, 12GA HUS-532176554
...
74
Nuts HUS-596322601
...
17
HOOD.STEEL.LT.ORANGE HUS-532159639
...
9
DASH HUS-532168336
...
57
Screws HUS-596230901
...
3
SCREW, 3/8-16X3/4 HUS-817000612
...
10
Bolts HUS-596728201
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
13
PANEL DASH RH HUS-532181719
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
29
GRILLE.LENS HUS-532146654
...
14
Bolts HUS-596564001
...
55
BRACKET HUS-532144696
...
53
BRACKET.GRILLE.LH HUS-532144697
...
212
INSERT, LENS HUS-532174503
...
142
PLATE REINFORCEMENT HUS-532175702
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
52
Washers HUS-596135301
...
26
Nuts HUS-596322601
...
12
CLIP HUS-532145660
...
54
SCREW.HEX.WS.HD.8-18 X 7/8 HUS-532161464
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
30
FENDER W/OUT CUP HOLDER HUS-532192813
...
58
AIR DUCT P/L/LT HUS-532150127
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
37
Screws HUS-596030701
...
145
ROD.PIVOT.HOOD HUS-532409167
...
25
GSPH HUS-596134901
...
28
GRILLE/LENS ASM HUS-532179845
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
