Husqvarna LT125 - HELT125C (2002-01) Riding Tractor

Model: LT125 - HELT125C (2002-01)

Back To Assemblies

Save Part Not Listed?
product name

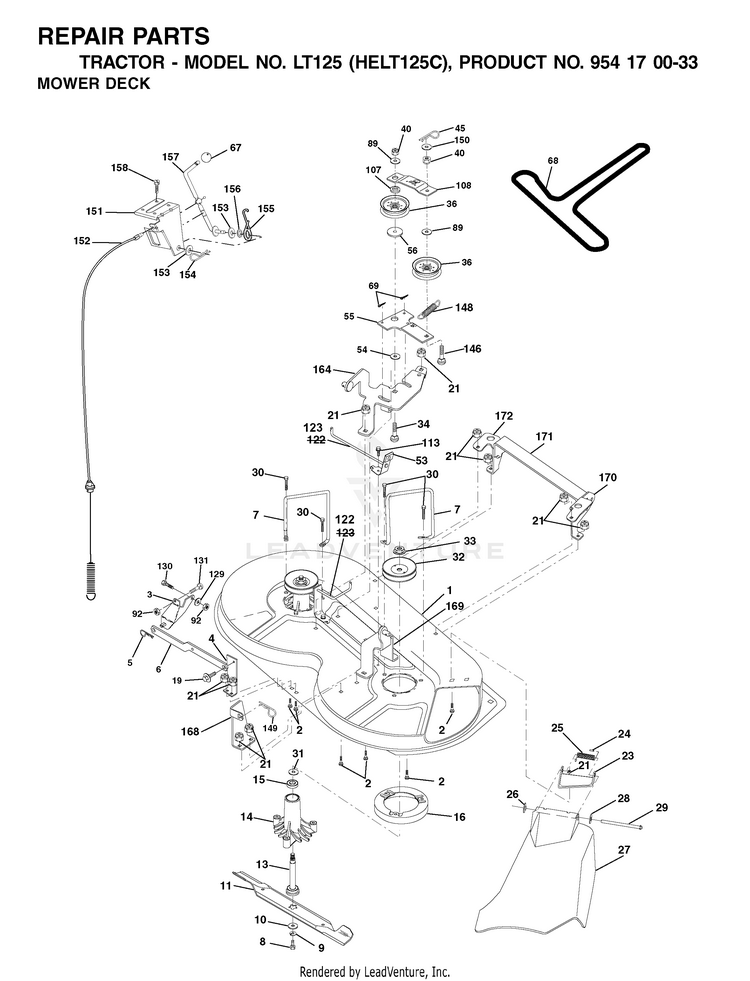

MOWER DECK / CUTTING DECK

...
...
45
RETAINER M HUS-532004497
...
92
Nuts HUS-596322601
...
130
Bolts HUS-596564401
...
40
Nuts HUS-596322601
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
54
WASHER HUS-532178515
...
164
NEEDS DESCRIPTION HUS-532174976
...
15
BEARING HUS-532110485
...
36
CLG HUS-597025001
...
5
RETAINER-SPRNG RB HUS-532124670
...
7
KEEPER LH HUS-532140608
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
170
NEEDS DESCRIPTION HUS-532172359
...
146
BOLT CARRIAGE IDLER HUS-532173443
...
157
ROD CLUTCH CABLE 3/8" HUS-532169669
...
148
IDLER RETURN SPRING HUS-532169022
...
55
SERVICE.KIT IDLER ARM HUS-531164901
...
2
GSPW Bolts HUS-595901601
...
172
NEEDS DESCRIPTION HUS-532172355
...
123
NEEDS DESCRIPTION HUS-532174504
...
171
BRACE.SUSP.FRONT.CRD/36.2006 HUS-583259301
...
151
BRACKET.CLUTCH.CABLE HUS-532169670
...
19
BOLT SHD 5/16-18 HUS-532132827
...
156
SPACER.CLUTCH.CABLE HUS-532169672
...
108
SERVICE KIT STIFFENER STIFFENE HUS-531150801
...
8
BLADE BOLT HUS-532850857
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
34
Bolts HUS-596136201
...
1
NEEDS DESCRIPTION HUS-532174595
...
169
NEEDS DESCRIPTION HUS-532174977
...
129
GSPH HUS-596134901
...
131
Bolts HUS-596728201
...
68
NEEDS DESCRIPTION HUS-532174978
...
- -
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
69
Pins HUS-596917601
...
23
BRACKET ASM DEFLECTOR HUS-532136631
...
89
Washers HUS-596140201
...
153
Washers HUS-596140201
...
158
Screws HUS-596437001
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
113
Screws HUS-596030701
...
155
SPRING RETENTION LEVER HUS-532169671
...
10
WASHER.BLADE HUS-532140296
...
53
SERVICE KIT BRAKE ASSEMBLY BRA HUS-531165101
...
154
SPRING RETAINER HUS-532169675
...
27
CONSOLE.STLT.5SP.BLK HUS-532176162
...
33
Nuts HUS-596134801
...
29
Rods HUS-593885101
...
9
Washers HUS-596238701
...
25
SPRING TORSION HUS-532123713
...
26
NUT PUSH M HUS-532110452
...
168
NEEDS DESCRIPTION HUS-532172377
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
21
Hardware HUS-596040501
...
152
NEEDS DESCRIPTION HUS-532176079
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
122
NEEDS DESCRIPTION HUS-532174505
...
- -
NEEDS DESCRIPTION HUS-532180876
...
13
KIT MANDREL W/NUT HUS-532137646
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
4
NEEDS DESCRIPTION HUS-532175654
...
11
BLADE, HI-LIFT 36" PREMIUM HUS-532138496
...
107
SPACER.IDLER.ARM HUS-532133502
...
150
Washers HUS-596204201
...
28
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
24
CAP-SLEEVE LT HUS-532105304
...
32
MANDREL PULLEY HUS-532173434
