Husqvarna LT125 - HE12536D (1998-12) Riding Tractor

Model: LT125 - HE12536D (1998-12)

Back To Assemblies

Save Part Not Listed?
product name

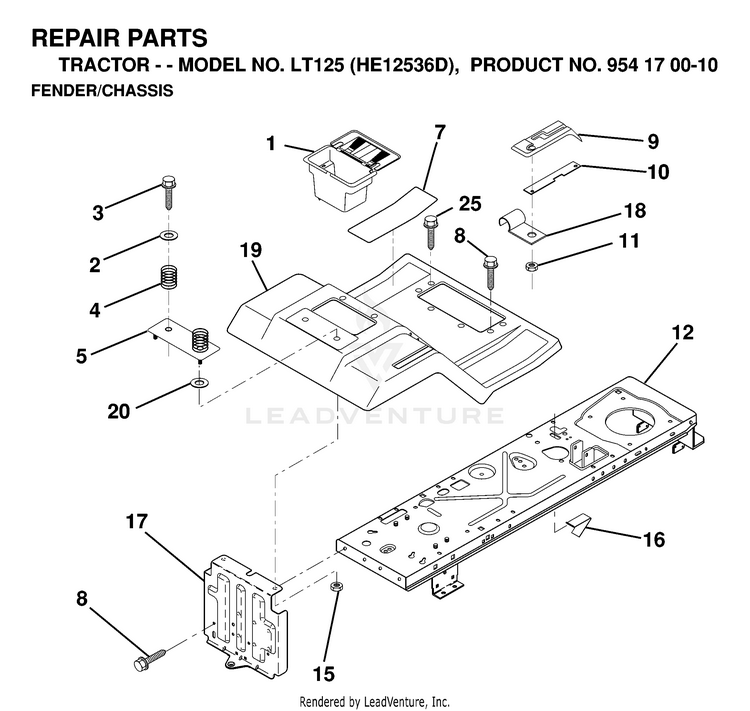

CHASSIS & ENCLOSURES

...
...
1
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
11
NUT.PUSH.3/16 HUS-532124346
...
12
FRAME HUS-532145190
...
16
KIT/CLUTCH BRAKE ACTUATOR HUS-532146613
...
20
Washers HUS-596135301
...
7
PAD FOOTREST HUS-532124144
...
15
Nut, Keps Blk Hex 1/4-20 UNC HUS-873640400
...
4
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
17
DRAWBAR HUS-532140782
...
19
FENDER/FOOTREST HUS-532141393
...
5
PLATE HUS-532127115
...
9
BRACKET HUS-532166601
...
18
CLIP,INSULATOR HUS-532126470
...
25
Screw Hex Wsh Thdroll 5/16-18 x 1 HUS-817190516
...
2
GSPH HUS-596134901
...
10
BAR, SHIFT LOCK HUS-532139783
