Husqvarna LT125 - HE12536C (1998-03) Riding Tractor

Model: LT125 - HE12536C (1998-03)

Back To Assemblies

Save Part Not Listed?
product name

MOWER DECK / CUTTING DECK

...
...
28
MANDREL PULLEY HUS-532173434
...
3
Nuts HUS-596322601
...
17
MOWER LINK STABILIZER HUS-532128508
...
6
PULLEY.IDLER.FLAT.MOWER.BLK.PT HUS-532121316
...
1
SPRING-MOWER CLUTCH HUS-532140064
...
48
KIT MANDREL W/NUT HUS-532137646
...
44
KEEPER LH HUS-532140608
...
22
Washers HUS-596238701
...
41
BELT HUS-532131264
...
47
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
16
BELT KEEPER HUS-532153298
...
14
Hardware HUS-596040501
...
62
WASHER FELT HUS-532153390
...
29
KIT.NUT.FLANGE HUS-532139729
...
49
WASHER HUS-532178515
...
21
WASHER.BLADE HUS-532140296
...
23
BLADE BOLT HUS-532850857
...
18
PIN GROOVE HUS-532128511
...
7
Bolts HUS-596136301
...
xx
DECK ASM SVCX 36" HI PERF HUS-532156866
...
5
IDLER BELT GUIDE HUS-532131251
...
32
SUPT,IDLER ARM HUS-532122051
...
13
GSPW Bolts HUS-595901601
...
12
BRKT LIFT REAR HUS-532127356
...
4
SERVICE KIT BRAKE ASSEMBLY BRA HUS-531165101
...
19
BRKT LINK STABILIIZER HUS-532127380
...
24
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
10
Bolts HUS-595901101
...
31
Screws HUS-596030701
...
37
SPRING TORSION HUS-532123713
...
27
DECK SVCX1 KIT MOWER.36.LR HUS-532174082
...
2
SPACER.RETAINER.MOWER HUS-532165723
...
40
NUT PUSH M HUS-532110452
...
39
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
43
SPRING RETAINER HUS-532003146
...
20
BLADE, HI-LIFT 36" PREMIUM HUS-532138496
...
42
Washers HUS-596040101
...
33
SHIELD.DEFL.MWR.36" HUS-532175029
...
45
BEARING HUS-532110485
...
30
BRACKET ASM DEFLECTOR HUS-532136631
...
xx
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
9
IDLER ARM ASSY HUS-532140092
...
38
CAP-SLEEVE LT HUS-532105304
...
8
GSPH HUS-596134901
...
36
Rods HUS-593885101
...
11
BRAKE ROD HUS-532130841
...
46
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
15
BRKT LIFT REAR LH HUS-532127357
...
25
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901

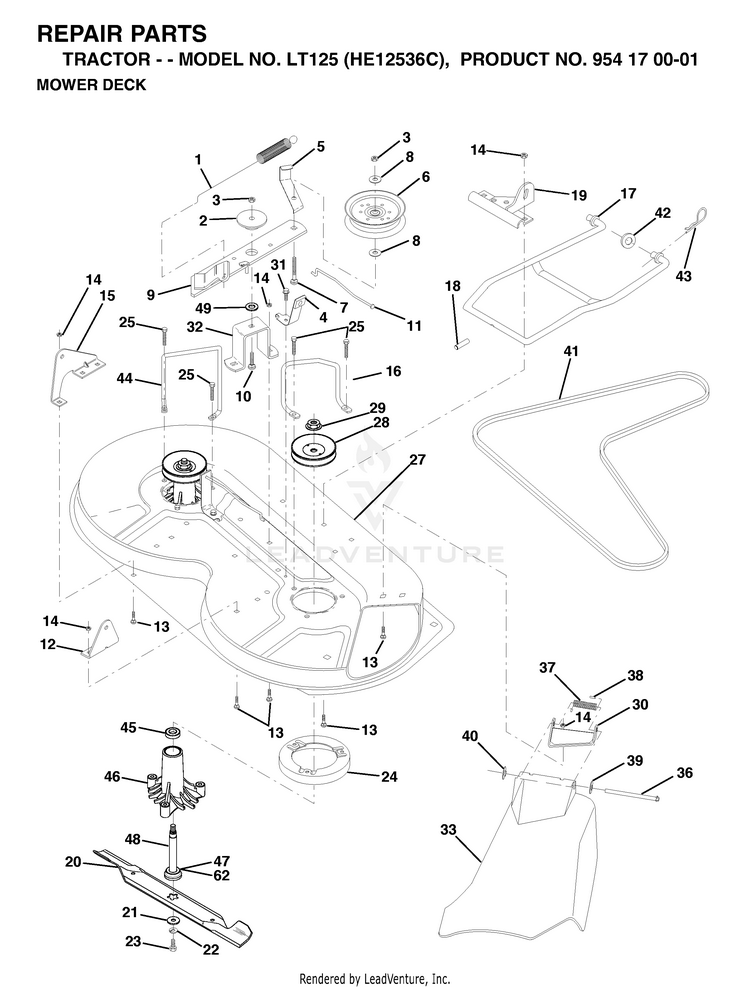

Schematic Image Zoomed
