product name

Husqvarna LT125 - HE12536C (1996-01) Riding Tractor

Model: LT125 - HE12536C (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

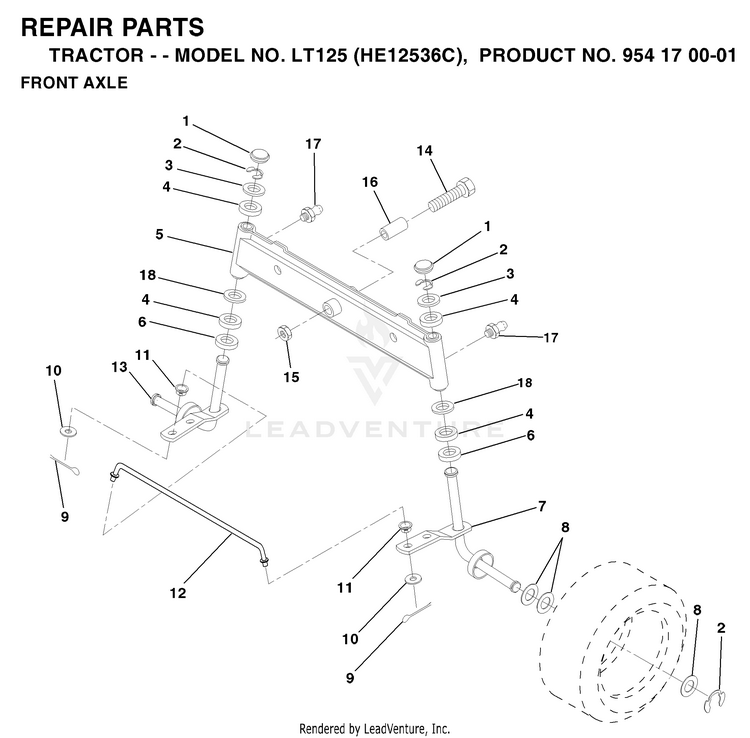

FRONT AXLE

...
...
12
ROD.TIE.WIRE.FORM HUS-532192757
...
7
SPINDLE HUS-532161826
...
13
SPINDLE.ASSEM.LH HUS-532161827
...
5
AXLE ASSY HUS-532142033
...
18
WASHER HUS-819272016
...
9
Pins HUS-596029501
...
14
Bolt, Hex Head 5/8-11 x 3-1/2 HUS-874011056
...
3
WASHER HUS-532121748
...
4
BEARING.STEERING.COLUMN HUS-532003366
...
8
WASHER HUS-532121749
...
6
WASHER THRUST HUS-532006266
...
17
FITTING.GREASE.TAPERED HUS-532183226
...
10
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
1
CAP.SPINDLE.BLACK HUS-532121232
...
11
BUSHING.DRAGLINK (2 2) HUS-532126847
...
16
KIT-AXLE HUS-532155134
...
2
RING CLIP HUS-812000029
...
15
LOCKNUT M HUS-583612401
