Husqvarna LT125 - HC12542C (1996-04) Riding Tractor

Model: LT125 - HC12542C (1996-04)

Back To Assemblies

Save Part Not Listed?
product name

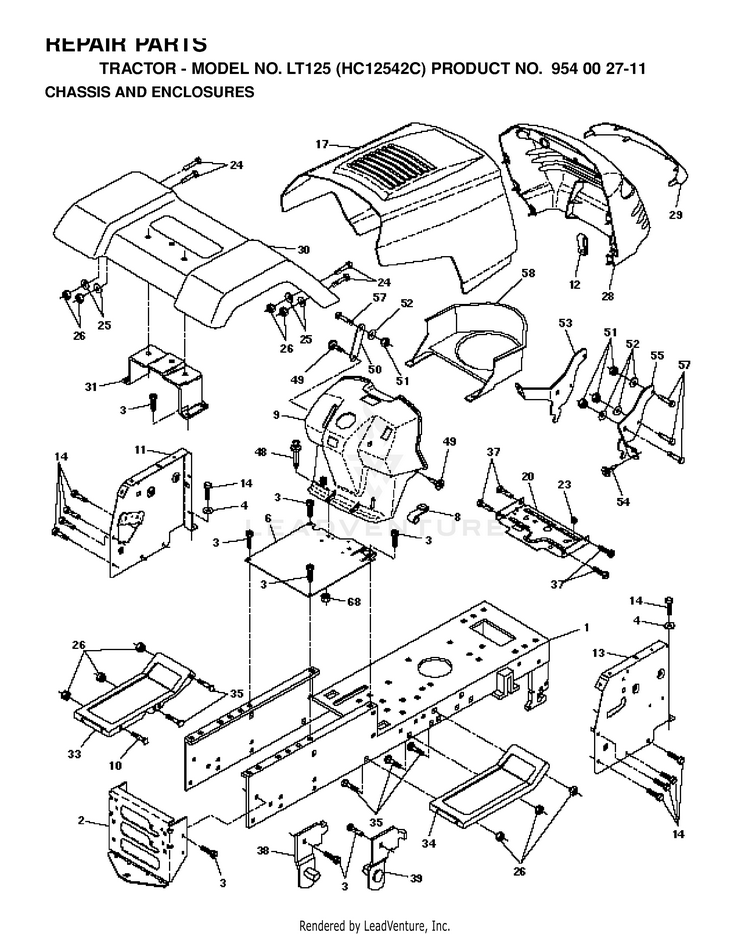

CHASSIS & ENCLOSURES

...
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
54
SCREW.HEX.WS.HD.8-18 X 7/8 HUS-532161464
...
11
Panel Pnt Dash Lh HUS-532140815
...
35
Bolts HUS-596136001
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
12
CLIP HUS-532145660
...
24
Bolts HUS-596564401
...
10
Bolts HUS-596728201
...
55
BRACKET HUS-532144696
...
26
Nuts HUS-596322601
...
xx
PLUG BUTTON T HUS-532005479
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
31
BRACKET FENDER HUS-532136619
...
38
BRACKET LH PIVOT HUS-532139886
...
xx
PLUG DOME HUS-532134014
...
52
Washers HUS-596135301
...
49
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
57
Screws HUS-596230901
...
58
AIR DUCT P/L/LT HUS-532150127
...
8
CLIP,INSULATOR HUS-532126471
...
28
GRILL/LENS ASM. HUS-532179101
...
6
SADDLE LT FENDER HUS-532145206
...
39
BRACKET RH PIVOT HUS-532139887
...
50
BRACE HUS-532142779
...
53
BRACKET.GRILLE.LH HUS-532144697
...
29
LENS HUS-532140273
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
34
FOOTREST LT/YT/GT RH HUS-532145243
...
4
Washer 13/32 X 3/4 X 16 Ga. HUS-819131216
...
33
FOOT REST LH HUS-532147203
...
37
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
48
RIVET PUSH HUS-532138096
...
30
FENDER HUS-532166886
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
25
GSPH HUS-596134901
...
14
Bolts HUS-596564001
...
13
DASH PANEL RH HUS-532140178
...
1
CHASSIS WELD 11GA.95 HUS-532145501
...
9
DASH HUS-532140072
...
17
HOOD HUS-532139394
