product name

Husqvarna LT120CR (1999 & Before) Tractor

Model: LT120CR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

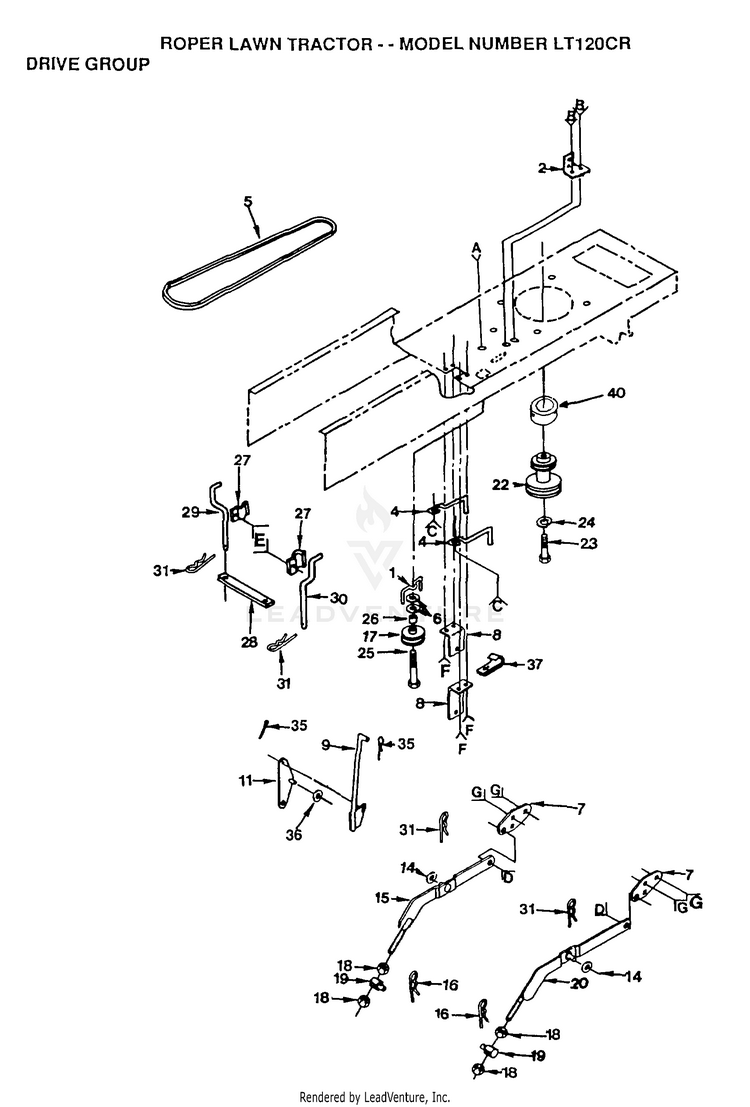

MAIN DRIVE FRAME

...
...
1
BELT KEEPER LT HUS-109070X
...
2
BRACKET LT HUS-108236X
...
4
"KEEPER,BLT ENG LT" HUS-105730X
...
5
SUB= 125907X HUS-120302X
...
6
WASHER HUS-19131312
...
7
"BRACKET, SUSPE T" HUS-105864X
...
8
"BRKT,BELLCRAN T" HUS-106444X
...
9
ROD ASSEM YT HUS-108451X
...
11
"T, BELLCRANK" HUS-109728X
...
14
WASHER T HUS-19171516
...
15
LH SUSP ARM ASM HUS-121599X
...
16
SPRING H HUS-9135R
...
17
SUB= 123674X HUS-4859J
...
18
NUT HUS-73220800
...
19
SUB= 130171 HUS-106308X
...
20
RH SUSP ARM ASM HUS-121598X
...
22
SUB= 137326 HUS-105731X
...
23
BOLT RER HUS-74770728
...
24
LOCKWASHER HUS-10040700
...
25
BOLT HUS-74760644
...
26
SPACER T HUS-4470J
...
27
CLAMP LT HUS-106190X
...
28
SUB= 123770X HUS-109370X
...
29
SUB= 123662X HUS-109368X
...
30
SUB= 123663X HUS-109369X
...
31
SPRING.RETAINER HUS-4921H
...
35
COTTER PIN HUS-76020412
...
36
WASHER HUS-19131410
...
37
INSUL CLIP T HUS-5320R
...
40
SPACER T HUS-6404J
