Husqvarna LT120CR (1999 & Before) Tractor

Model: LT120CR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

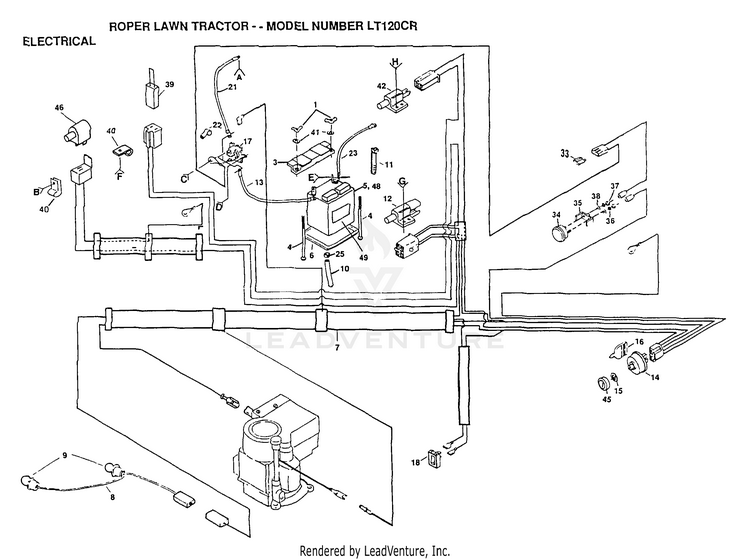

ELECTRICAL

...
...
1
SUB= 146525 HUS-73490400
...
3
SUB= 150109 HUS-102476X
...
4
BOLT HUS-72240460
...
5
SUB= 123899X HUS-121265X
...
6
"TRAY T, BATTERY" HUS-7603J
...
7
IGN HARNESS HUS-121293X
...
8
HARNESS T HUS-110859X
...
9
SUB= 4152J HUS-7662J
...
10
SUB= 7697J HUS-7604J
...
11
WIRE TIE HUS-7192 J
...
12
SWITCH INTERLOCKT HUS-109553X
...
13
CABLE-BATTERY T HUS-4206J
...
14
SUB= STD365402 HUS-4406R
...
15
SUB= 124211X HUS-109788X
...
16
KEY MOLDED HUS-109434X
...
17
SUB= 146154 HUS-109081X
...
18
SWITCH LT HUS-110712X
...
21
"CABLE T, BATTERY" HUS-4799J
...
22
SUB= 154336 HUS-719J
...
23
CABLE T HUS-4207J
...
25
HOSE CLAMP T HUS-109596X
...
33
FUSE HYT HUS-108824X
...
34
AMMETER T HUS-9433R
...
35
SUB= 532131708 HUS-6009J
...
36
SUB= 10071000 HUS-10101000
...
37
NUT HUS-73911000
...
38
WASHER HUS-19070818
...
39
SUB= 141940 HUS-102501X
...
40
CLIPT HUS-235R
...
41
LOCKWASHER GT HUS-11030400
...
42
SWITCH-INTER. GT HUS-104445X
...
45
SUB= 147626 HUS-109787X
...
46
SWITCH SEAT HUS-121305X
...
48
"CAP,BATTERY " HUS-121264X
...
49
DECAL HUS-121549X
...
xx
OWNER'S MANUAL - ENGLISH HUS-121256XOE
...
xx
OWNER'S MANUAL - FRENCH HUS-121257XOF
...
xx
SHEET INSTR LT HUS-101539X
...
xx
SHEET-INSTRUCTION (FRENCH) HUS-101572X
