Husqvarna LT110AR (1999 & Before) Tractor

Model: LT110AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

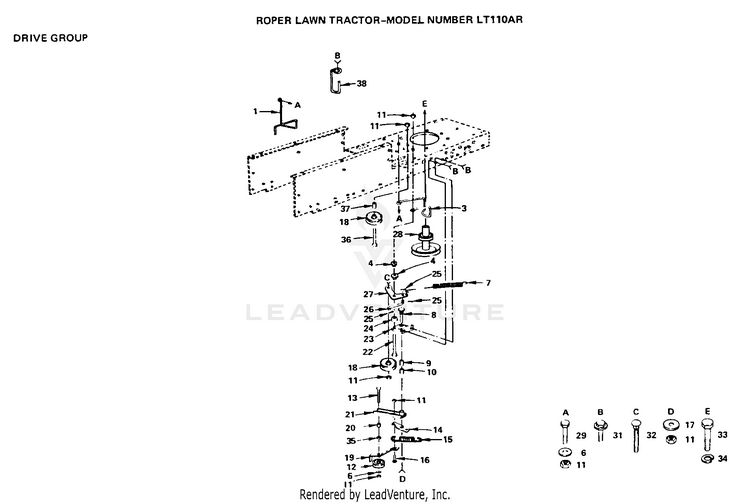

DRIVE GROUP

...
...
1
GUIDE, BELT - ENGINE PULLEY HUS-102485X
...
3
GUIDE BELT PLY LT HUS-100505C
...
4
NLA HUS-102975X
...
6
WASHER HUS-19131312
...
7
SPRING CLUTCH LT HUS-100640L
...
8
BOLT HUS-72140620
...
9
SUB= 674A308 HUS-7835J
...
10
SUB= 674A308 HUS-7834J
...
11
SUB= 73690600 HUS-73680600
...
12
IDLER.FLAT.GTV HUS-102932X
...
13
BOLT HUS-74930644
...
14
NLA HUS-100837L
...
15
SPRING EXT LT HUS-101383X
...
16
BOLT HUS-72240606
...
17
WASHER HUS-19132012
...
18
IDLER-FLAT LT HUS-3926J
...
19
NLA HUS-100681K
...
20
SUB= 4470J HUS-100682K
...
21
ARM IDLER ASSY LT HUS-100679L
...
22
BOLT HUS-74760656
...
23
BRACKET SUPT LT HUS-100677L
...
24
SPACER LT HUS-101278K
...
25
COTTER PIN HUS-76020412
...
26
LINK BELLCRANK HUS-100642K
...
27
NLA HUS-100502L
...
28
SUB= 136006 HUS-100613N
...
29
BOLT HUS-74760616
...
31
SCREW HUS-17490612
...
32
BOLT HUS-72140612
...
33
SUB= 71130720 HUS-74770720
...
34
LOCKWASHER HUS-10040700
...
35
NUT.HEX.3/8-16UNC HUS-73220600
...
36
BOLT HUS-74760644
...
37
SPACER SPLIT LTV HUS-101279K
...
38
SUB= 140312 HUS-104777X
