Husqvarna LT 4140 H (E4014-040) (1994-01) Ride Mower

Model: LT 4140 H (E4014-040) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

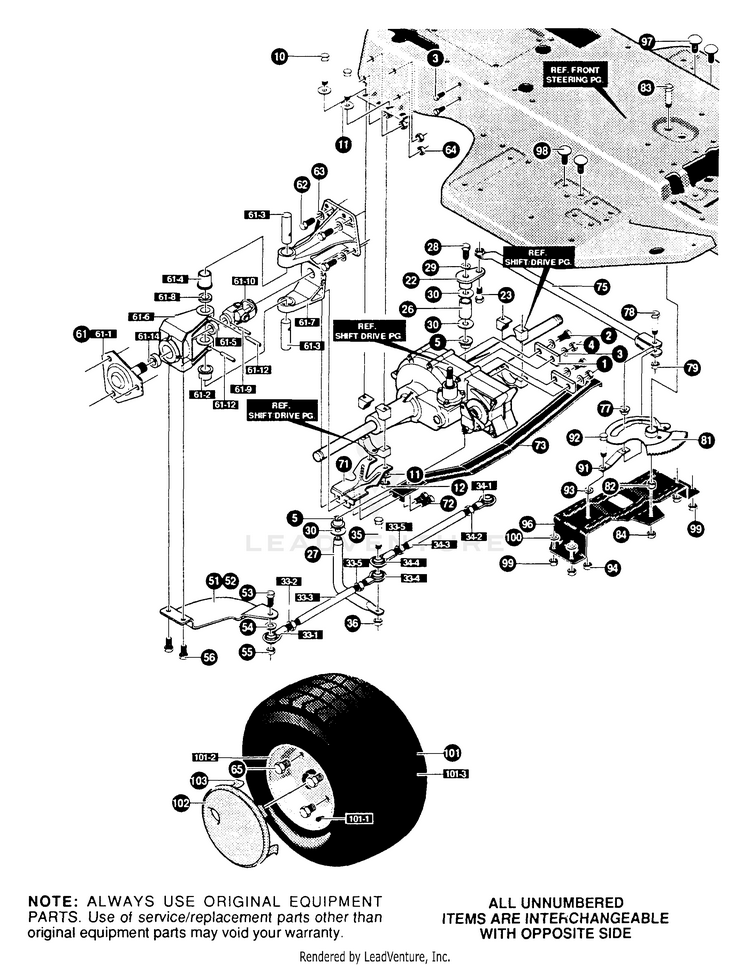

Drive/Steer

...
...
1
BRACKET, REAR PIVIOT HYDRO HUS-314511
...
2
SCREW, 1/4-20X .75 WAHHTAP HUS-44811
...
3
WASHER, REGSPTLK .263X.49X.07 HUS-120380
...
4
NUT 1/4-20 REGHEX HUS-120375
...
5
BEARING SPINDLE FR W/HOLE HUS-302303
...
10
SCREW, 5/16-18X2.50 HHC HUS-180091
...
11
WASHER, FLAT .344X.69X.065 HUS-120393
...
12
NUT, 5/16-18 HWDFLCTRLK HUS-44108
...
22
PIVOT, STEERING HUS-308719
...
23
BOLT, .562X .340 HHSH 3/8-24 HUS-12319
...
26
SPACER, STEERING SHAFT HYDRO HUS-313641
...
27
SHAFT, STEERING PIVOT HYDRO HUS-313649
...
28
SCREW, 5/16-24X1.00 HHC HUS-421051
...
29
WASHER, FLAT .333X.87X.119 HUS-45602
...
30
WASHER, FLAT .765X1.19X.048 HUS-25177
...
33
TIE ROD, ASSY RH EUR04WS&LFHYDR HUS-323636
...
33-1
BALL JOINT LH 3/8-24 HUS-308384
...
33-2
NUT, 3/8-24 REGHEXJAM HUS-124925
...
33-3
ROD, TIE 1/2"D X 6.75LG HUS-313642
...
33-4
BALL JOINT, RH 3/8-24 HUS-304260
...
33-5
NUT, 3/8-24 LH THD REGHJAM HUS-308399
...
34
TIE ROD, ASSY LH EURO 4WS&LFHYDR HUS-323637
...
34-1
BALL JOINT LH 3/8-24 HUS-308384
...
34-2
NUT, 3/8-24 REGHEXJAM HUS-124925
...
34-3
ROD, TIE 1/2"D X 10.91 LG ZINC HUS-313643
...
34-4
BALL JOINT, RH 3/8-24 HUS-304260
...
34-5
NUT, 3/8-24 LH THD REGHJAM HUS-308399
...
35
SCREW, 3/8-24X1.75 HHC HUS-181646
...
36
NUT 3/8-24 HXCTRLK HUS-412349
...
51
ARM REAR WHL STR (FER) R.H HUS-304120853
...
52
ARM, REAR WHEEL STEER L.H HUS-304121853
...
53
SCREW, 3/8-24X1.25 HHC HUS-181639
...
54
WASHER, REGSPTLK .393X.68X.10 HUS-120382
...
55
NUT, 3/8-24 HXCTRLK HUS-412349
...
56
SCREW, 3/8-16X1.00 WAHHTAP BLK HUS-47792
...
61
U-JOINT, 4-WS HEAVY DUTY HUS-323736
...
61-1
HUB ASSEMBLY HEAVY HUS-315264
...
61-2
BEARING, FLSH .752 ID X .937OD X .75 HUS-12288
...
61-3
PIN, STEERING HINGE HUS-12289
...
61-4
BEARING, FLSH HUS-12321
...
61-5
BEARING BALL 6203-2AA-3/4 HUS-12325
...
61-6
BRACKET, STR PIVOT 6204 BEARING HUS-315267
...
61-7
BRACKET, STR PIVOT HUS-12466
...
61-8
WASHER, FLAT .765 X 1.25 X .042 HUS-21682
...
61-9
PIN, GROOVED .250 DIA X 1.50LG HUS-36311
...
61-10
U-JOINT ASSEMBLY W/ZERK (LONG) HUS-320531
...
61-12
PIN SPRING .250 DIA X 1.50LG HVPL HUS-456722
...
61-14
BEARING, BALL 6204-2AA-7/8 HUS-315268
...
62
SCREW 5/16-18X1.00 HHC HUS-180079
...
63
WASHER, FLAT .344X.69X.065 HUS-120393
...
64
NUT 5/16-18 REGHEXCTRLK HUS-1498
...
65
SCREW, 1/2-20X .50 HHC HUS-181683
...
71
BRKT X-AXLE MTG 4WS HYDRO HUS-313645853
...
72
SCREW, 5/16-18X.75 WAHHTAP HUS-35498
...
73
BRACKET HYDRO 4WS SUPPORT HUS-322959853
...
75
ROD R WHL STR 4WS (HYDRO) HUS-313639
...
77
CAM YOKE ROLLER HUS-304116
...
78
BOLT, .625 X1.175HHSH HUS-304122
...
79
NUT, 1/2-20 REGHXCTRLK HUS-274654
...
81
ASSY SECTOR GEAR 4WS HUS-302877
...
82
BRNG SLEV IDX ODX HUS-302878
...
83
SCREW 1/2-20X2.50 HHC HUS-181709
...
84
NUT, 1/2-20 REGHXCTRLK HUS-274654
...
91
FOLLOWER, ROLLER HUS-302594
...
92
BOLT .265X .800 HHSH 3/8-24 HUS-302588
...
93
WASHER, FLAT .375X.88X.082 HUS-446363
...
94
NUT, 3/8-24 HXCTRLK HUS-412349
...
96
PLATE, PIVOT STEERING EURO HUS-302583853
...
97
SCREW, 5/16-18X.50 WAHHTAP HUS-35497
...
98
SCREW, 5/16-18X.75 WAHHTAP HUS-35498
...
99
NUT, 5/16-18 REGHEXCTRLK HUS-1498
...
100
WASHER, FLAT .375X.88X.082 HUS-446363
...
101
TIRE & RIM,20X10.00-8 WHITE HUS-316665
...
101-1
VALVE STEM HUS-24167
...
101-2
RIM, WHEEL HUS-316667
...
101-3
TIRE 20X10X8 HUS-313654
...
102
HUB CAP, 8" EURO GREY HUS-304441
...
103
CLIP,HUBCAP TINN #C25467-017-4 HUS-306669
