Husqvarna LT 4140 H (E4014-040) (1994-01) Ride Mower

Model: LT 4140 H (E4014-040) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

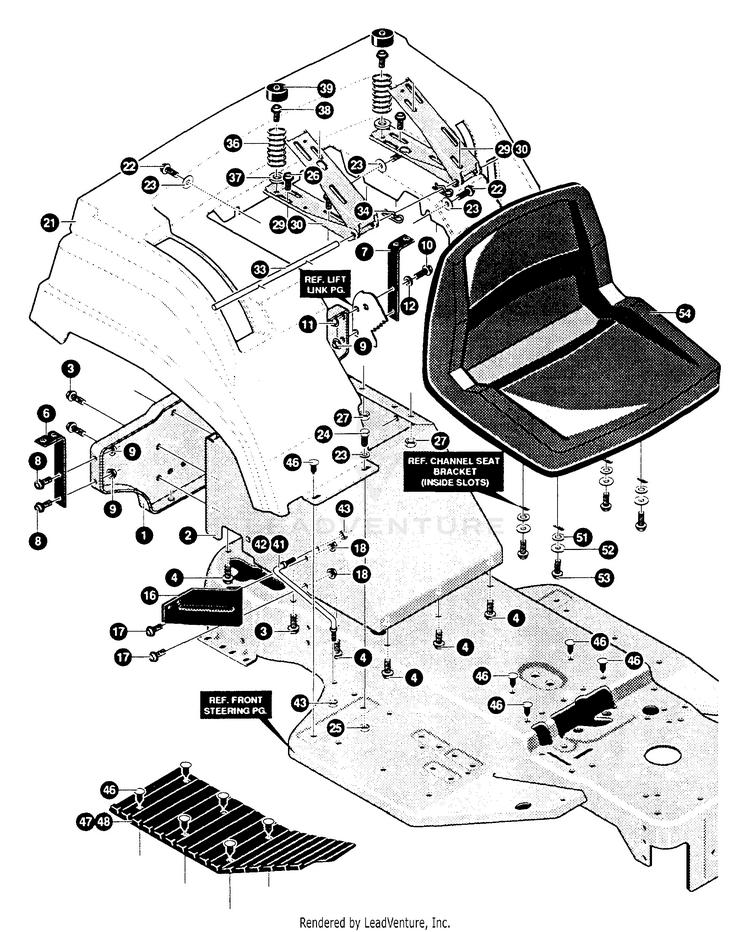

Chassis/Seat/Rear Fender

...
...
1
SEAT SUPPORT ELECTRIC LIFT HUS-322068830
...
2
SUPT FENDER & SEAT ELECT/LIFT HUS-322069830
...
3
SCREW, 5/16-18 X .75 WAHHTAP HUS-35498
...
4
SCREW, 5/16-18 X .50 WAHHTAP HUS-35497
...
6
SUPPORT FENDER RIGHT HUS-306399
...
7
SUPPORT FENDER LEFT HUS-306397
...
8
SCREW, 5/16-18 X .75WDFLLK HUS-56030
...
9
NUT, 5/16-18 HXWDFLLK HUS-55273
...
10
SCREW, 1/4-20 X .75 HHC HUS-180020
...
11
NUT, 1/4-20 WDFLWHIZ-LK HUS-51335
...
12
WASHER, FLAT .250 X .56 X .049 HUS-120385
...
16
SUPPORT, SHIFT PLATE HUS-305381
...
17
SCREW, 5/16-18 X .75WDFLLK HUS-56030
...
18
NUT, 5/16-18 HXWDFLLK HUS-55273
...
21
FENDER, EURO F-10 GT MOLD GREY HUS-310576
...
22
SCREW, 1/4-20 X .75 WAHHTAP HUS-44811
...
23
WASHER, FLAT .281 X 1.00 X .063PL HUS-1084
...
24
SCREW, 1/4-20 X .75 HHC HUS-180020
...
25
NUT, 1/4-20 REGHEXCTRLK HUS-1502
...
26
SCREW, 5/16-18 HXWDFLLK HUS-56030
...
27
NUT 5/16-18 REGHEXCTRLK HUS-1498
...
29
CHANNEL SEAT RH HUS-302897830
...
30
CHANNEL SEAT LH HUS-305424830
...
33
ROD SEAT SUPPORT BRZN HUS-304481
...
34
PIN, HAIR .072 DIA X 1.13LG HUS-36368
...
36
SPRING, SEAT 1.50OD X 2.25LG HUS-305520
...
37
WASHER, FLAT .344 X .69 X .065 HUS-120393
...
38
SCREW, 5/16-18 X .75 WAHHTAP HUS-35498
...
39
COVER, SEAT SPRING 1.5IDX1.0LG HUS-56907
...
41
SUPPORT, FOOTREST STIFNR RH ZPL HUS-319388
...
42
SUPPORT, FOOTREST STIFNR LH ZPL HUS-319387
...
43
NUT 5/16-18 REGHEXCTRLK HUS-1498
...
46
FASTENER, RATCHET BLACK HUS-309235
...
47
FOOT PAD, ASSYRH ERO W/ADH HUS-314888
...
48
FOOT PAD, ASSYLH ERO W/ADH HUS-314889
...
51
WASHER, FLAT .344 X .69 X .065 HUS-120393
...
52
WASHER, HVSPTLK .328 X .60 X .09 HUS-120638
...
53
SCREW, 5/16-18 X .75 HHC HUS-180077
...
54
SEAT, W/SW HOLE HUS-310384
