Husqvarna LT 4140 H (E4014-040) (1994-01) Ride Mower

Model: LT 4140 H (E4014-040) (1994-01)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
14-16HP VANGUARD (SEE ENGINE MANUAL) HUS-~ENGINE
...
2
SCREW, 3/8-16X1.25 WAHHTAPBLKP HUS-50947
...
3
WASHER, EXLK .384X.69X.04 HUS-138489
...
4
NIPPLE 3/8-18 NPT X 4" ZINC HUS-307174
...
6
CAP PIPE 3/8-18 NPT ZN PL HUS-47828
...
8
TUBING, .25X.50X BULK GAS LINE HUS-47452
...
10
REGULATOR, VOLTAGE BS W/O SENSOR HUS-315599
...
16
SCREW, #8-32X.38 HHWATAP HUS-35287
...
17
MUFFLR 14/18 TWIN NLSN22785C HUS-305553
...
18
EXHAUST TUBE 15HP RH B&S VANG HUS-305554
...
19
DEFLECTOR SIDE OUT (BS222573) HUS-56472
...
20
EXHAUST TUBE 15HP LH B&S VANG HUS-305555
...
22
BRACKET, TRANSAXLE HUS-9796
...
23
SCREW, 5/16-18X.50 WAHHTAP HUS-35497
...
24
SCREW, 1/4-20X.75 WAHHTAP HUS-44811
...
25
BRACKET, MUFFLER HUS-304709853
...
26
BOLT, 5/16-18X.63 CARRLN HUS-57072
...
27
PUSHNUT, 5/16 BOLT RETAINER HUS-309436
...
28
SHIELD, MUFFLER HEAT TWIN HUS-320922853
...
29
NUT 5/16-18 HXWDFLLK HUS-55273
...
31
OIL SENSOR, B&S TWIN CYL HUS-314797
...
33
RETAINER .31IDX.62X.03 WERE HUS-57569
...
41
KNOB, THROTTLE CTL MOLD HUS-304439
...
42
THROTTLE CONTROL ERO 18 TWIN HUS-307362
...
43
SCREW, 10-24X.63PHPNMA HUS-320553
...
44
NUT #10-24 HXHDNYLK HUS-308459
...
45
SCREW, #8-32X.38 PHPNMA HUS-159585
...
46
NUT, #8-32 REGHEX HUS-120622
...
57
HEAT SHIELD V/G LT EURO HUS-321306853
...
58
SCREW, 10-16X.50 DRILLTITE HUS-57366

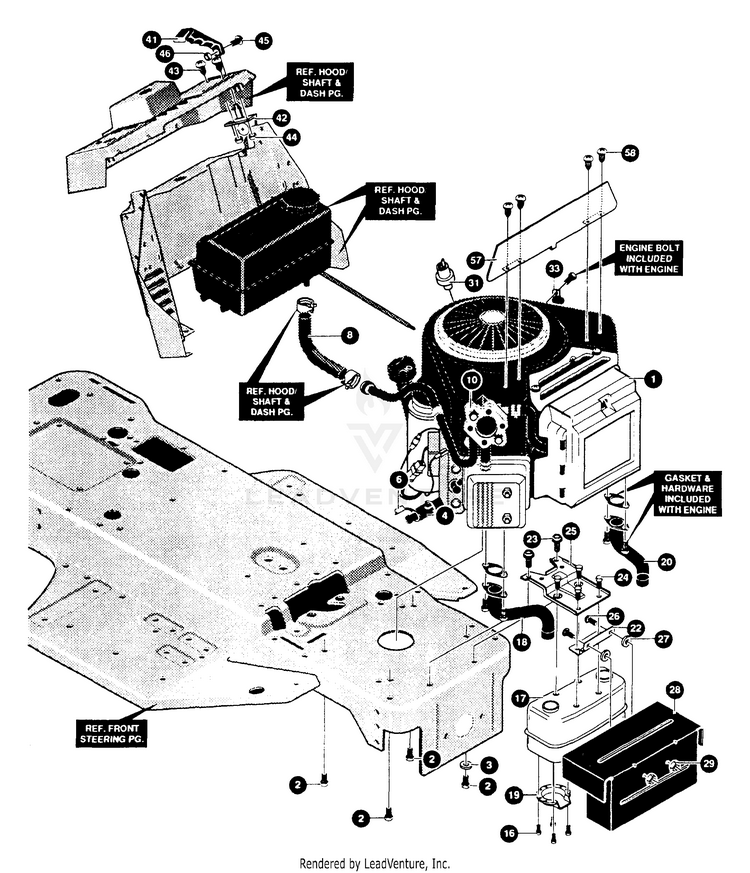

Schematic Image Zoomed
